Expansion Valve: Locations


TXV:

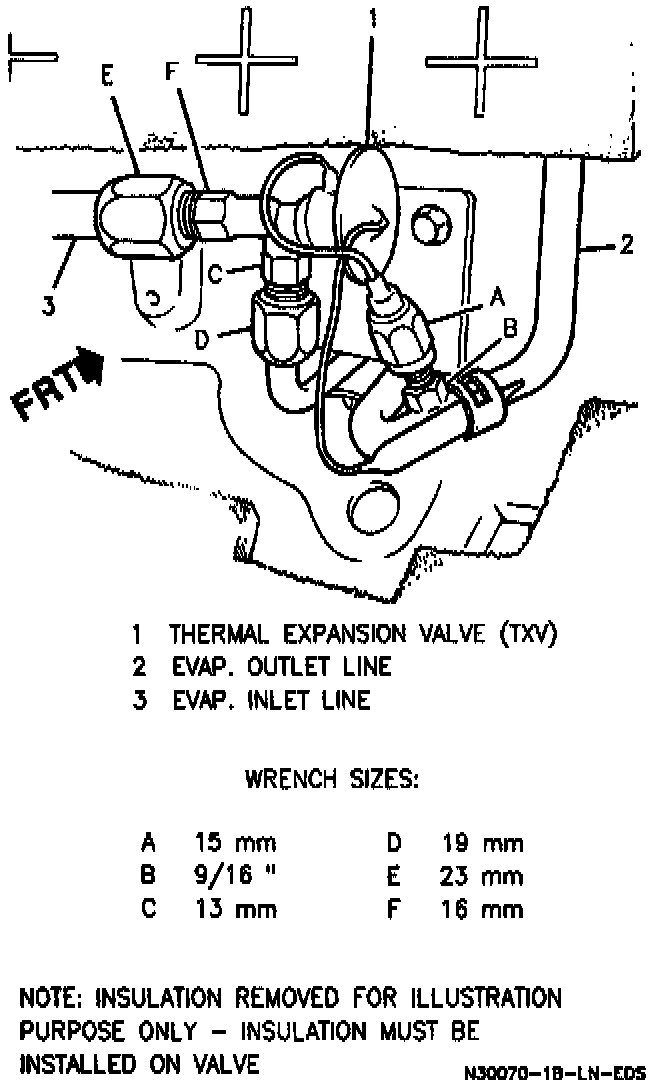

The Thermal Expansion Valve is located under RH side of I/P, at evaporator inlet.
