Instrument Cluster Replacement

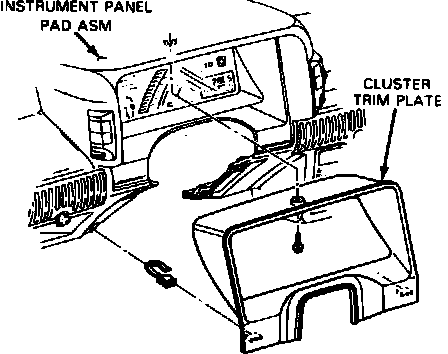

Fig. 7 Instrument Cluster Removal. 1989-90 Beretta Models:

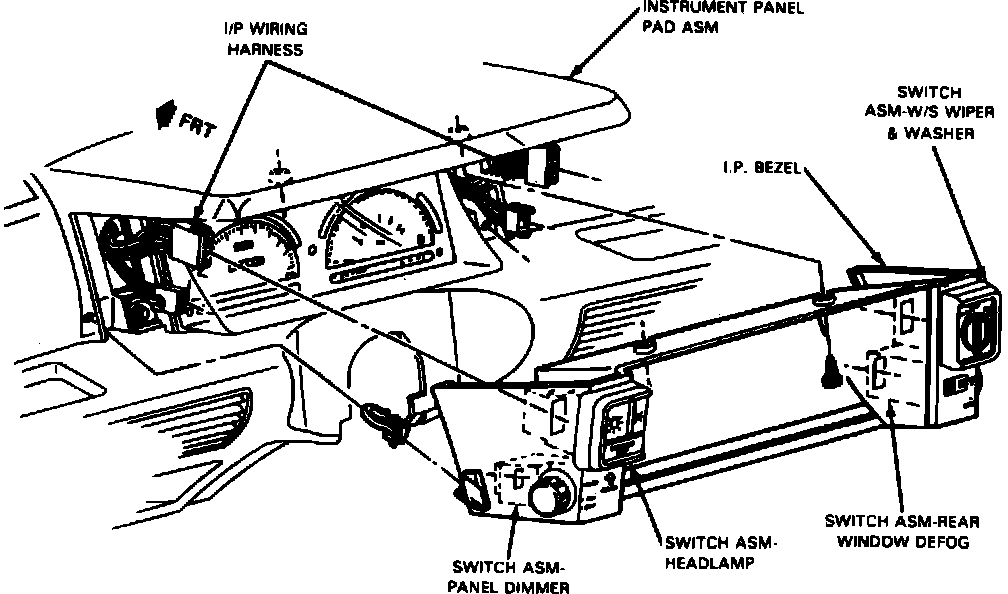

Fig. 8 Instrument Cluster Removal. 1989-90 Corsica Models:

Fig. 9 Instrument Cluster Removal. 1991-92 Models:

On models with airbag, Disarm airbag as outlined in MAINTENANCE PROCEDURES/AIRBAG DEACTIVATION. Failure to do so may result in accidental deployment of airbag, possibly causing personal injury. After all work has been completed, rearm airbag as outlined in MAINTENANCE PROCEDURES/AIRBAG ACTIVATION.
Refer to Figs. 7 through 9 for instrument cluster replacement procedures.
