Home >> Chevrolet >> 1991 >> Corsica V6-191 3.1L >> Repair and Diagnosis >> Wiper and Washer Systems >> Diagrams >> Electrical Diagrams >> With Pulse - CD4

With Pulse - CD4

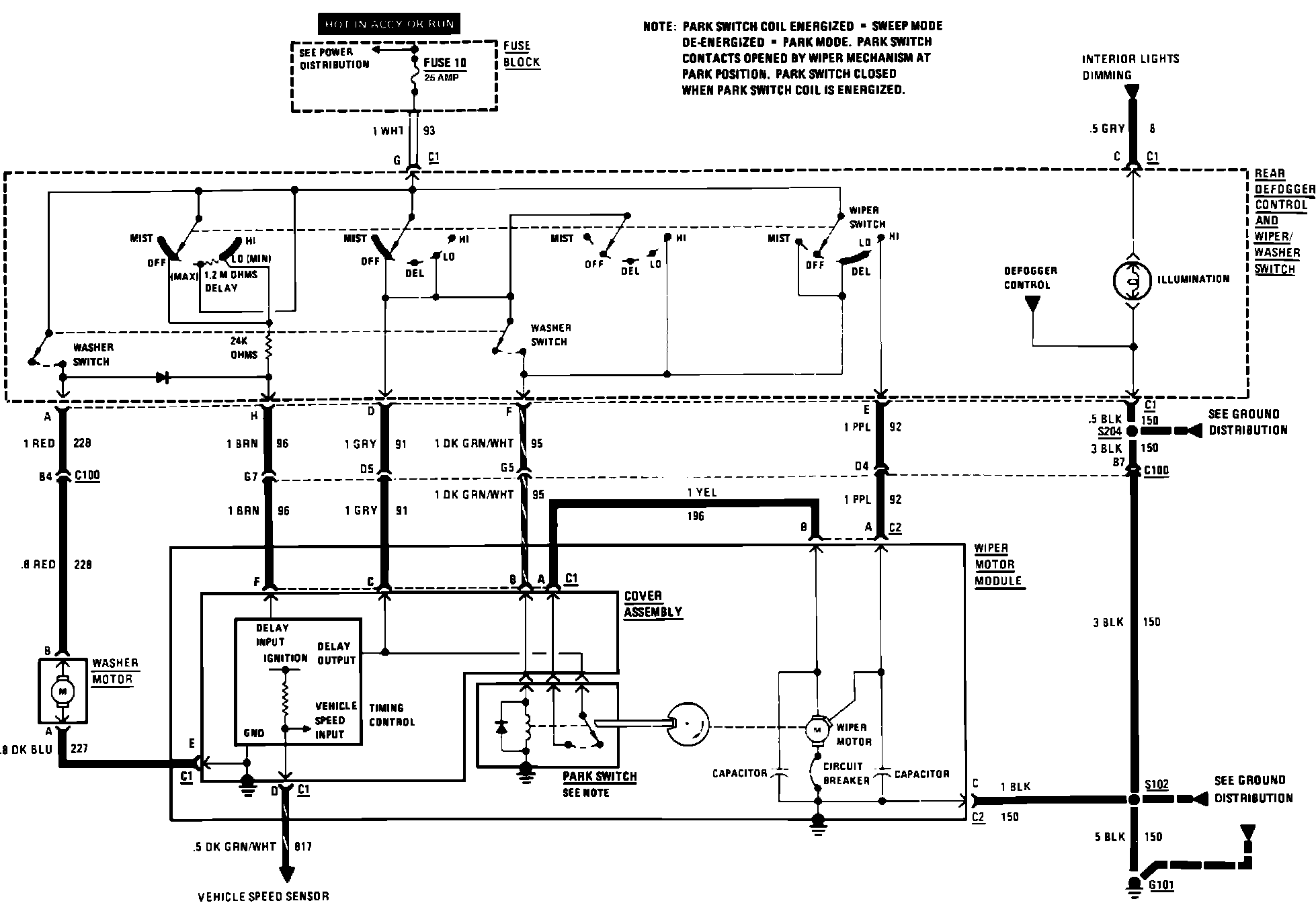

Wiper/Washer: Pulse,CD4:
