Home >> Chevrolet >> 1991 >> Corvette V8-350 5.7L DOHC VIN J MFI >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Antilock Brakes / Traction Control Systems >> Electronic Brake Control Module

Electronic Brake Control Module

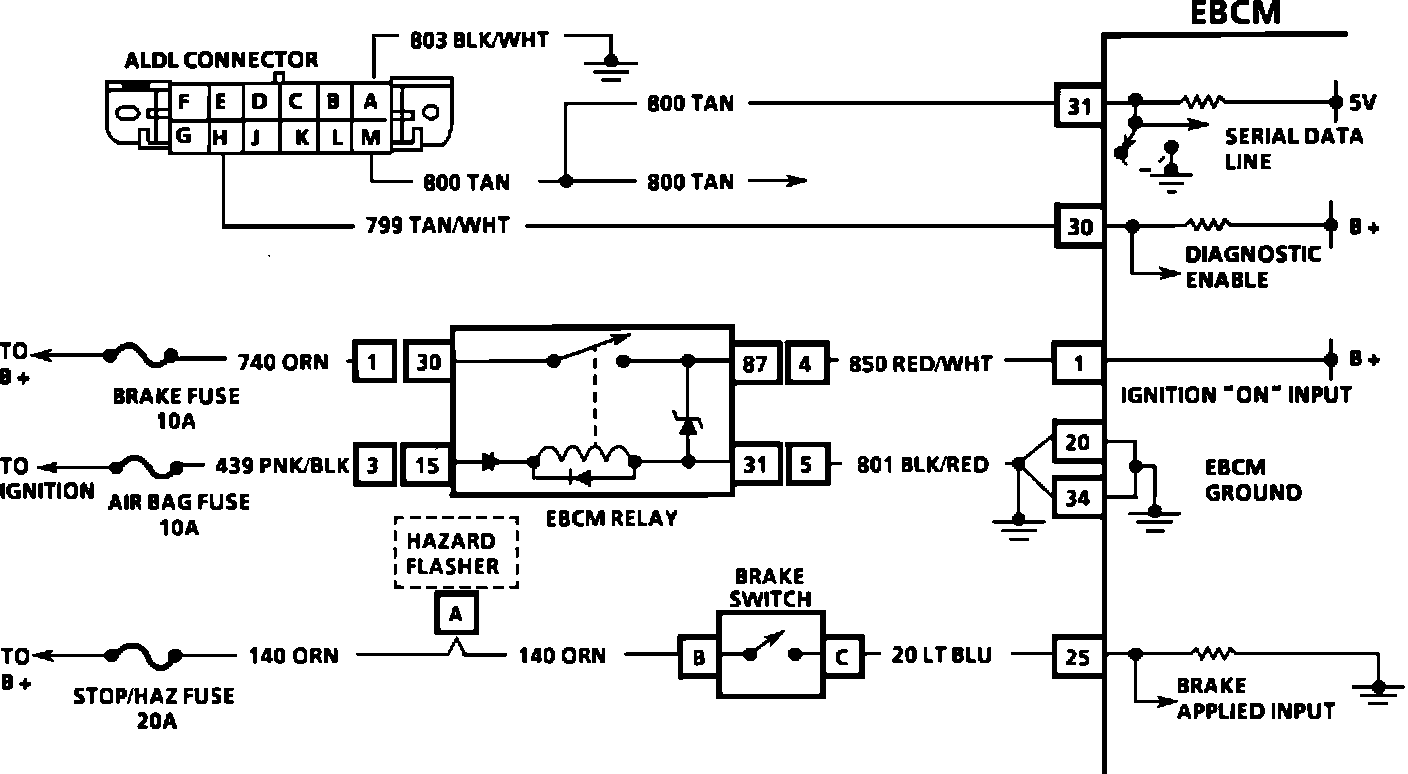

Fig. 17 ABS System Wiring Circuit (Part 1 Of 3). 1991:

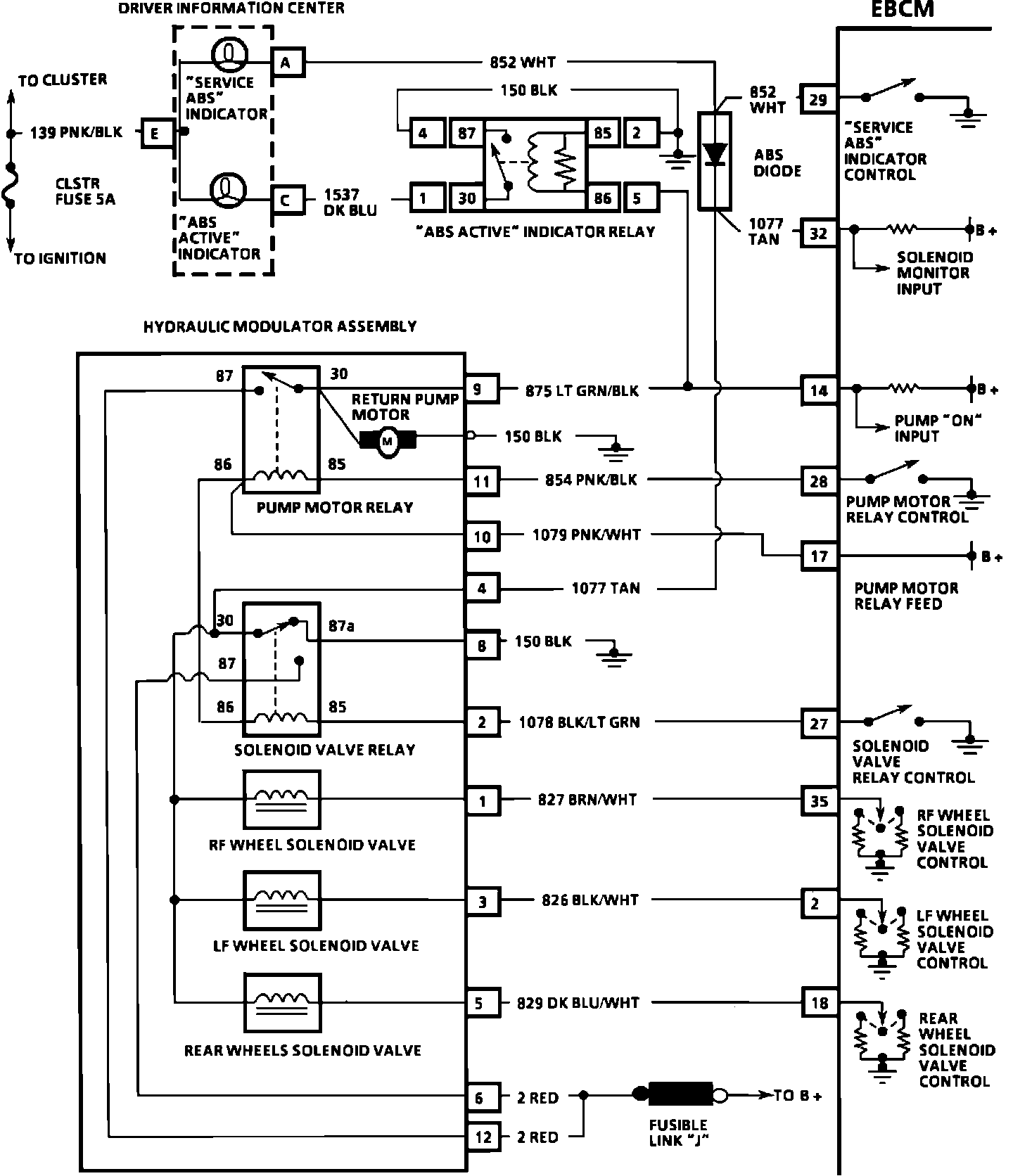

Fig. 17 ABS System Wiring Circuit (Part 2 Of 3). 1991:

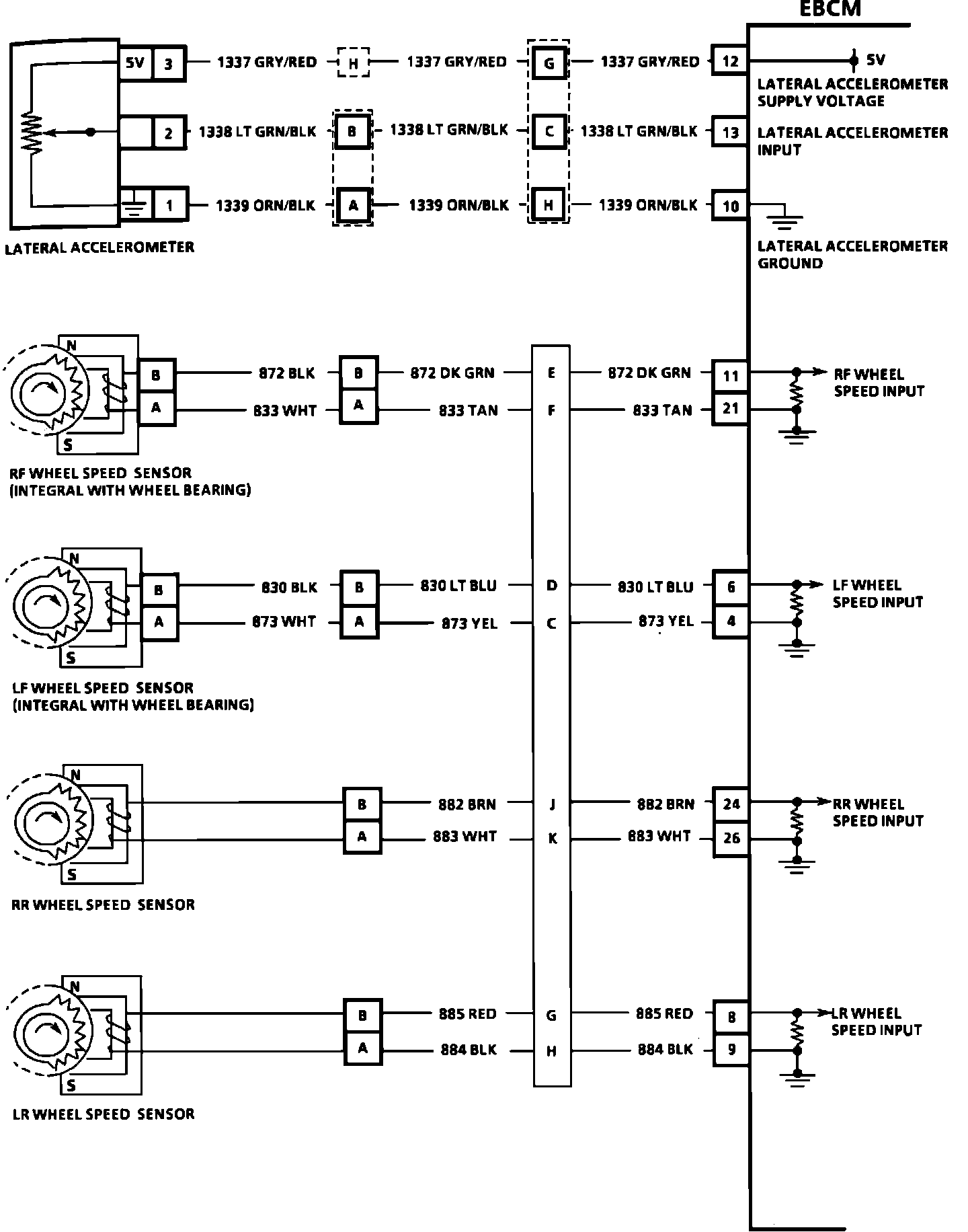

Fig. 17 ABS System Wiring Circuit (Part 3 Of 3). 1991:
