Operation CHARM
: Car repair manuals for everyone.
Home
>>
Chevrolet
>>
1991
>>
Corvette V8-350 5.7L DOHC VIN J MFI
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Parking Lamp
>>
Less Daytime Running Lamps
Less Daytime Running Lamps

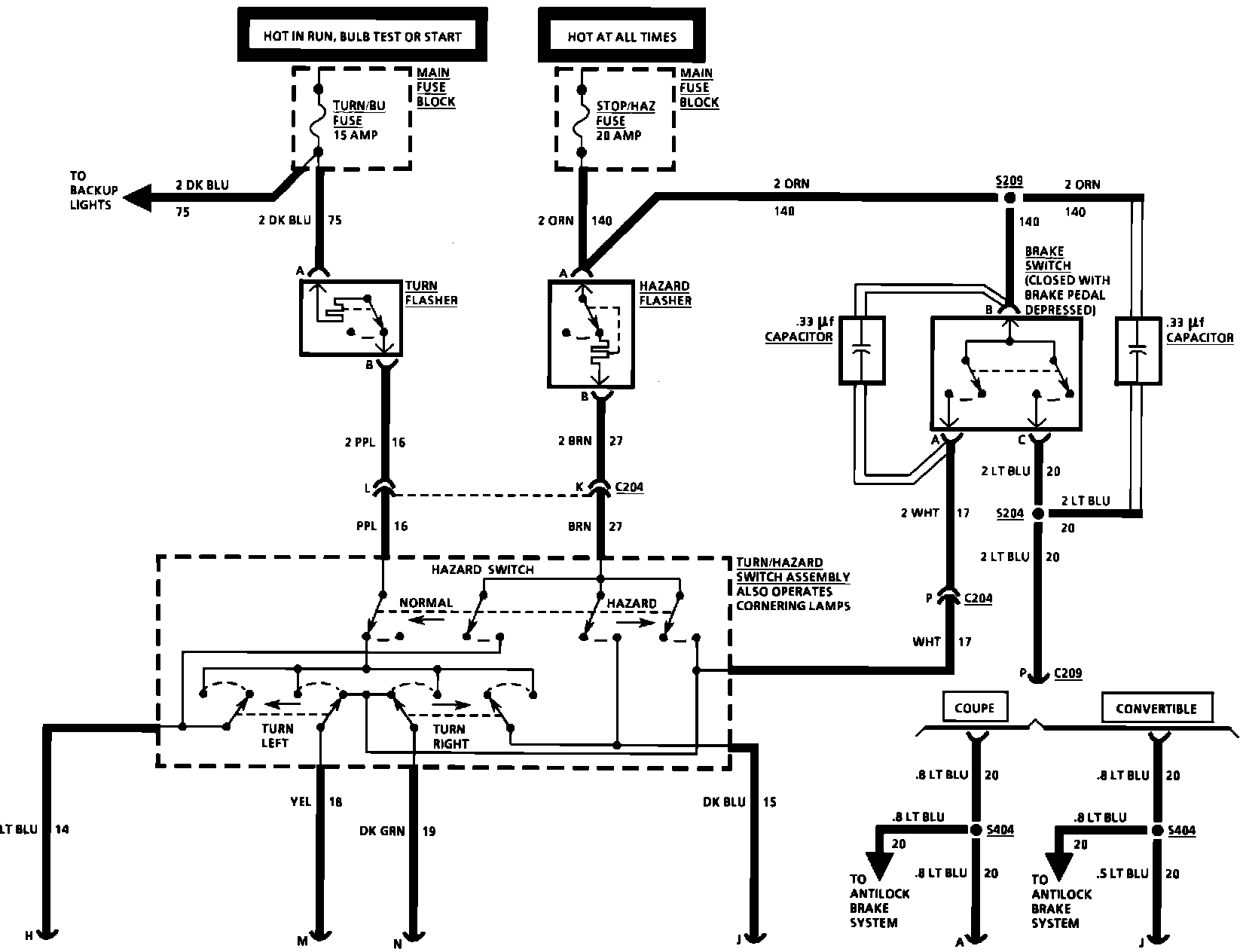

Turn/Hazard/Stop/Park/Front Marker:
Turn/Hazard/Stop/Park/Front Marker:

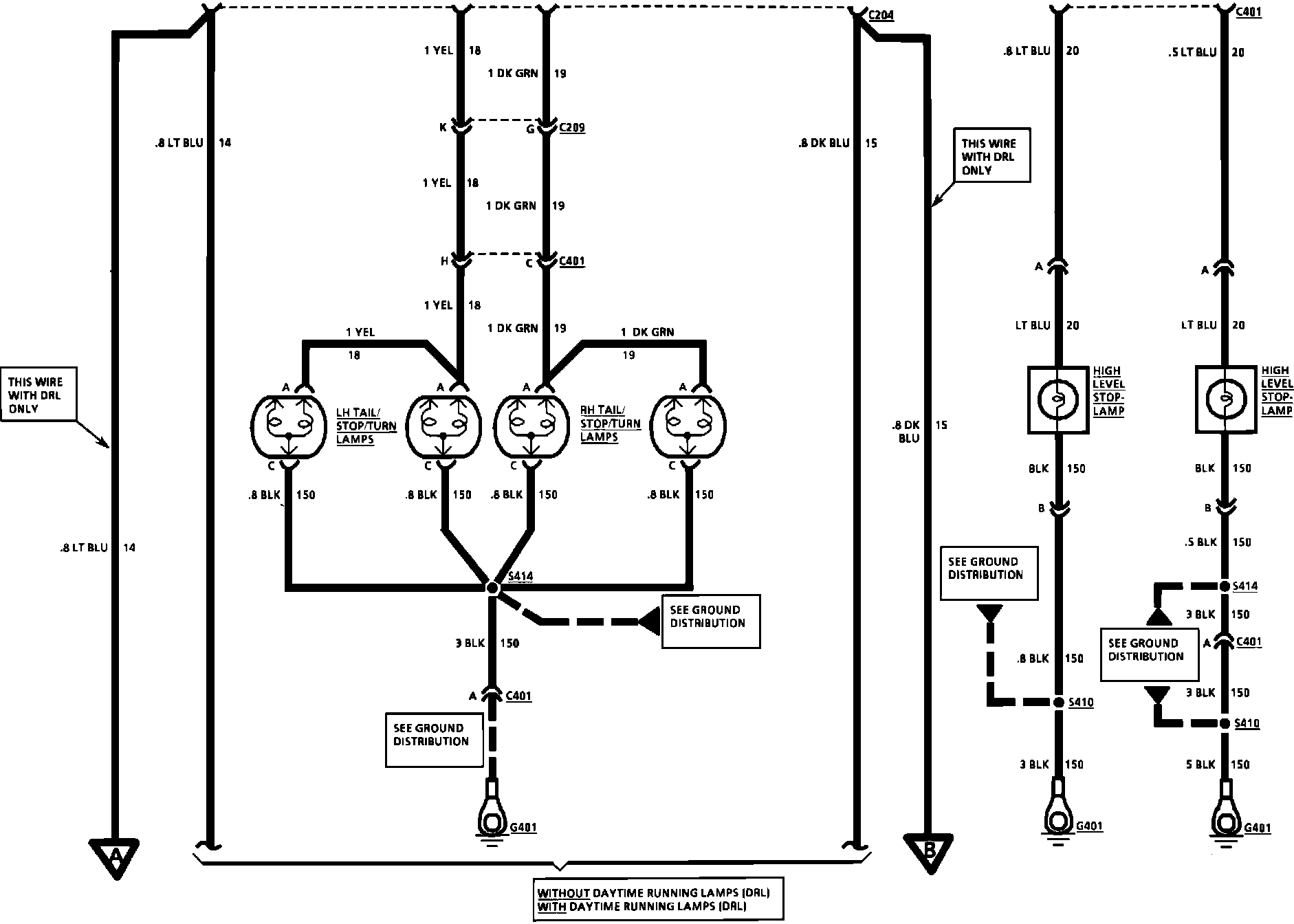

Turn/Hazard/Stop/Park/Front Marker Without Daytime Running Lamps:
