Home >> Chevrolet >> 1991 >> Corvette V8-350 5.7L DOHC VIN J MFI >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Suspension Control ( Automatic - Electronic )

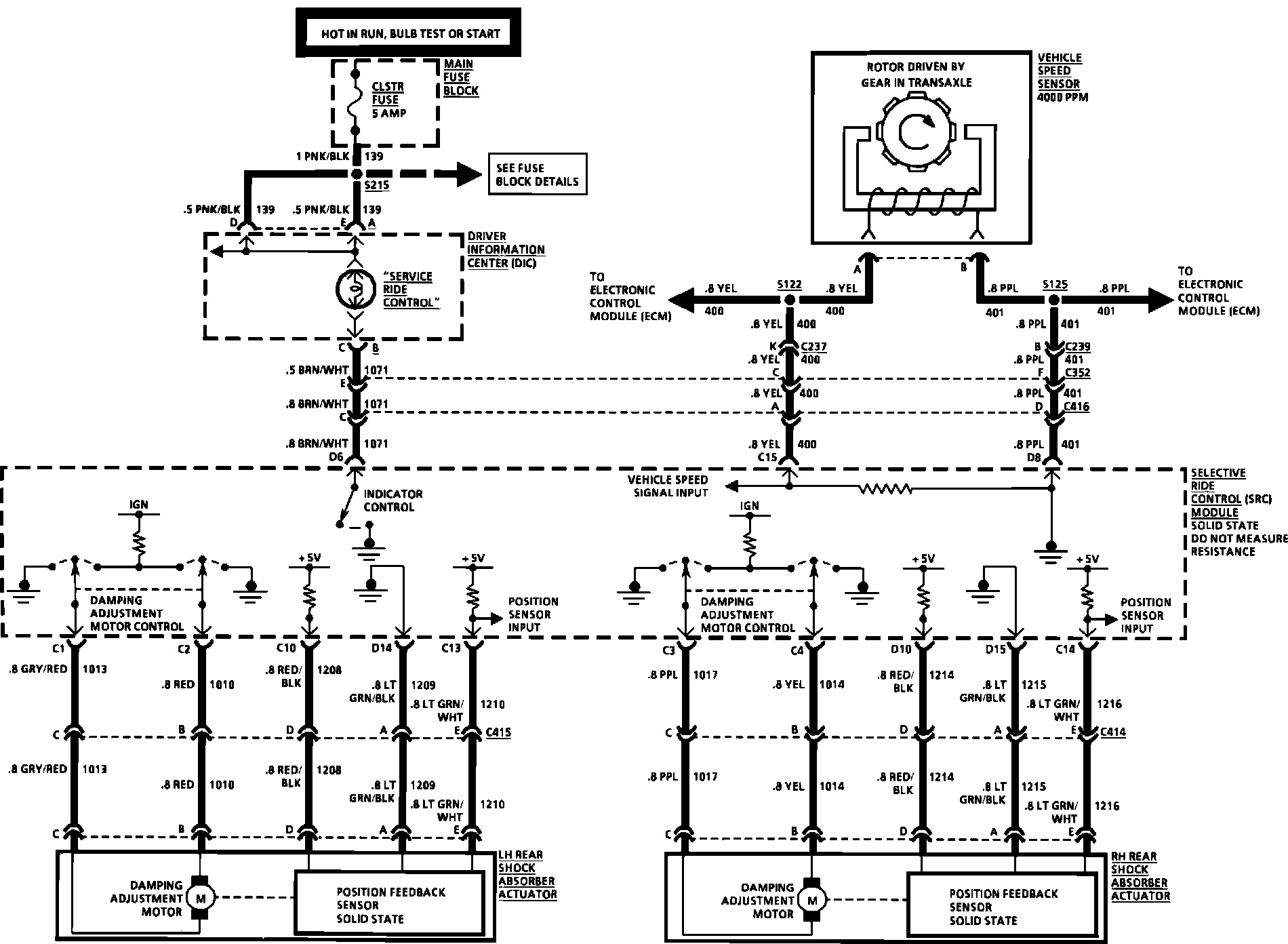

Suspension Control ( Automatic - Electronic )

Selective Ride FX3:



Selective Ride FX3:
