Chevrolet
>>
1991
>>
Corvette V8-350 5.7L DOHC VIN J MFI
>>
Repair and Diagnosis
>>
Engine, Cooling and Exhaust
>>
Cooling System
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams

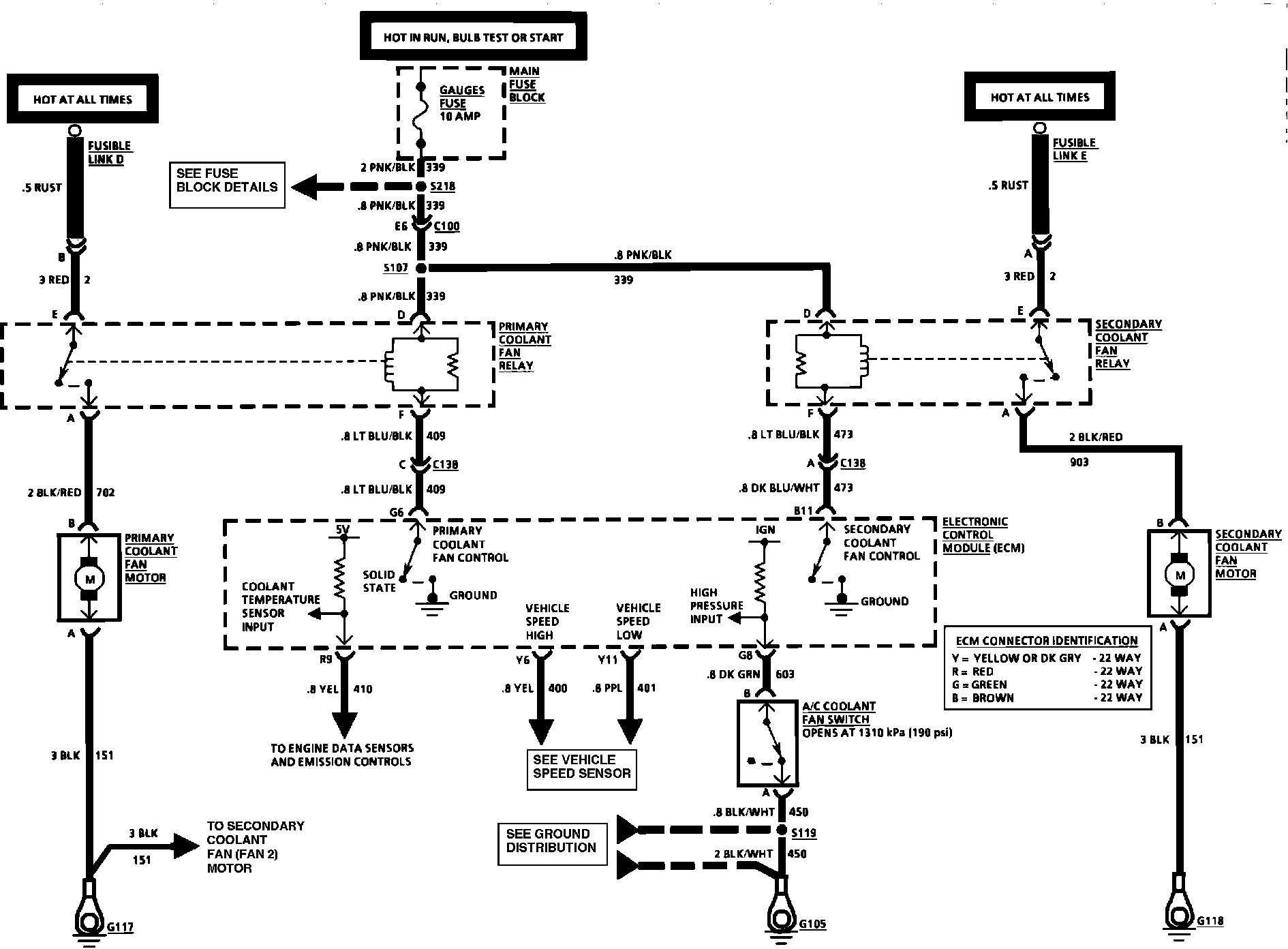

Coolant Fans (ZR1 Models):
