Engine Control Module

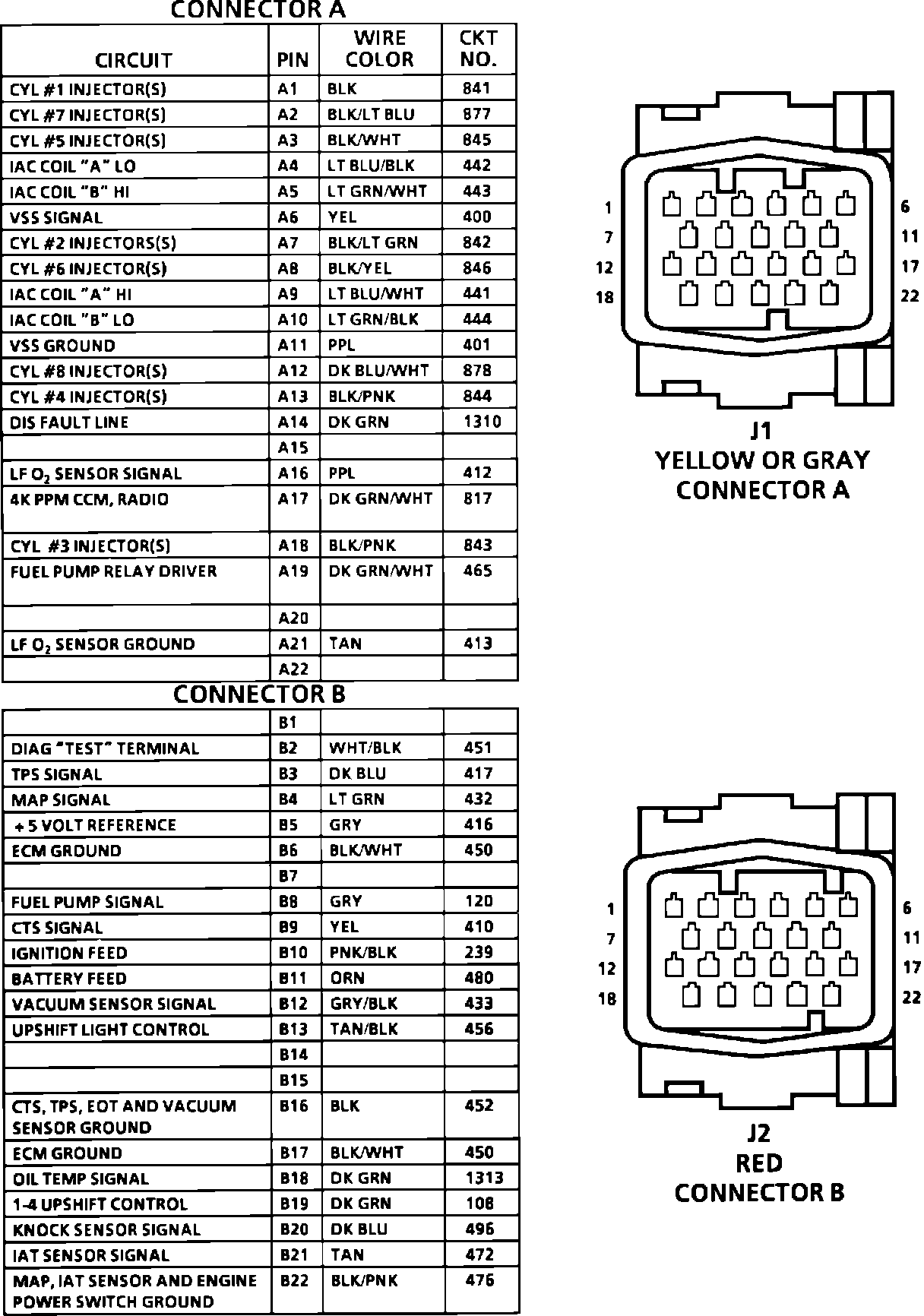

ECM Terminal Identification (Part 1 Of 2):



ECM Terminal Identification (Part 2 Of 2):
