Chart 2 Wipers Run at High Speed Only
Chart 2 Wipers Run at High Speed Only

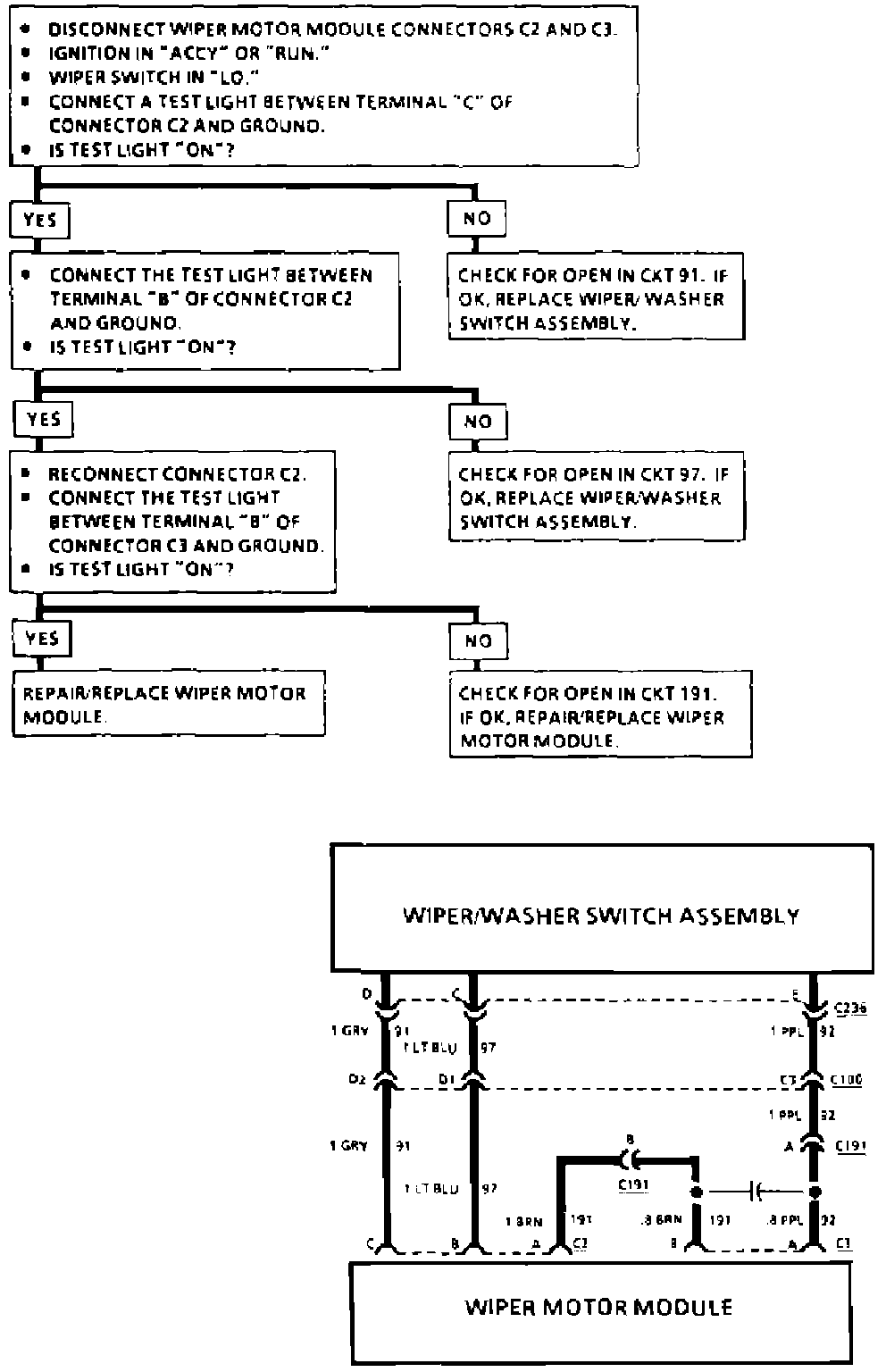

Fig. 61 Chart 2 - Wipers run at high speed only:
