Chart 6 Washer Will Not Operate
Chart 6 Washer Will Not Operate

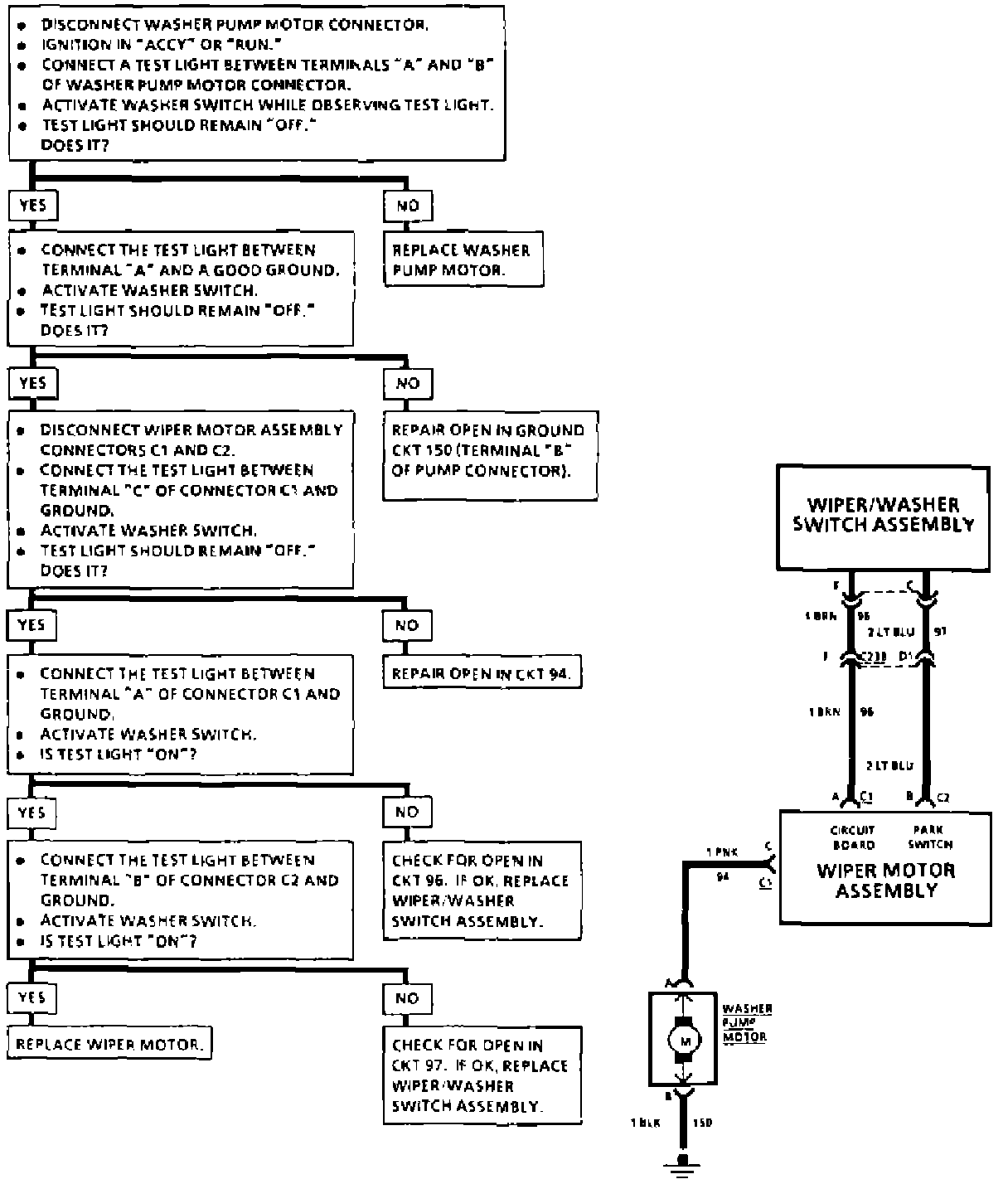

Fig. 68 Chart 6 - Washer will not operate:
