Home
>>
Chevrolet
>>
1991
>>
Lumina L4-151 2.5L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Cooling System
>>
Coolant Level Indicator Lamp

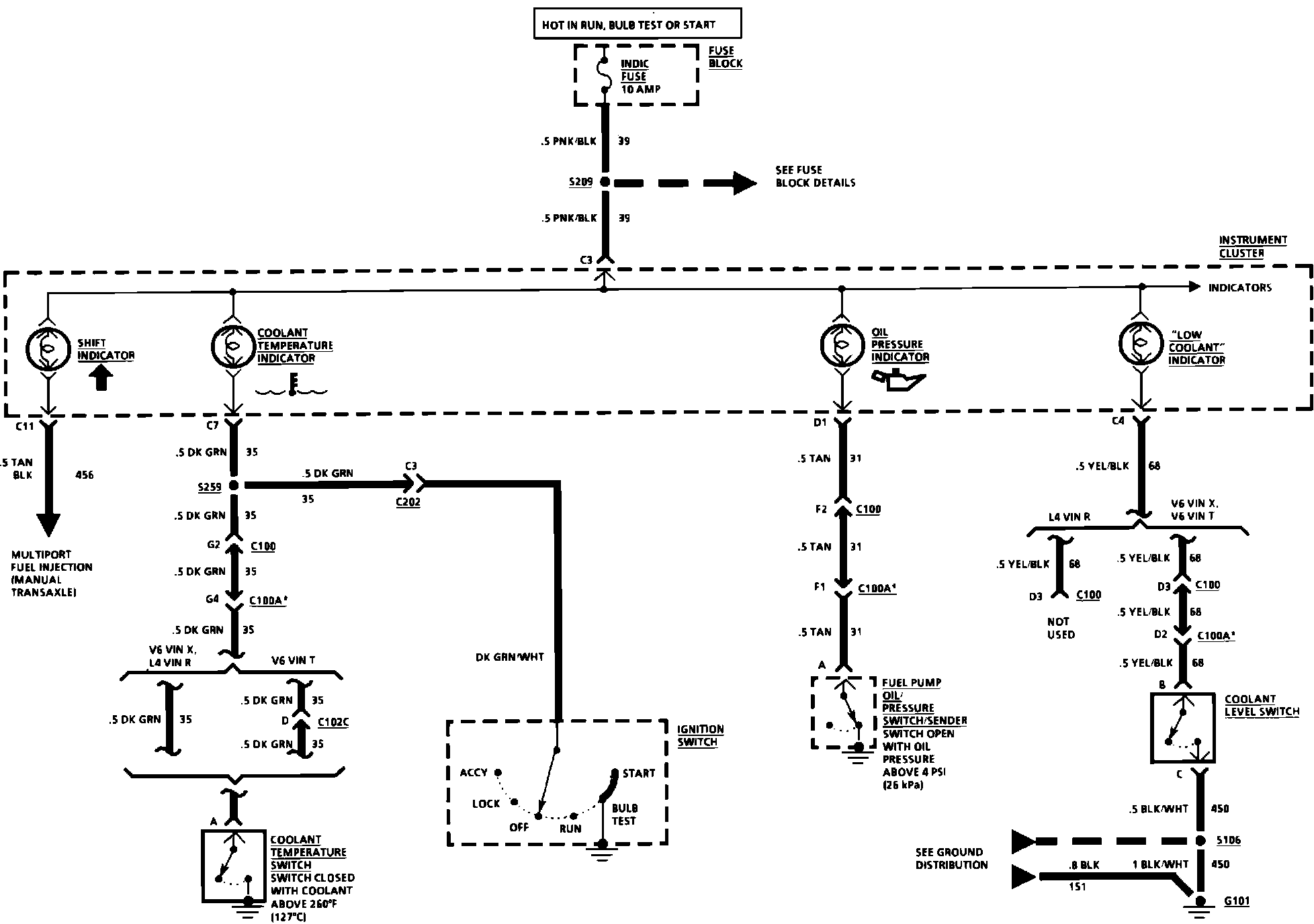

Coolant Level Indicator Lamp
Instrument Cluster. Base:
