Home >> Chevrolet >> 1991 >> Lumina V6-191 3.1L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Cooling System >> System Diagram

System Diagram

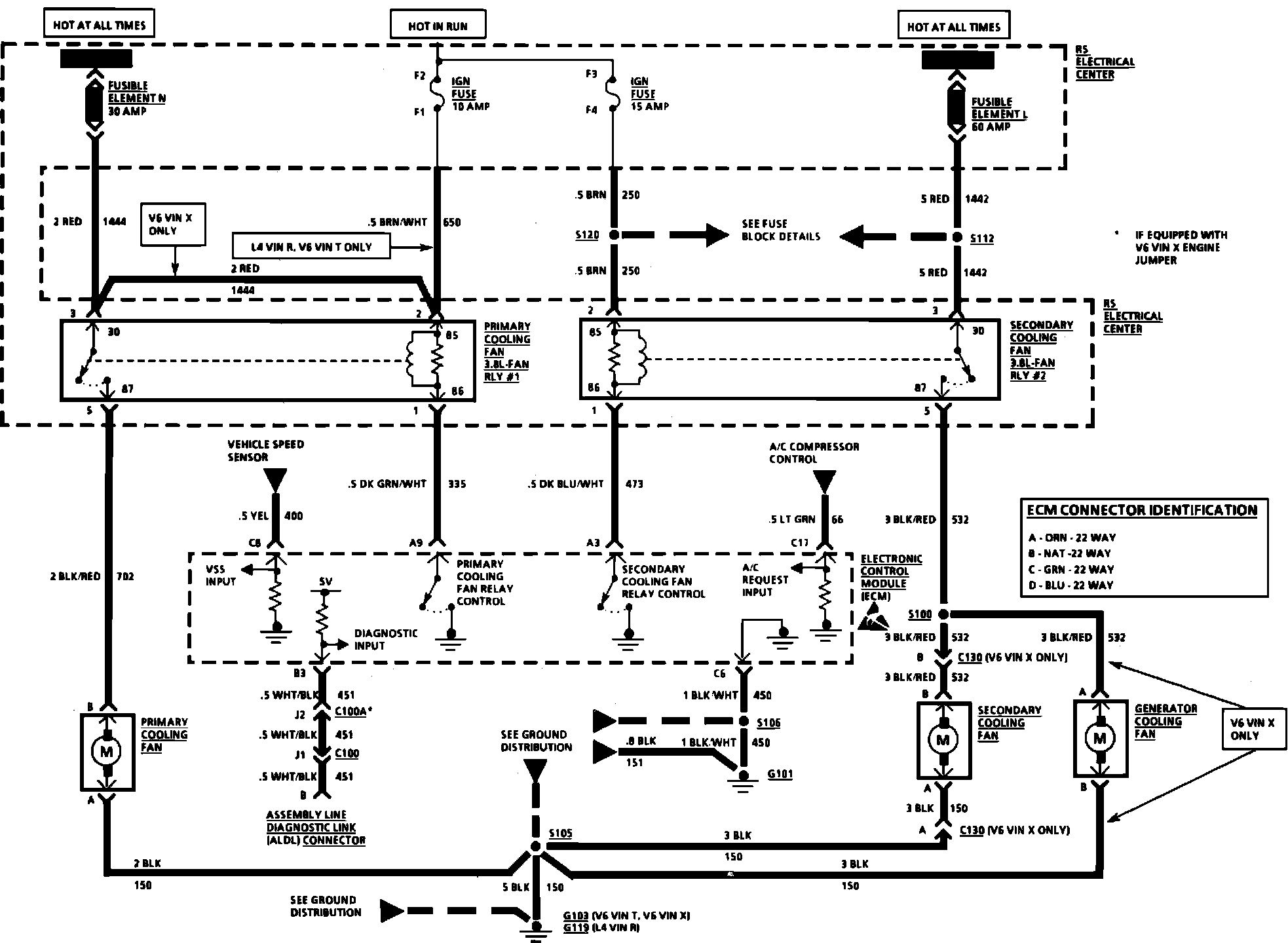

Fig. 128 Coolant Fan Wiring Circuit (Part 1 Of 2). 1991 Lumina:



Fig. 128 Coolant Fan Wiring Circuit (Part 2 Of 2). 1991 Lumina:
