Fastener Tightening Specifications - Non Methanol

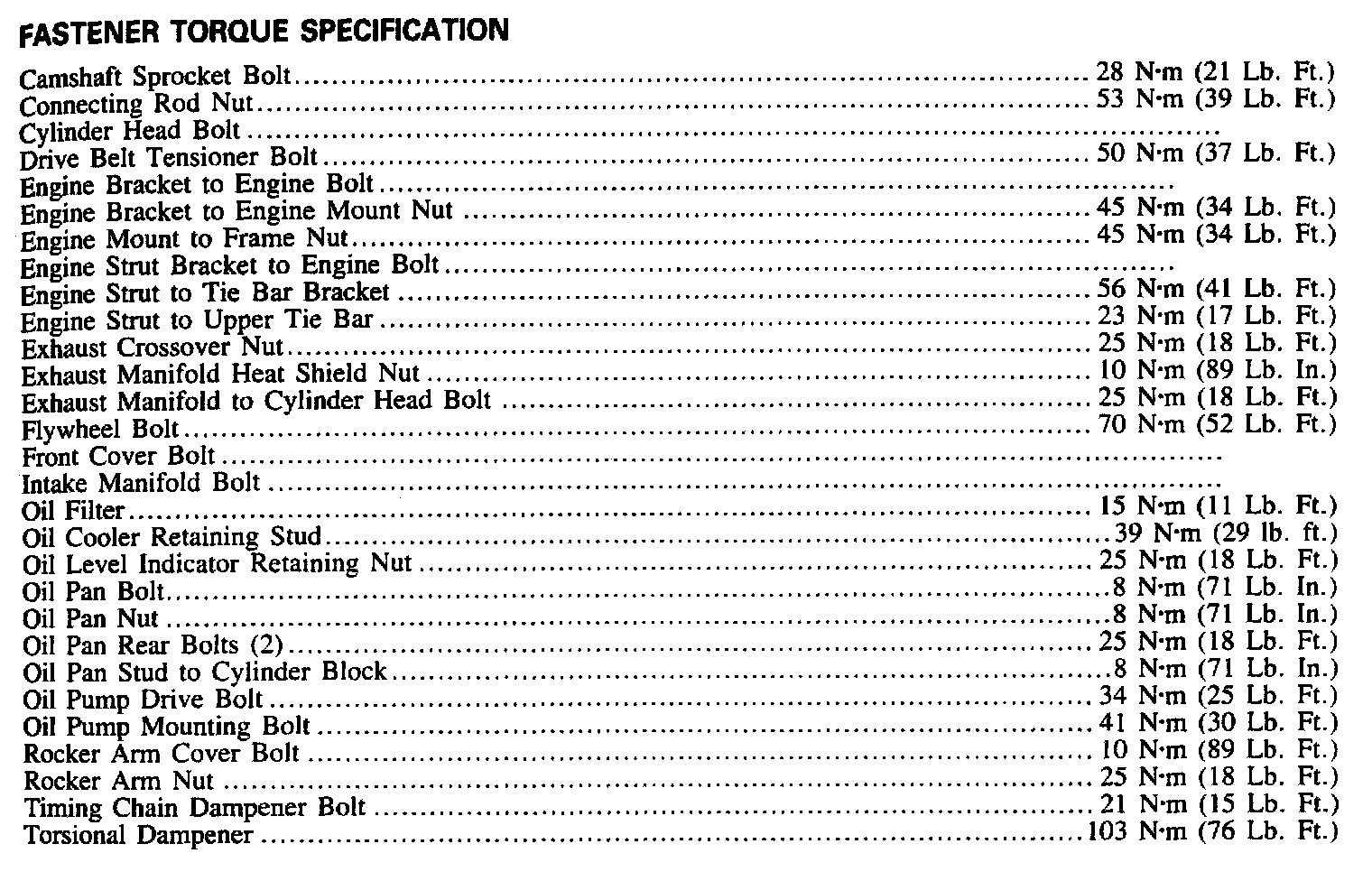

Torque Specifications:

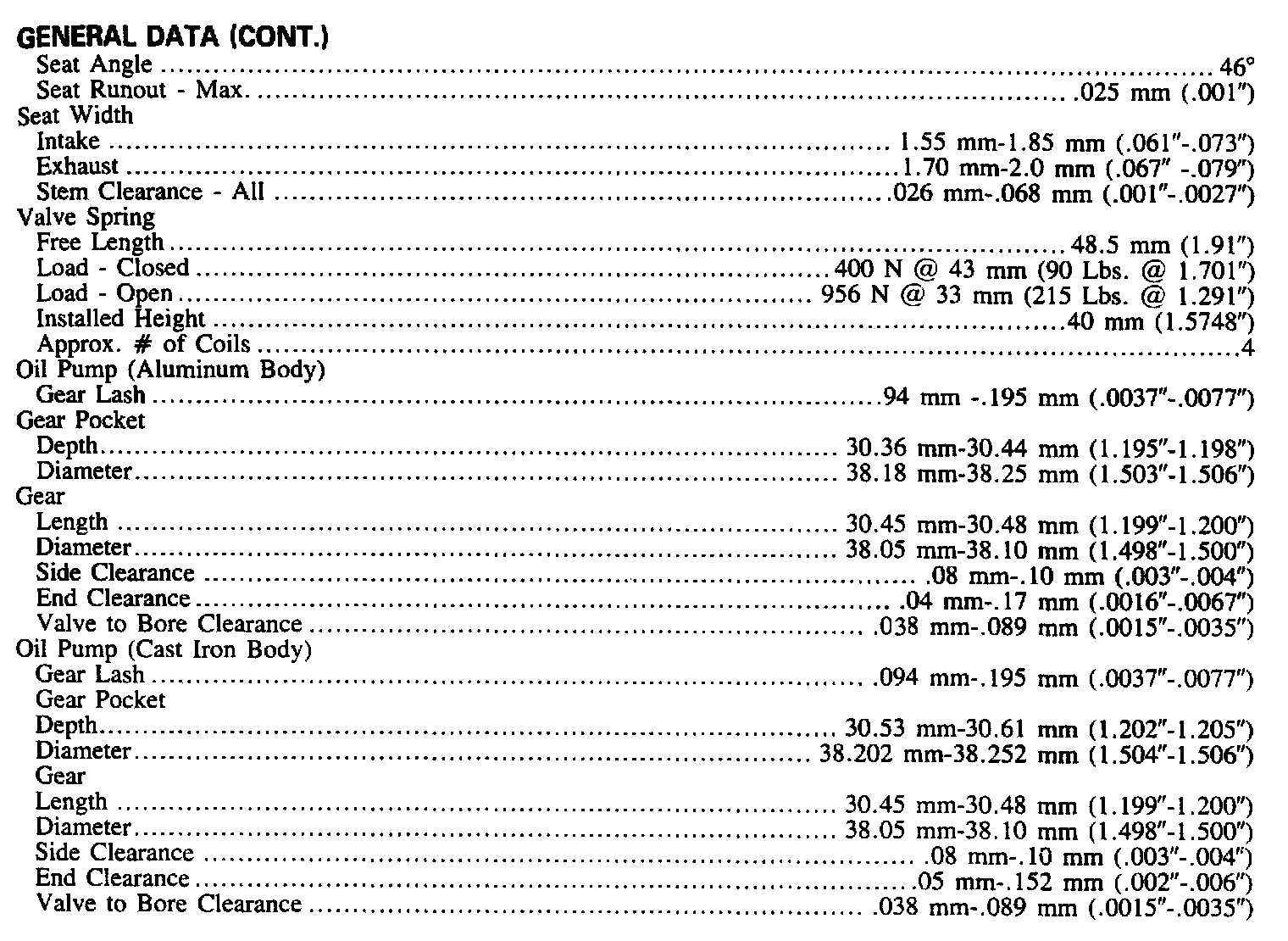

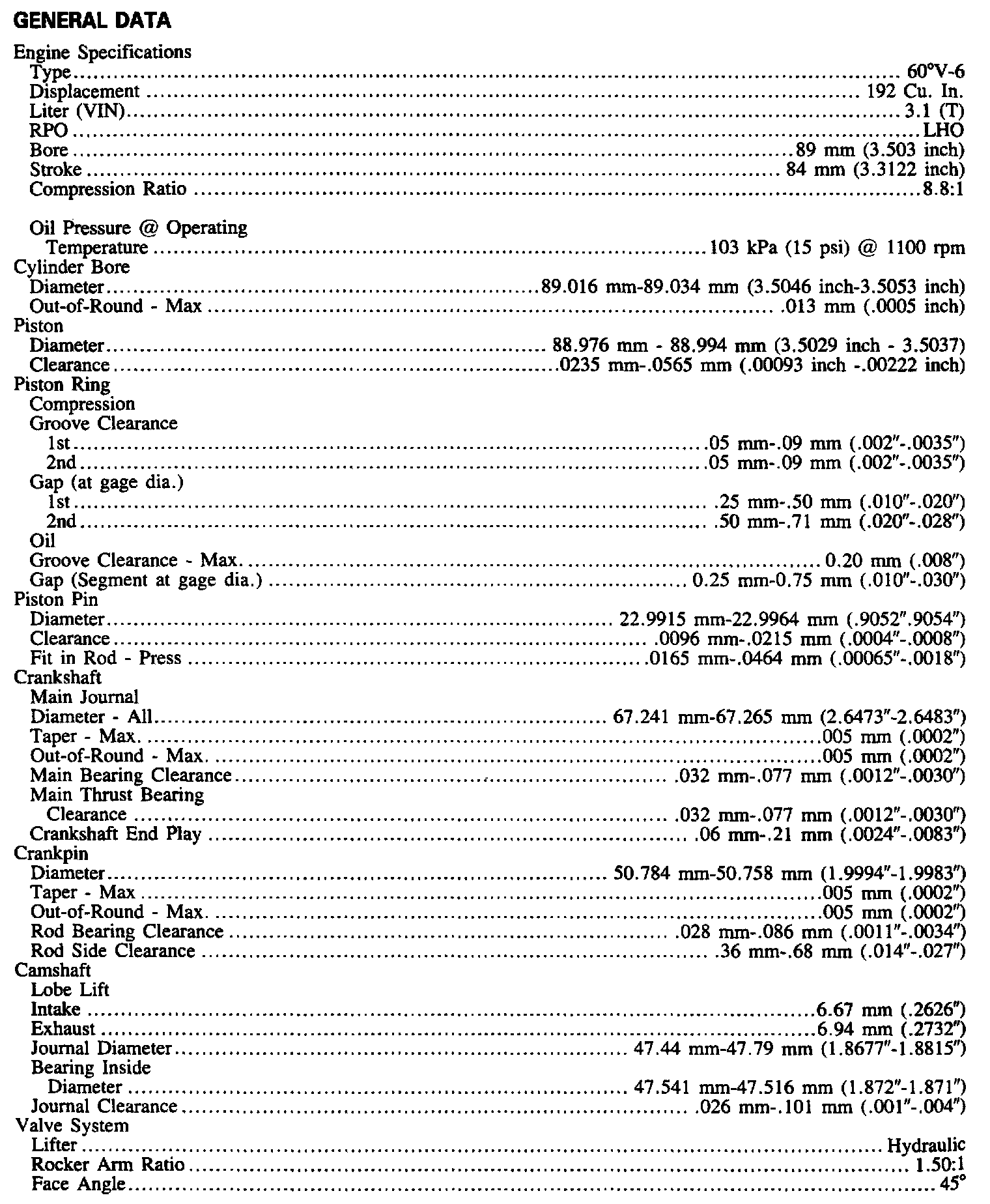

Engine Specifications:




Engine Specifications:

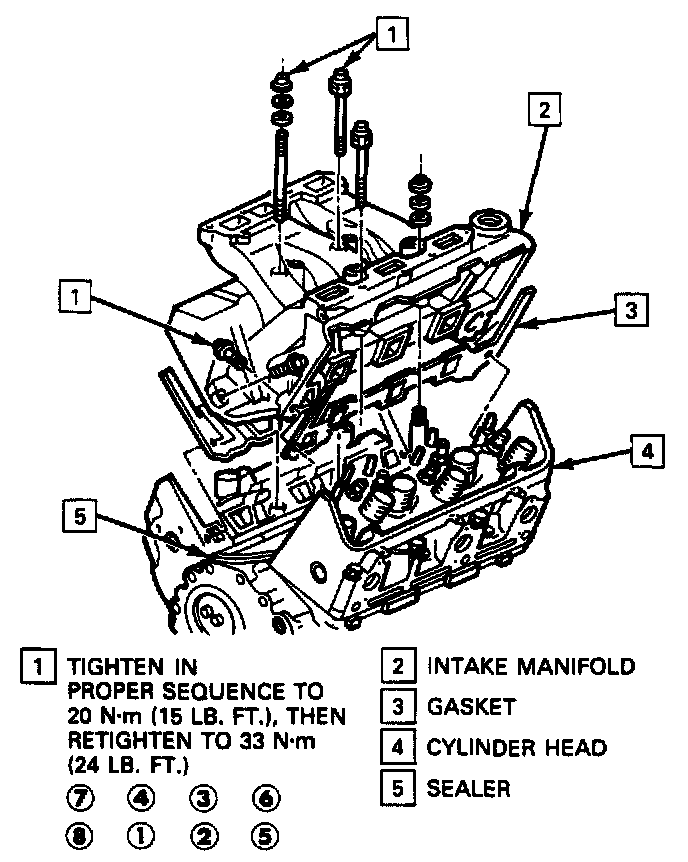

Intake Manifold Sequence:





Cylinder Head Sequence:
