Air Delivery and Temperature Controls

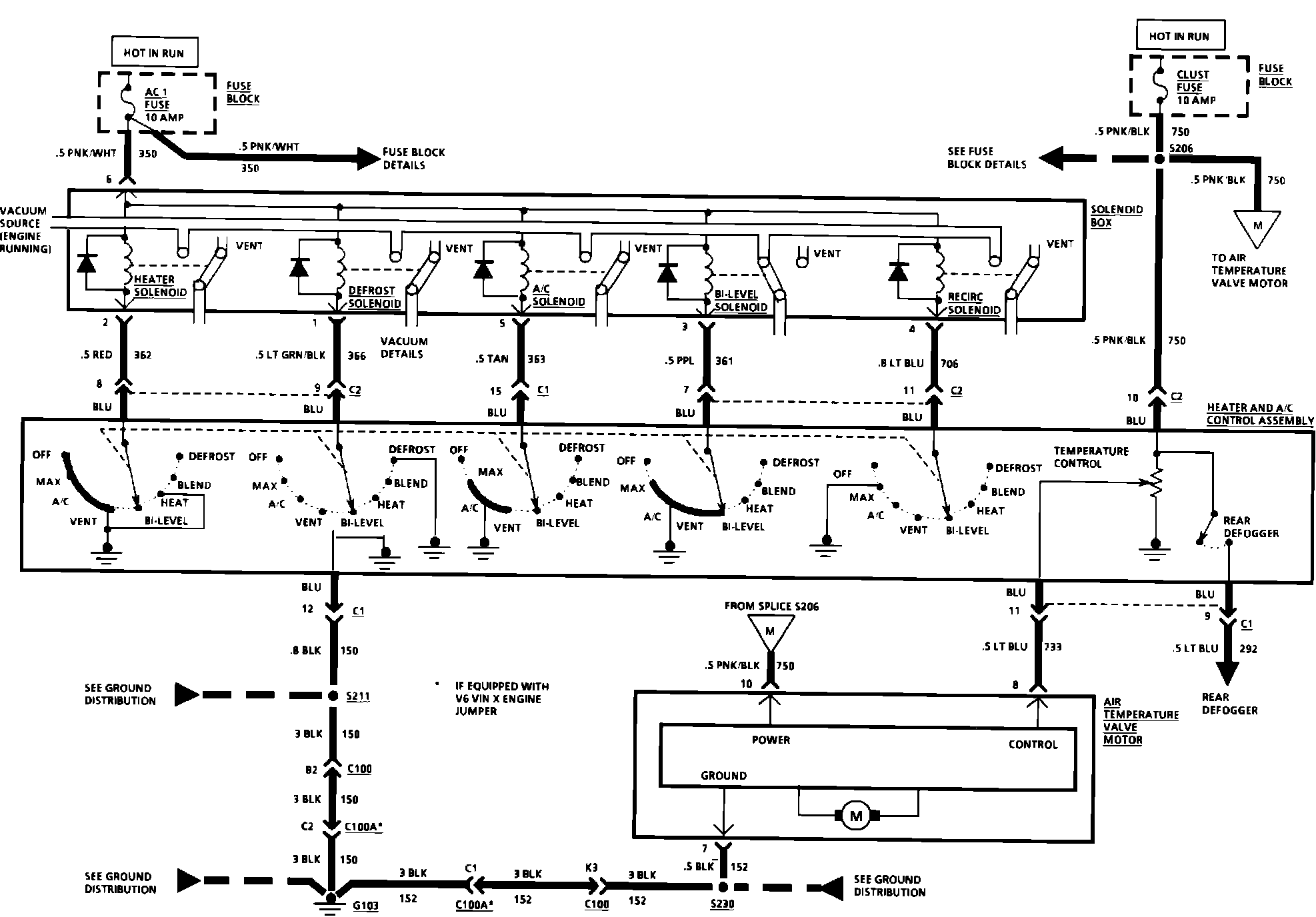

Air Conditioning. Air Delivery And Temperature Controls:

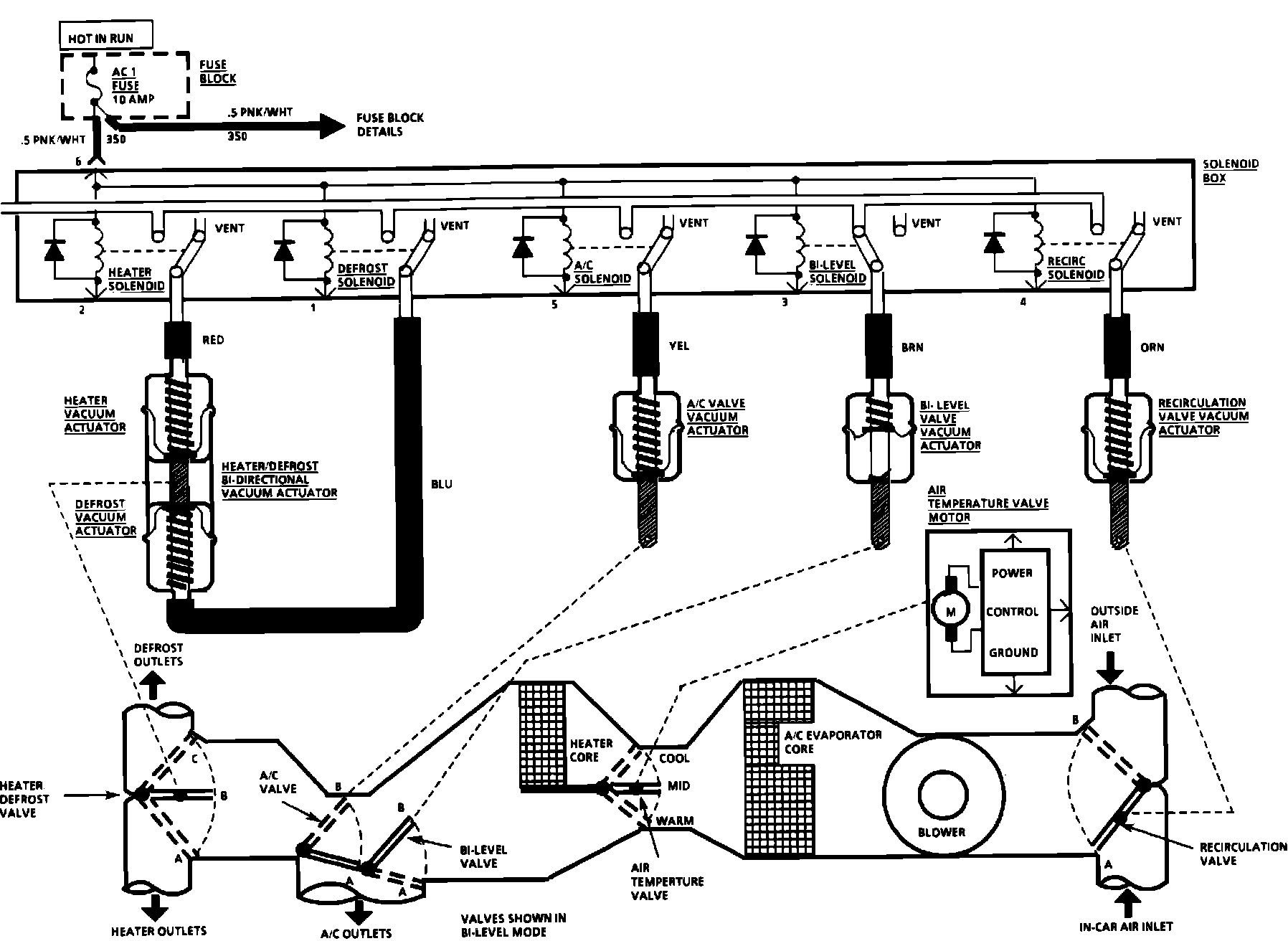

Air Conditioning. Air Delivery And Temperature Controls:
