Operation CHARM
: Car repair manuals for everyone.
Home
>>
Chevrolet
>>
1992
>>
Beretta L4-138 2.3L DOHC QUAD 4
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Diagrams
>>
Electrical Diagrams
>>
Fuel Control & Delivery
Fuel Control & Delivery
MFI: Fuel Control:

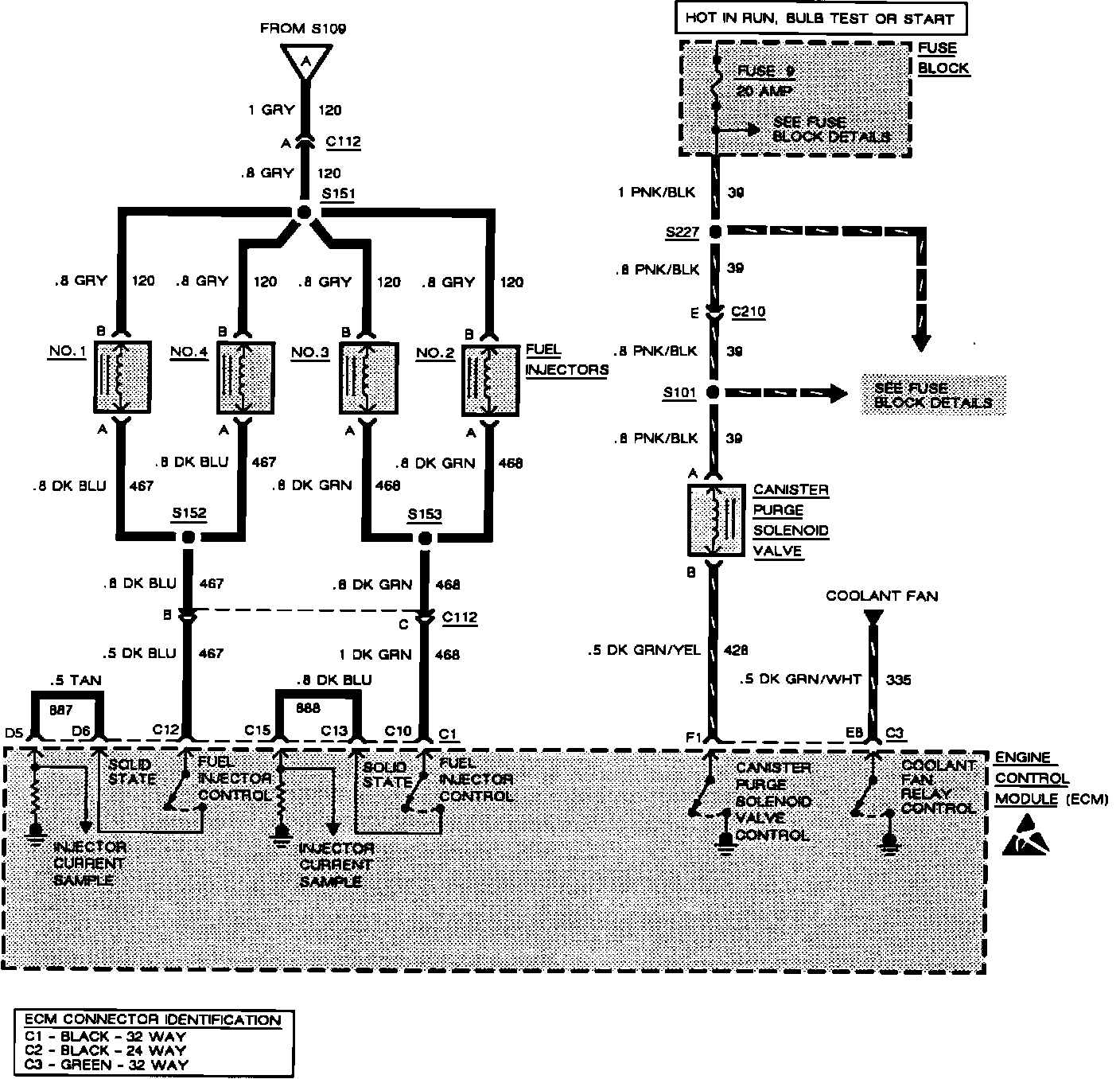

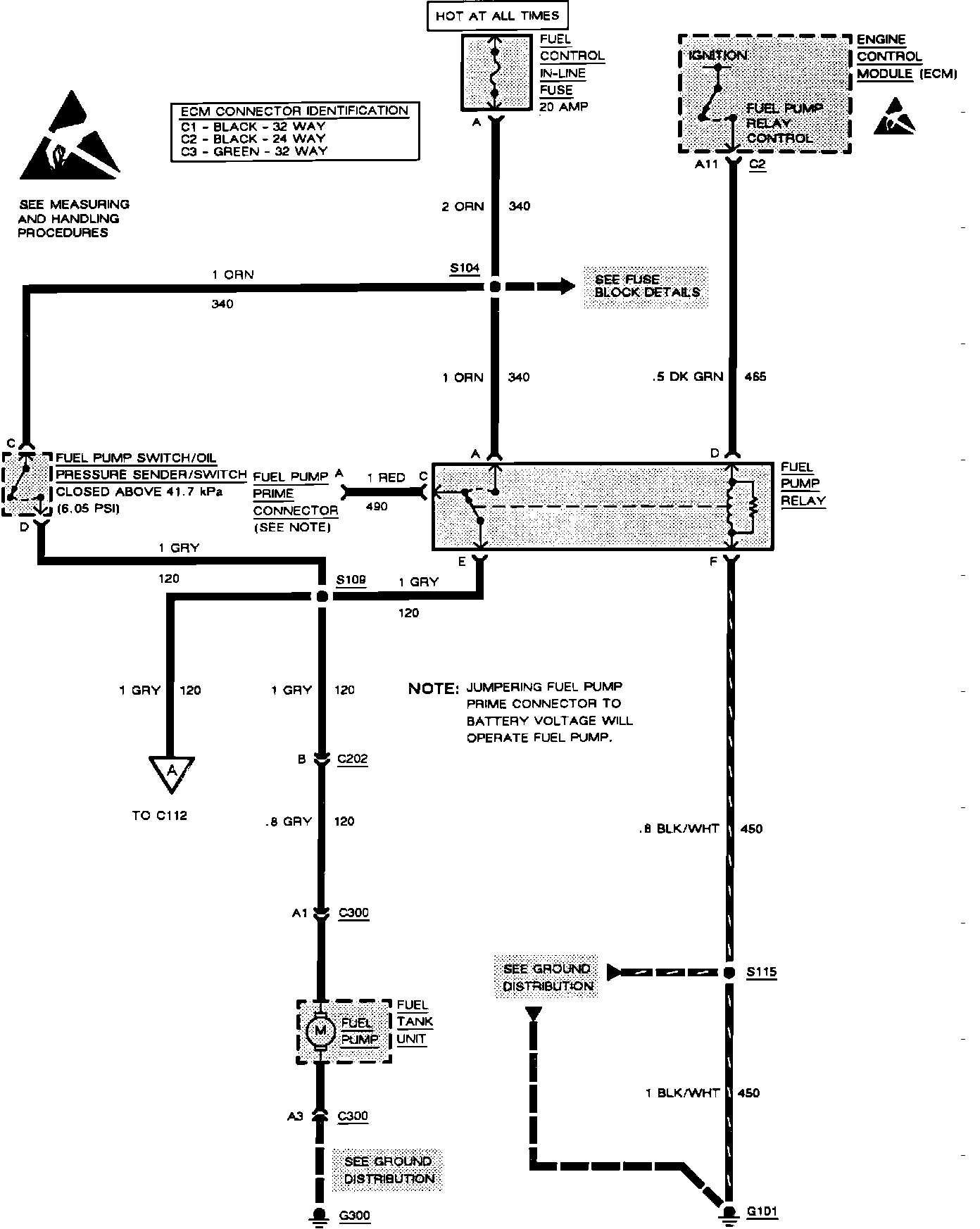

Fuel Control 92 L Body 2.3L:

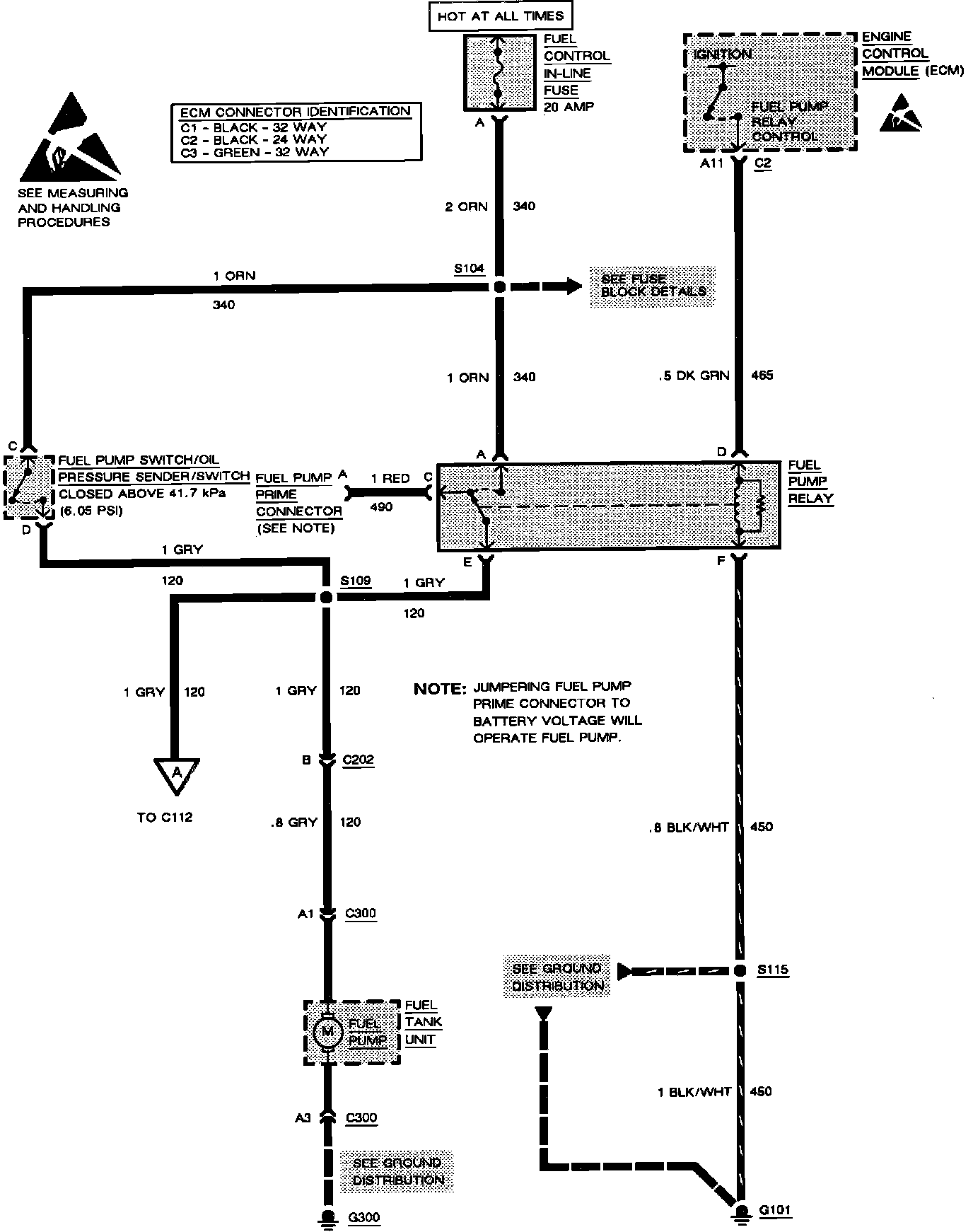

Fuel Control 92 L Body 2.3L:
