Operation CHARM
: Car repair manuals for everyone.
Home
>>
Chevrolet
>>
1992
>>
Camaro V6-191 3.1L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Lighting and Horns
>>

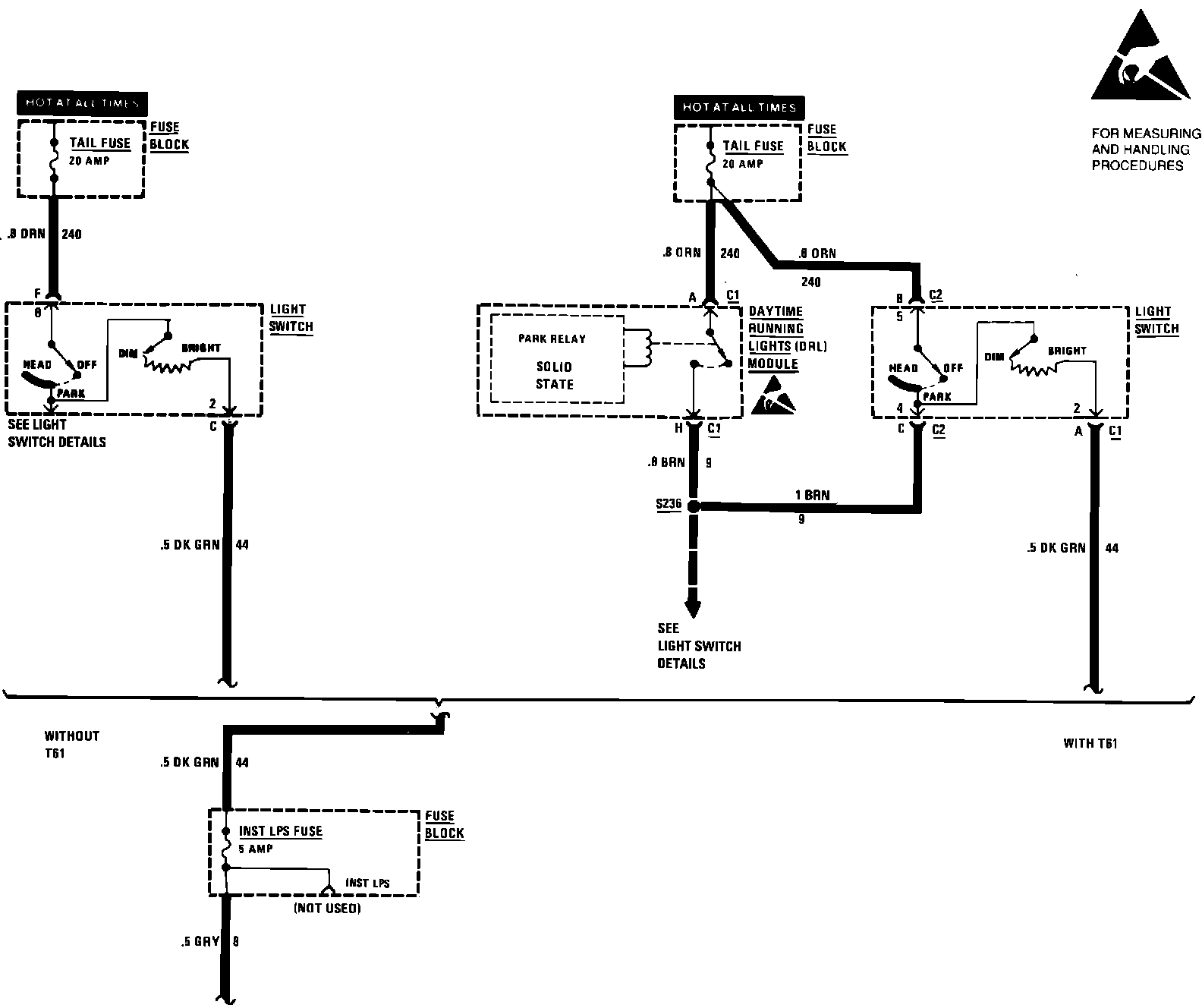

System Diagram
System Diagram
Interior Light Dimming:
Interior Light Dimming:
