Home >> Chevrolet >> 1992 >> Camaro V6-191 3.1L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Wiper and Washer Systems >> Wiper/Washer: Pulse (CD4)

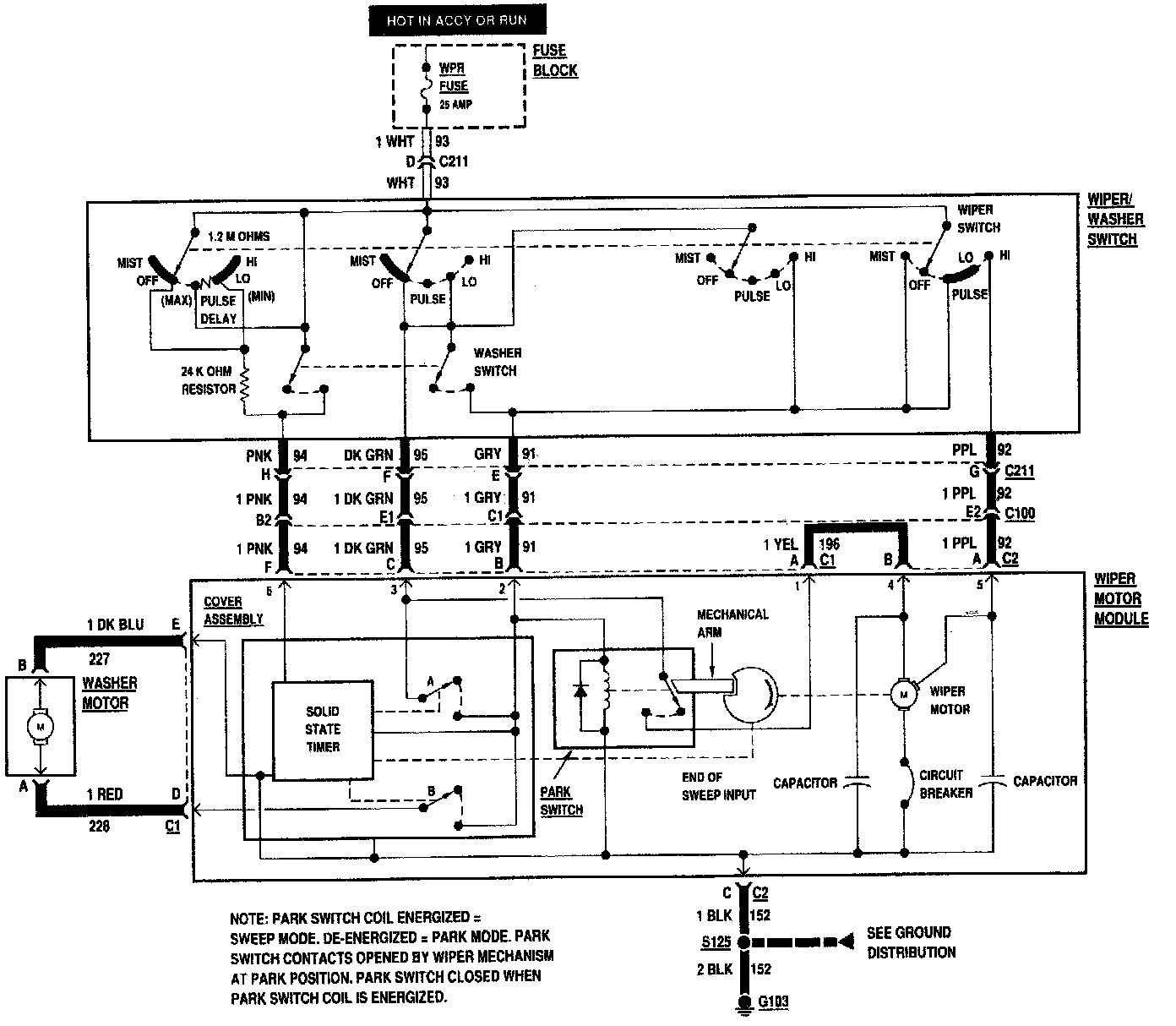

Wiper/Washer: Pulse (CD4)

Wiper/Washer: Pulse (CD4):
