Engine Control Module

Throttle Body Fuel Injection:

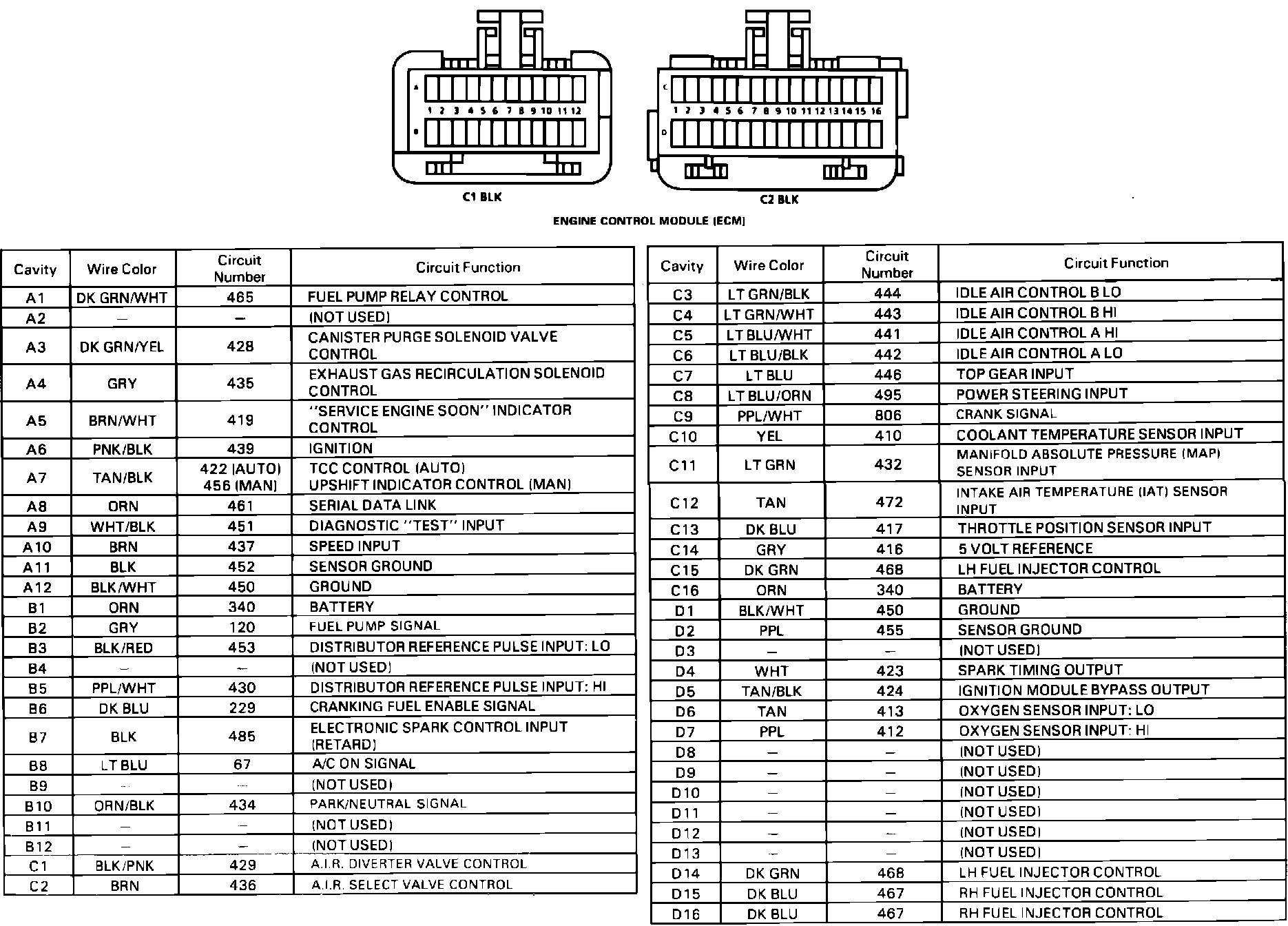

Engine Control Module (ECM) Connector Face:



ECM Voltage Chart:
