Home >> Chevrolet >> 1992 >> Camaro V8-305 5.0L VIN E >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Lighting and Horns >> Headlamp >> Headlamp Switch >> With Daytime Running Lights

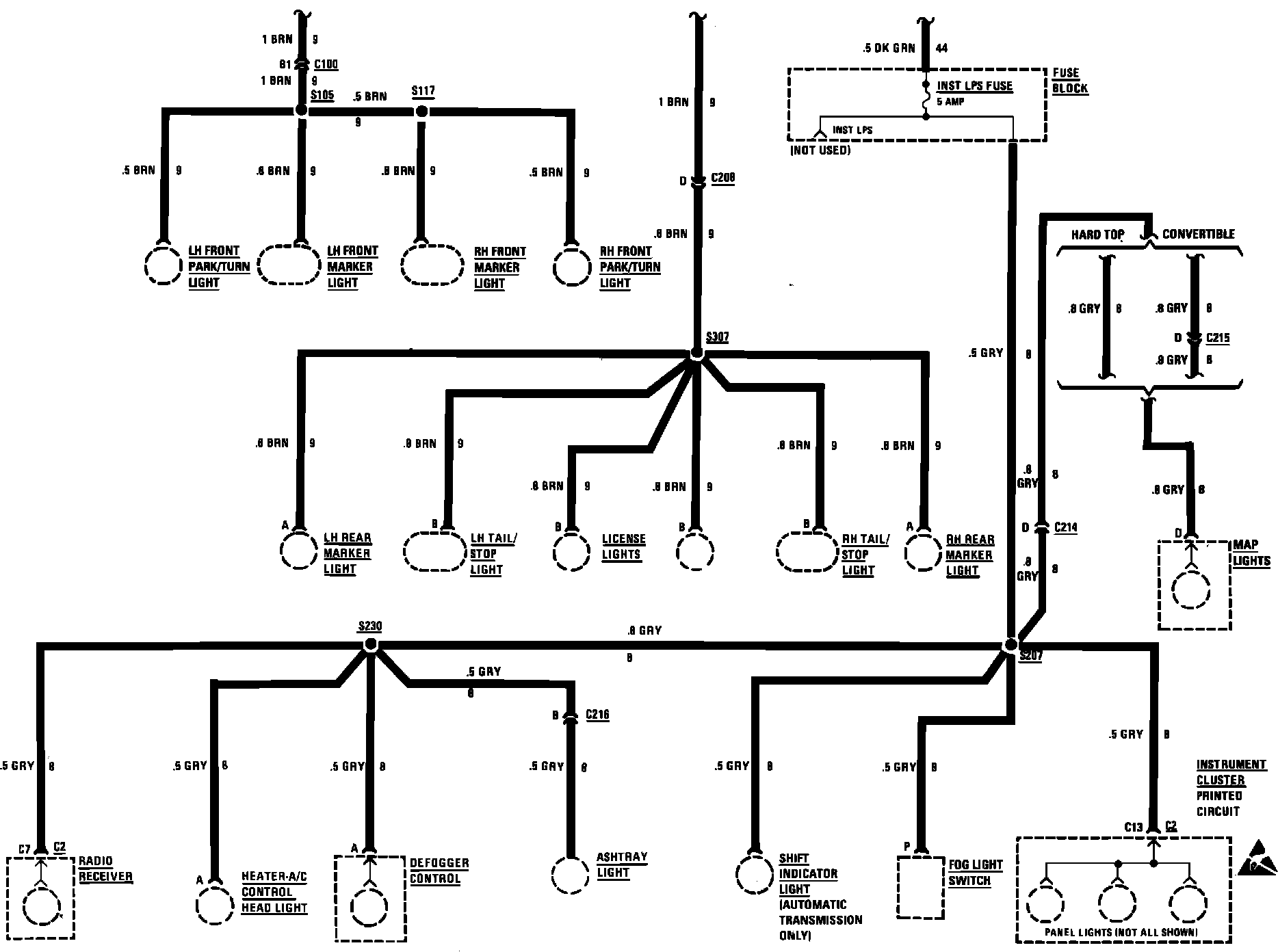

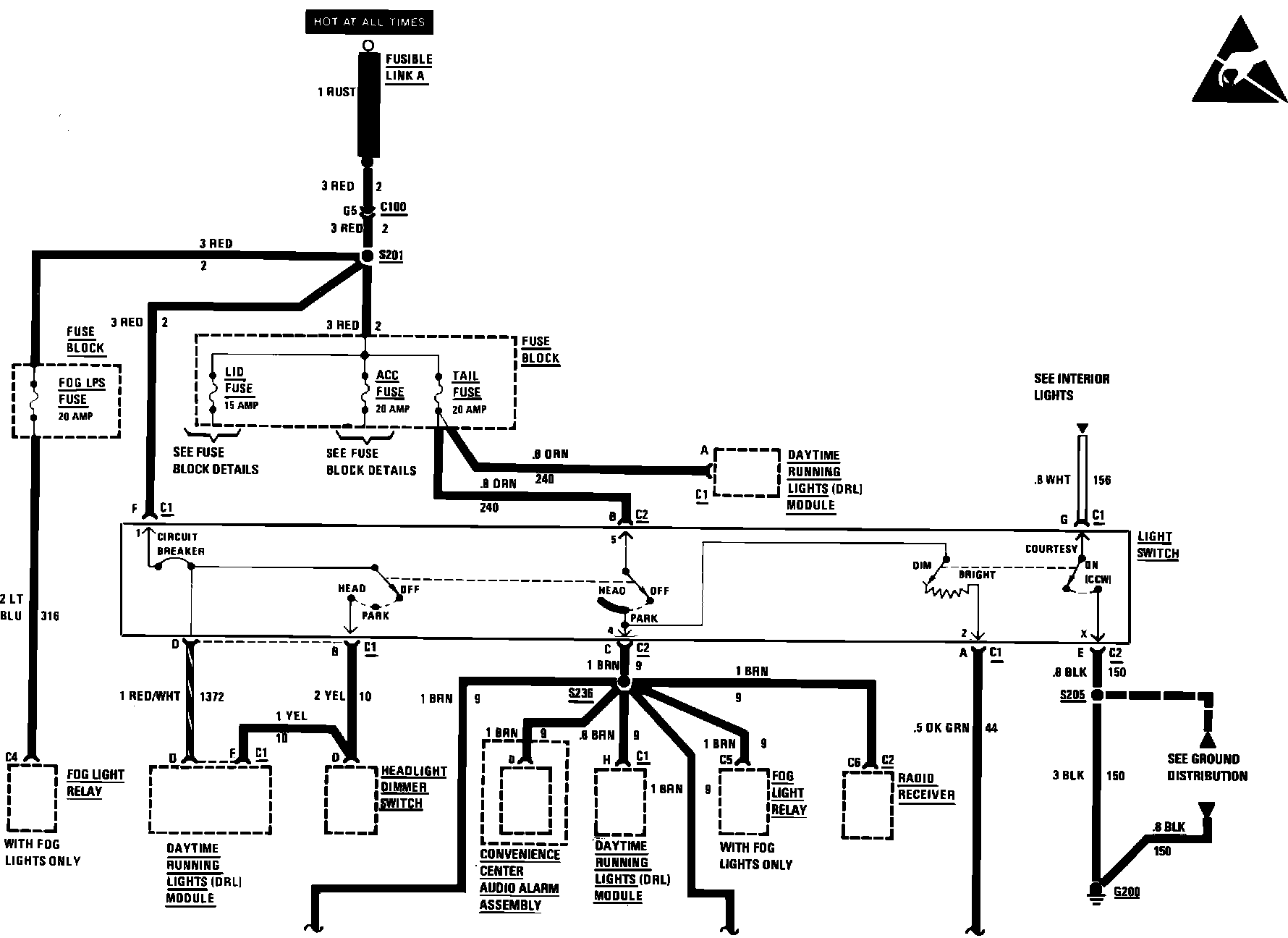

With Daytime Running Lights

Light Switch Details:



Light Switch Details:
