Test C: Blower Resistor Assembly Test

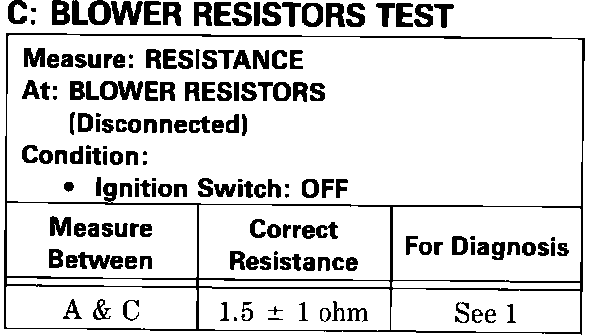

Test C: Blower Resistor Test:

Text C: Blower Resistors Test (continued):
