Right Side of Engine
Right Side Pictorial:
1 A/C MODULE CONNECTOR
2 INJECTOR CONNECTORS
3 AIR VALVE CONNECTOR
4 GROMMET
5 FUEL PUMP PRIME CONNECTOR
6 TPS CONNECTOR
7 COOLANT TEMPERATURE SWITCH CONNECTOR
8 IAC CONNECTOR
9 ESC SENSOR CONNECTOR
10 POSITIVE BATTERY CABLE
11 STARTER LEADS
12 FAN TEMPERATURE SWITCH
Right Side Pictorial:
A PLENUM
1 A/C COMPRESSOR PRESSURE SWITCH CONNECTOR
2 A/C COMPRESSOR CLUTCH CONNECTOR
3 MAP SENSOR CONNECTOR
4 EGR SOLENOID CONNECTOR
5 INJECTOR CONNECTOR
6 COIL CONNECTOR
7 TACH FILTER

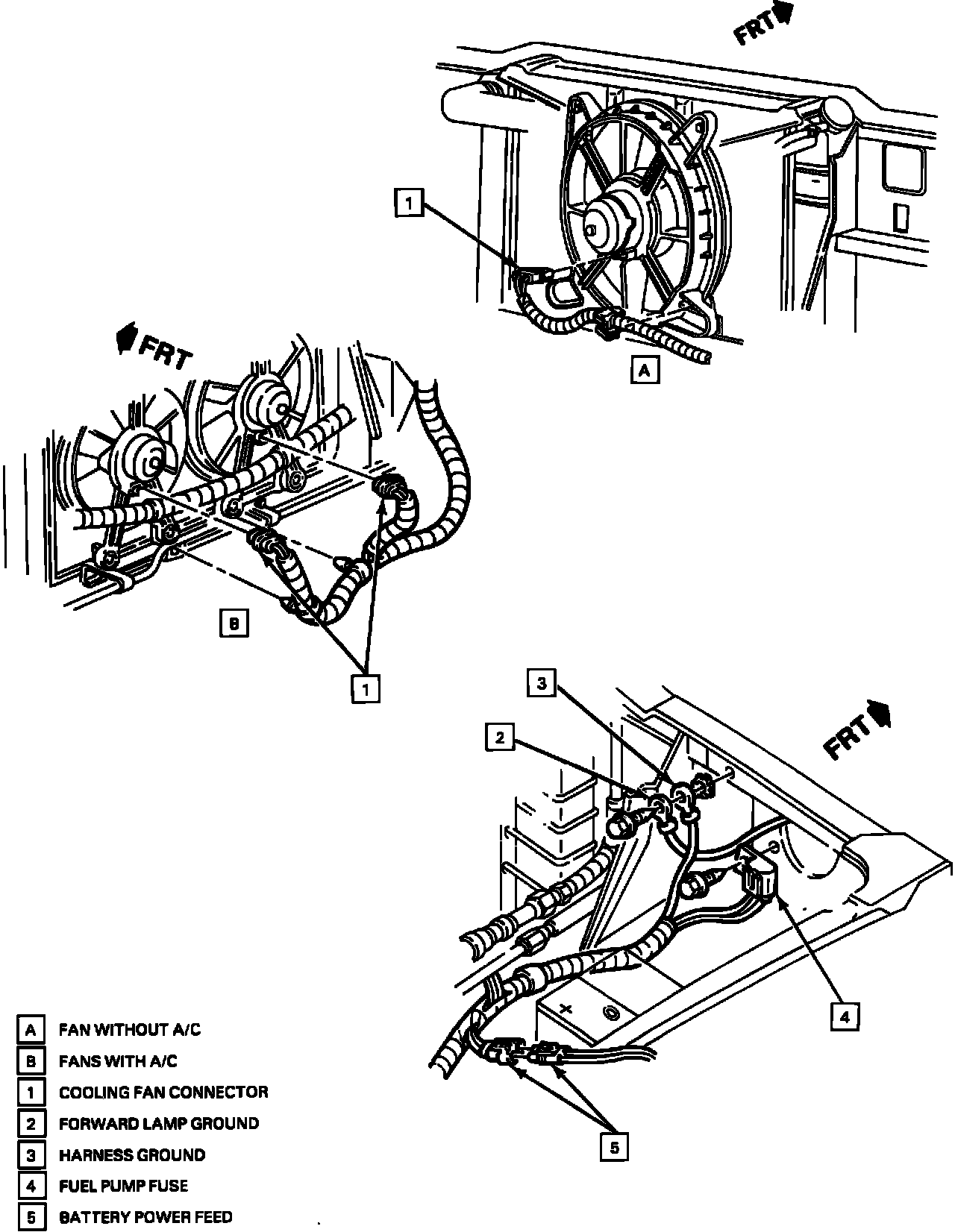

Right Side Pictorial:
A FAN WITHOUT A/C
B FANS WITH A/C
1 COOLING FAN CONNECTOR
2 FORWARD LAMP GROUND
3 HARNESS GROUND
4 FUEL PUMP FUSE
5 BATTERY POWER FEED
