Home
>>
Chevrolet
>>
1992
>>
Caprice RWD V6-262 4.3L
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Diagrams
>>
Electrical Diagrams
>>
Wagon
Wagon

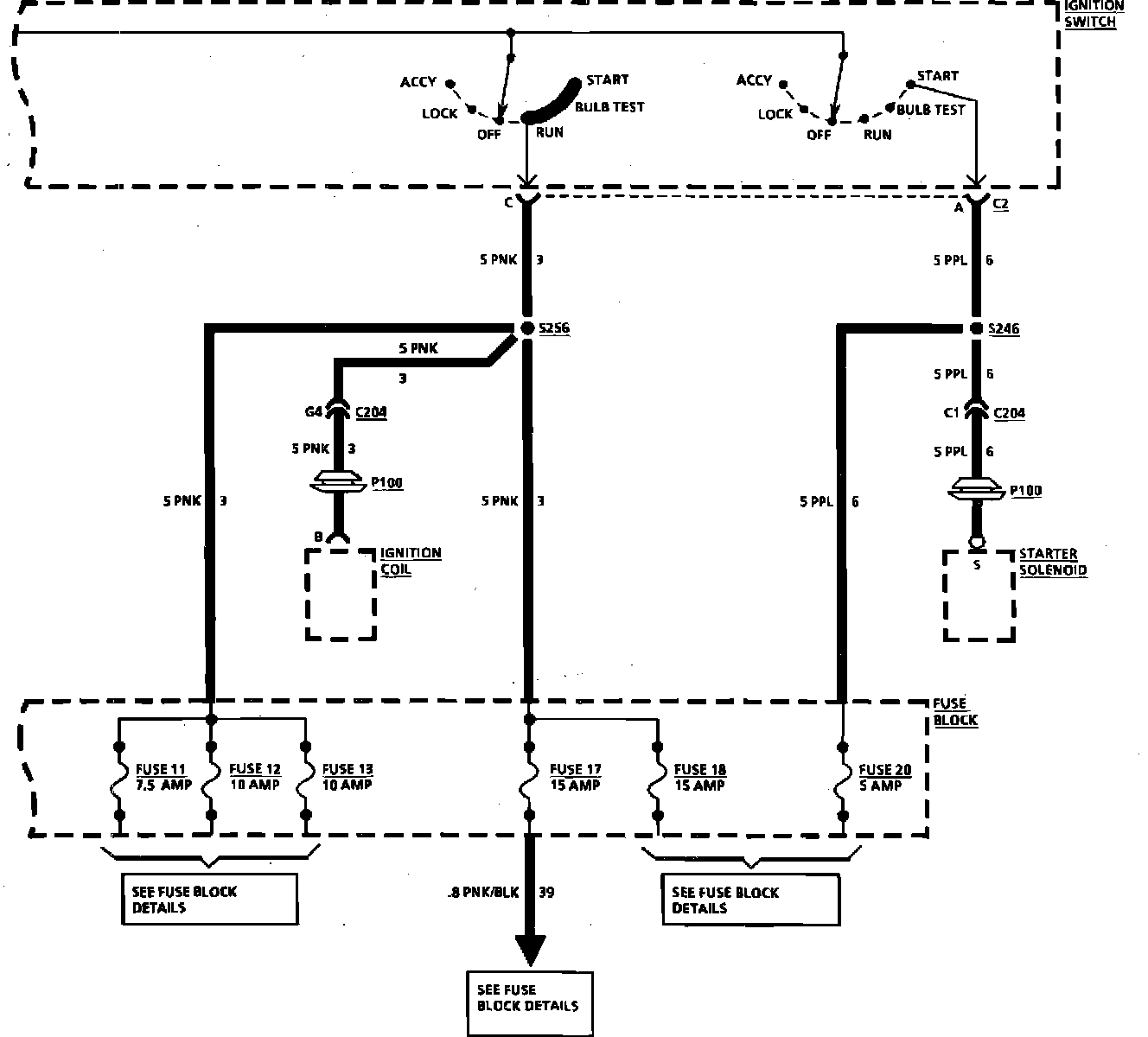

Power Distribution. Wagon:
