Service Engine Soon Indicator, ALDL Connector & ECM Ground
Service Engine Soon Indicator, ALDL Connector & ECM Ground

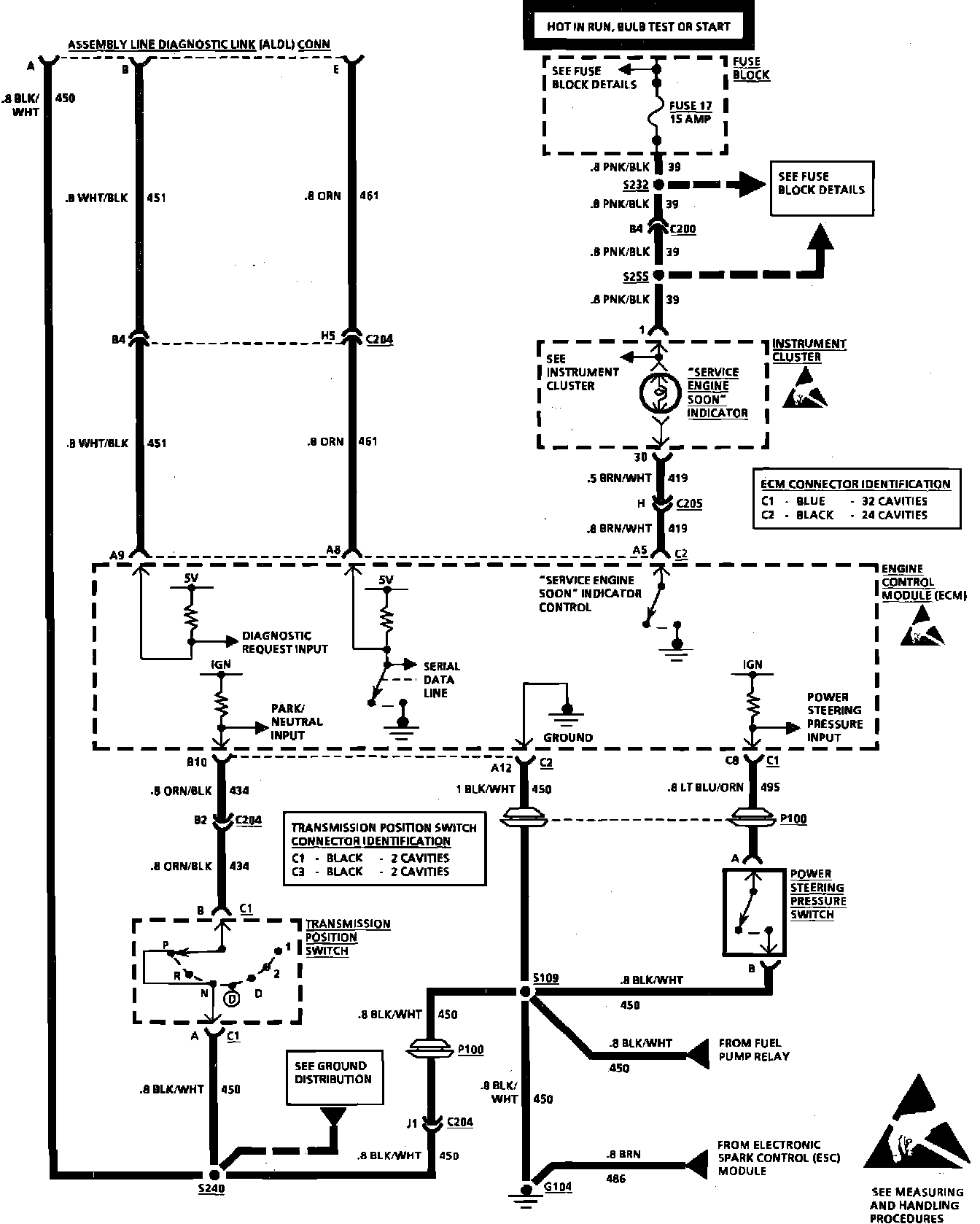

Fuel Injection (ALDL Connector, ECM Ground & Service Engine Soon Indicator):
