Vacuum and Vapor Hose Diagrams
>>
Heating and Air Conditioning
Heating and Air Conditioning

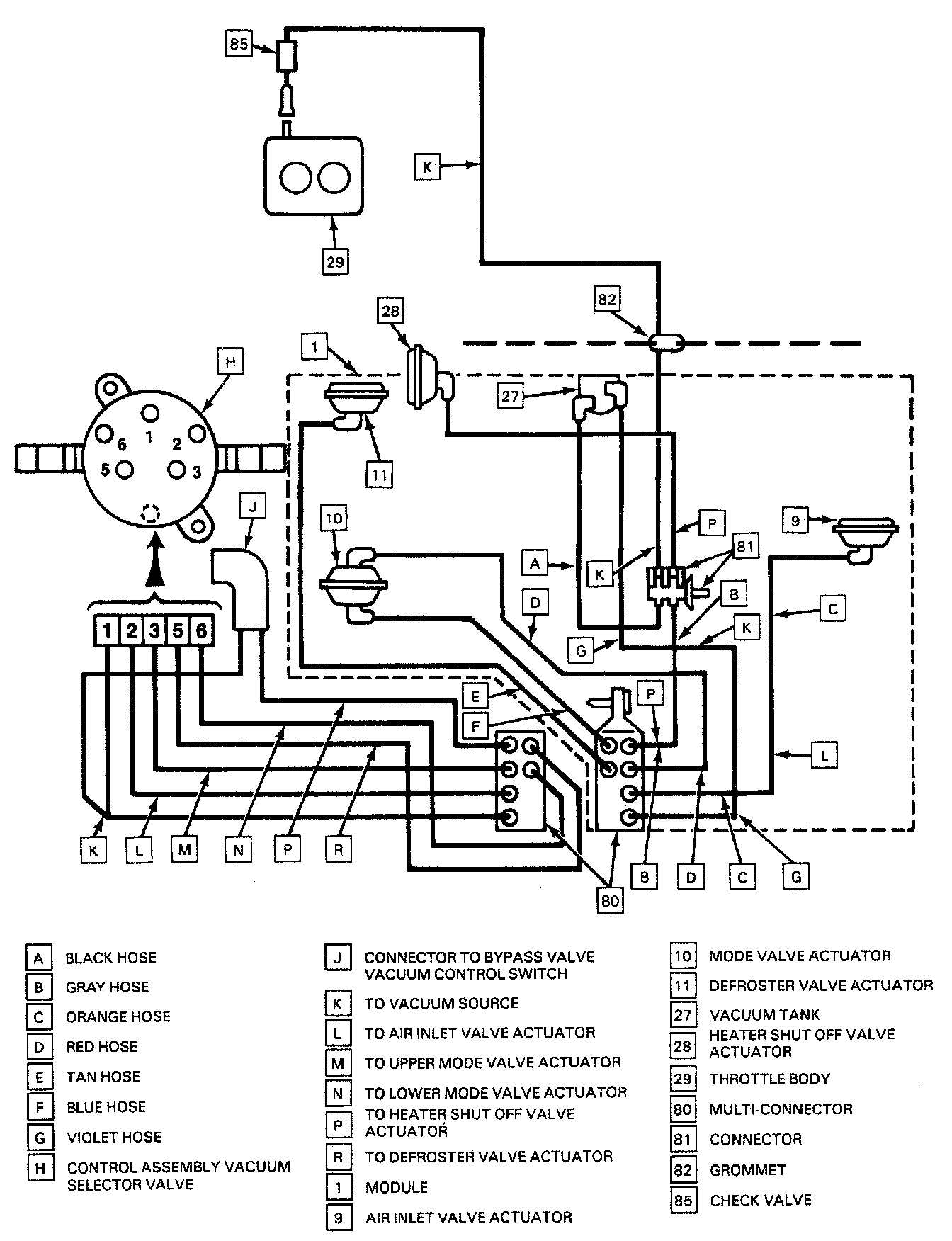

A/C & Heater Vacuum Circuit (Manual A/C):
A/C & Heater Vacuum Circuit (Manual A/C):
A/C & Heater Vacuum Circuit (Manual A/C):
