Center Mounted Brake Lamp: Testing and Inspection

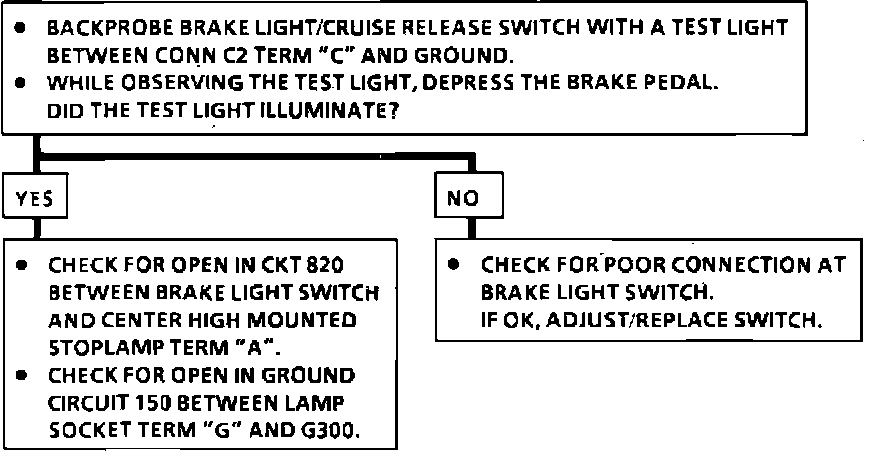

Chart #10 - Center High Mounted Stoplamp Inoperative:
