Direct Ignition System
Direct Ignition System

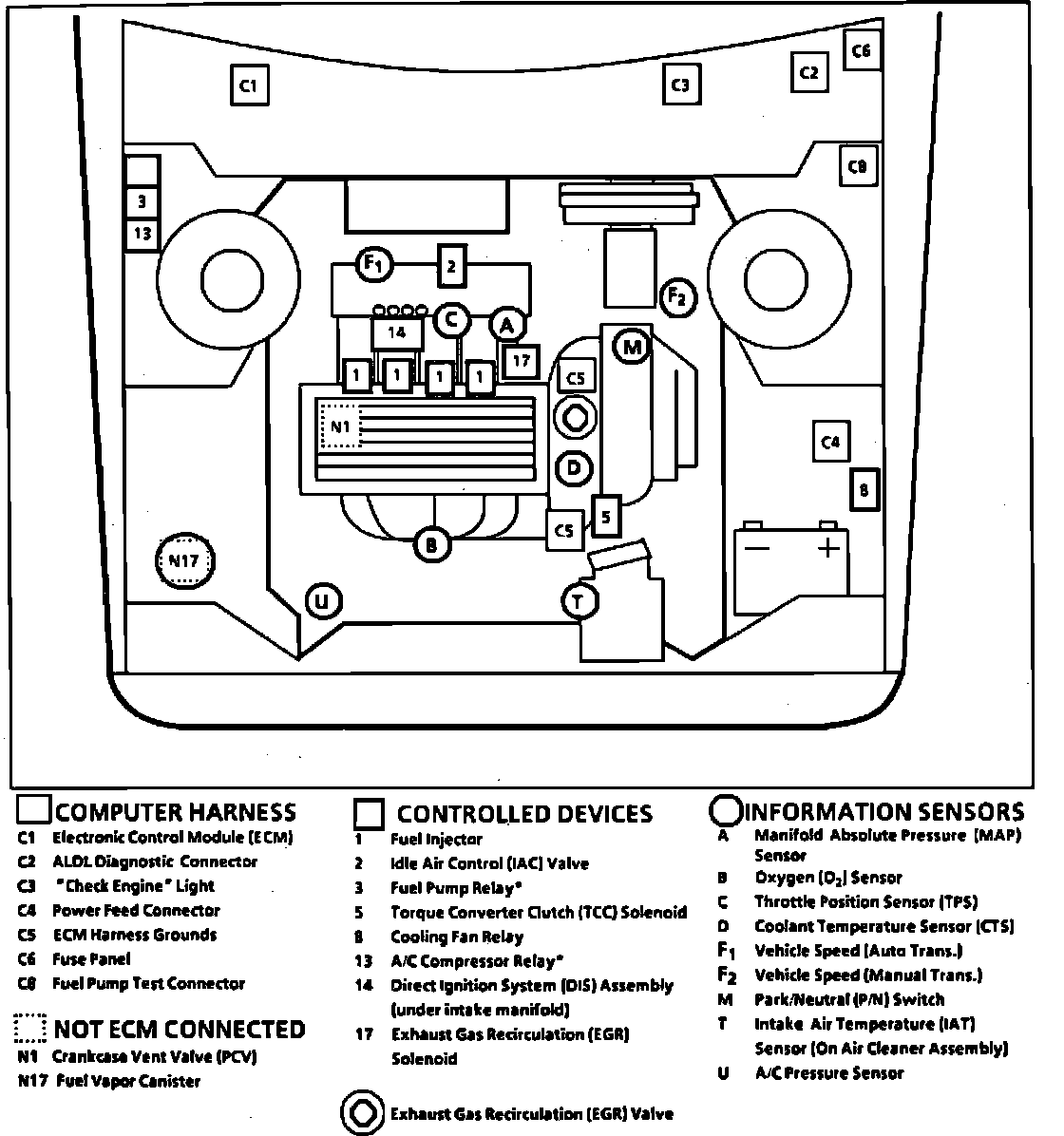

Engine Component Locations.:
RH Rear Of Engine, Above Starter Solenoid
Applicable to: 1992 Cavalier w/2.2L/4-134
