Home >> Chevrolet >> 1992 >> Cavalier/Z24 L4-134 2.2L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Console >> Except Coupe

Except Coupe

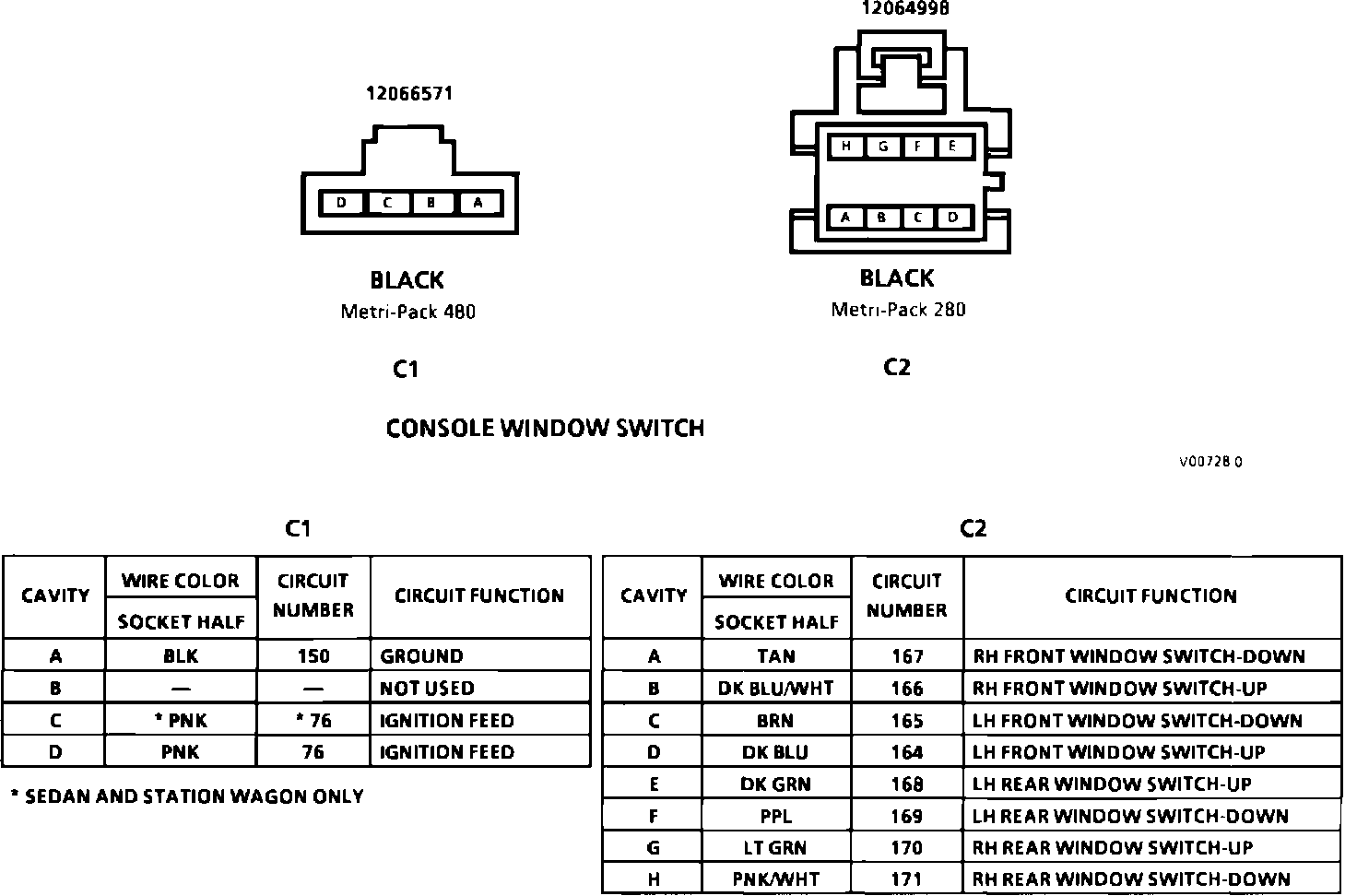

Console Window Switch (All Except Coupe):
