Home >> Chevrolet >> 1992 >> Cavalier/Z24 L4-134 2.2L >> Repair and Diagnosis >> Instrument Panel, Gauges and Warning Indicators >> Temperature Sensor (Gauge) >> Locations

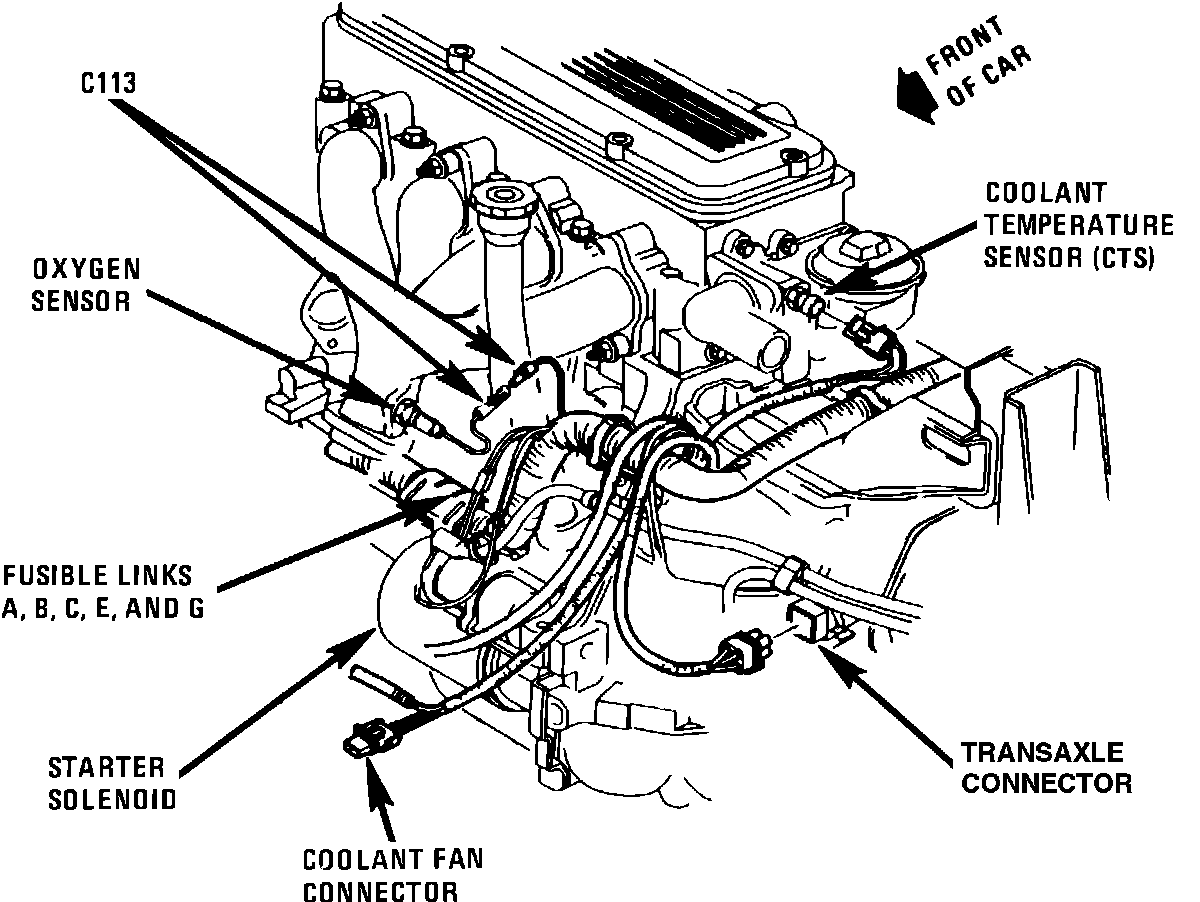

Temperature Sensor (Gauge): Locations

Engine Sensors:



LH Front Of Engine:
