Home >> Chevrolet >> 1992 >> Cavalier/Z24 L4-134 2.2L >> Repair and Diagnosis >> Power and Ground Distribution >> Diagrams >> Electrical Diagrams >> Power, Grounds and "Service Engine Soon" Indicator

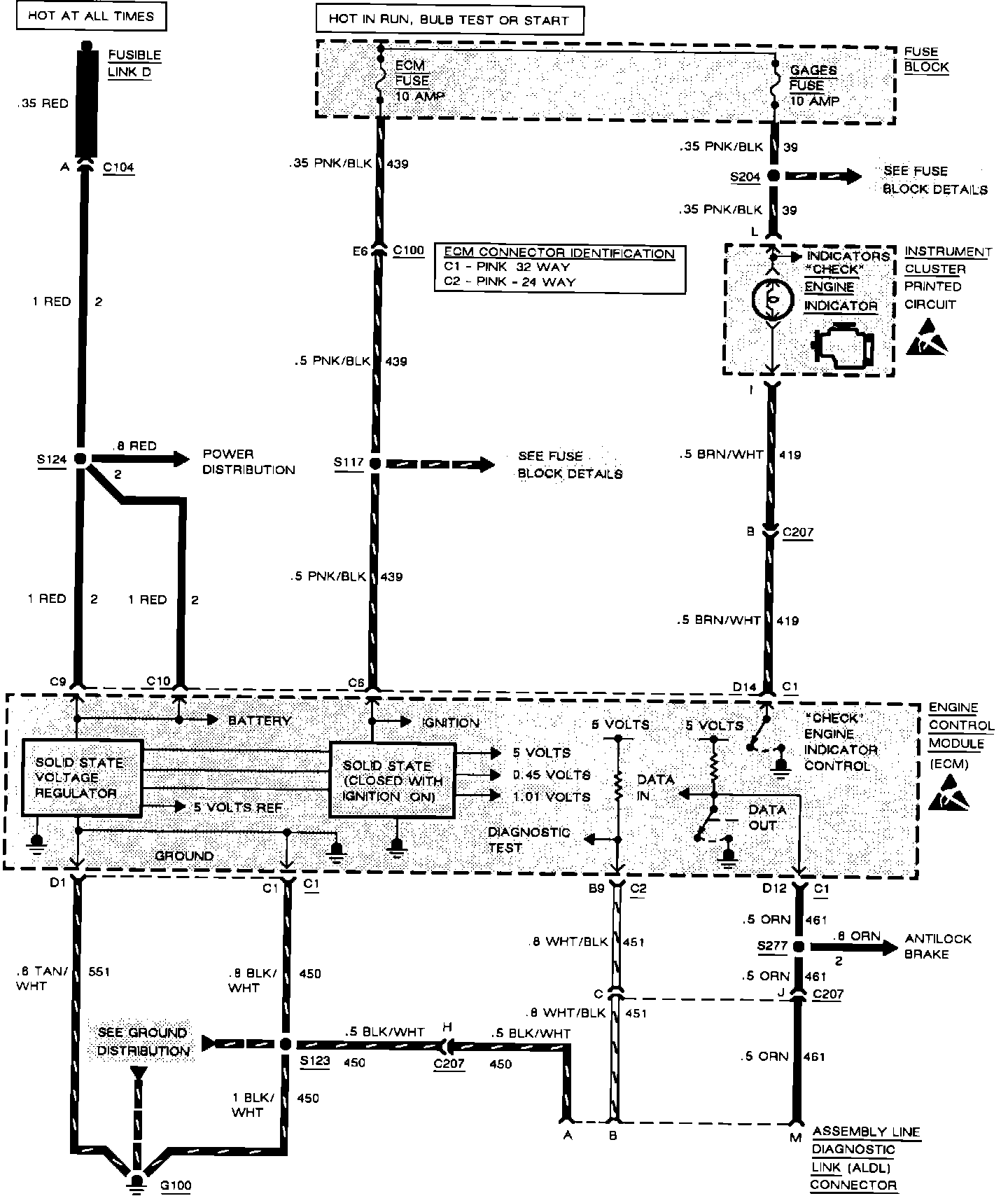

Power, Grounds and "Service Engine Soon" Indicator

MFI: Power, Grounds And "CHECK" Engine Indicator:
