System Specifications

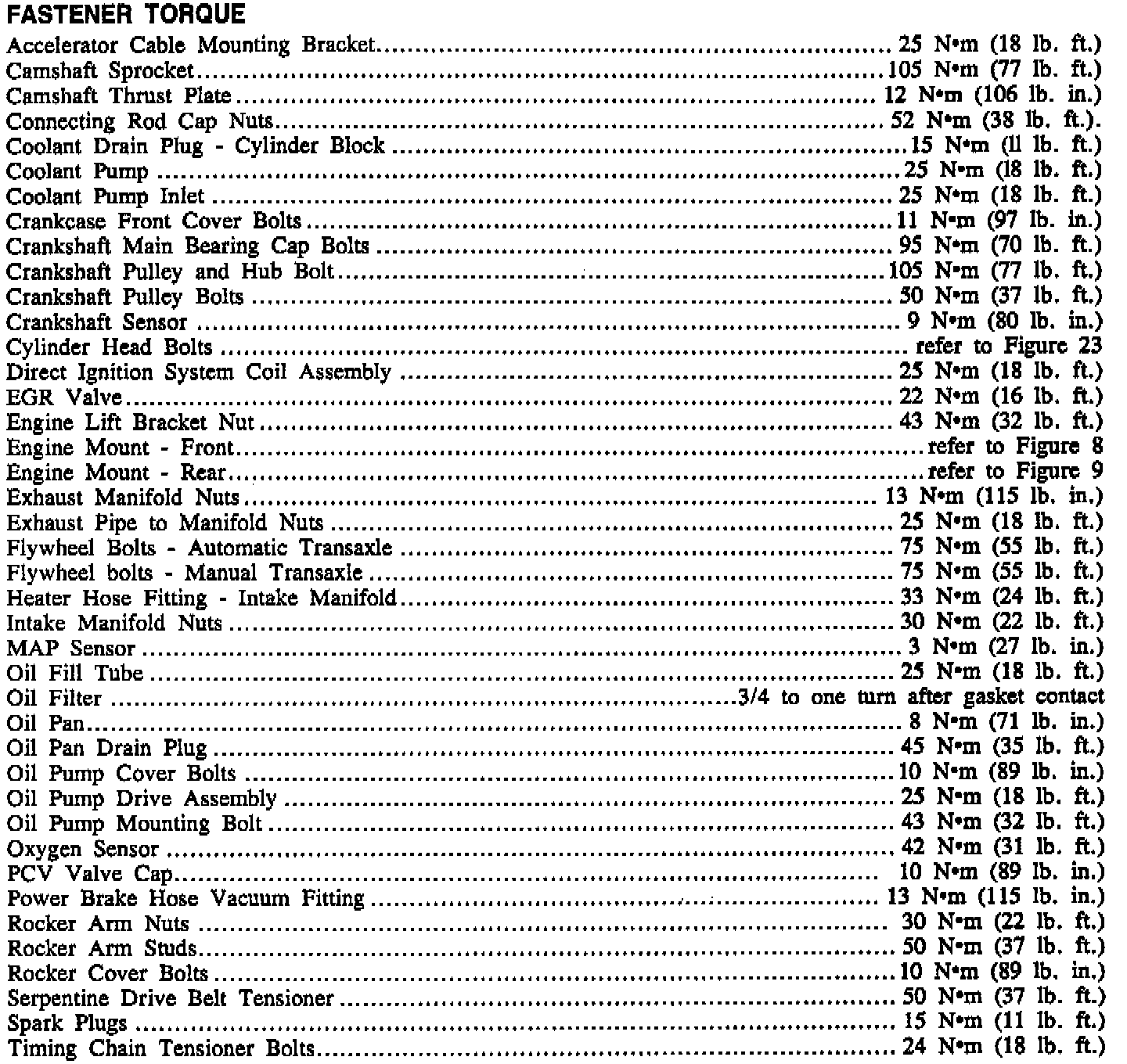

Torque Specifications:

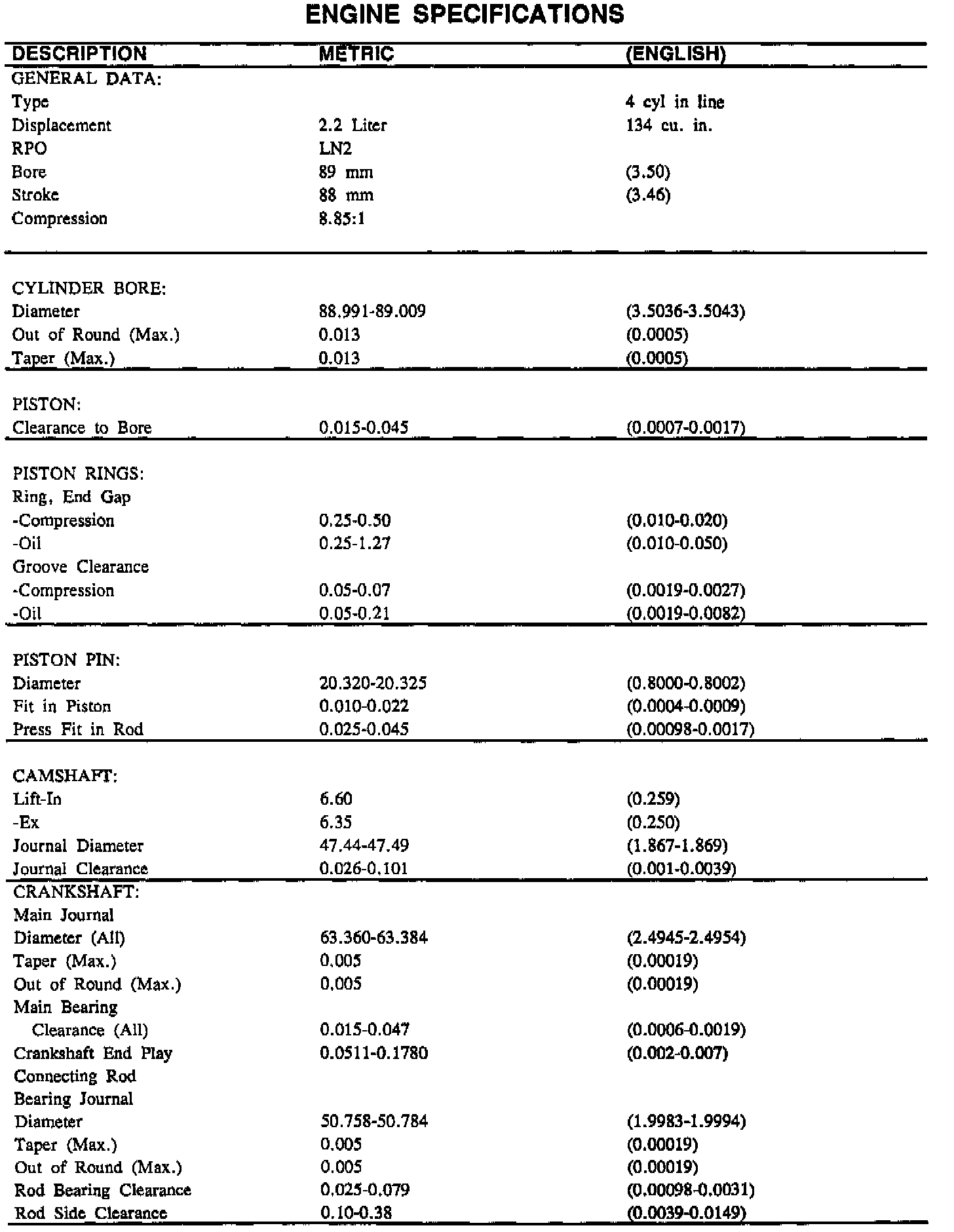

Engine Specifications:




Engine Specifications (continued):






Cylinder Head Sequence:






Intake Manifold Sequence:
