Radiator Cooling Fan Motor
Radiator Cooling Fan Motor

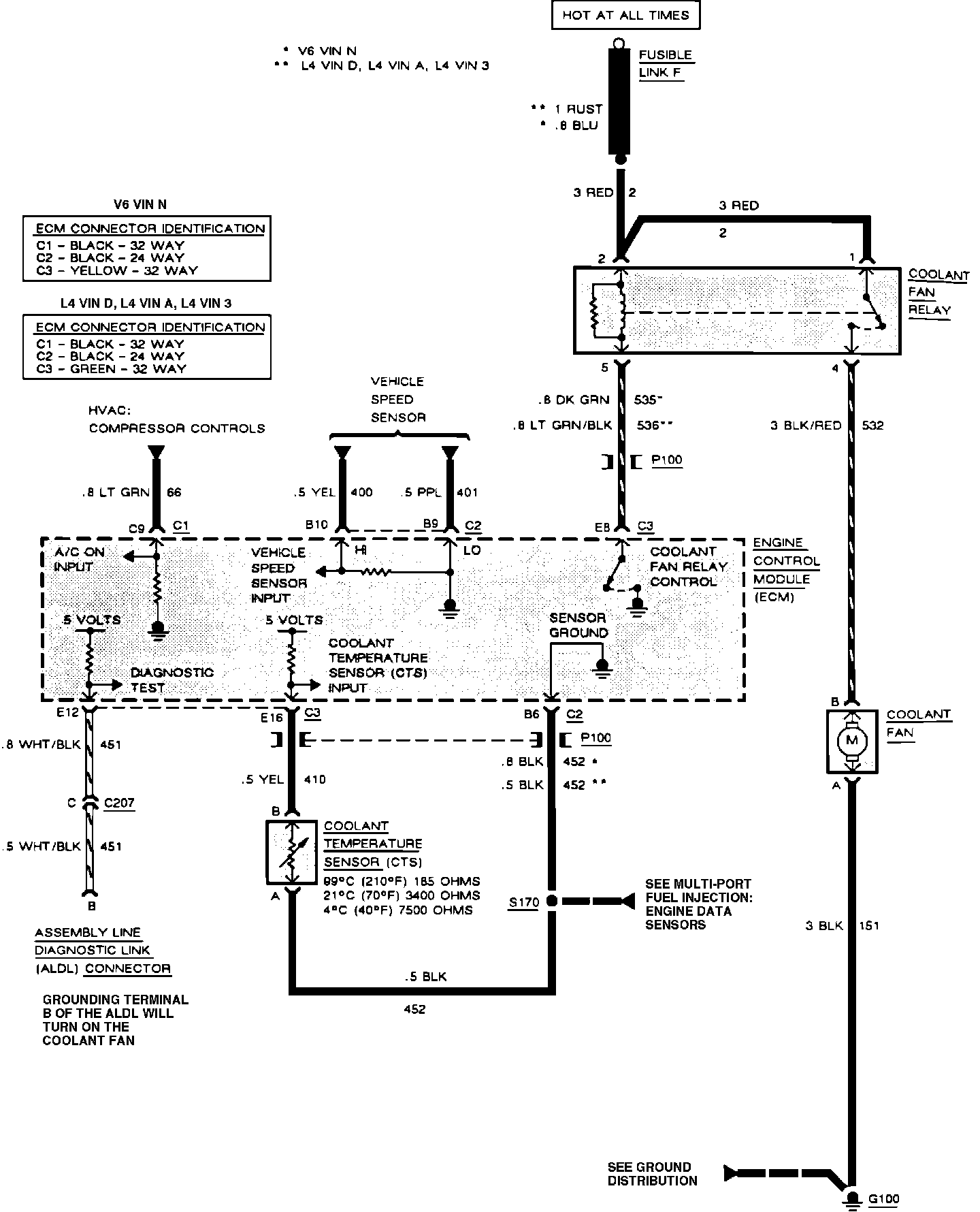

Coolant Fan Wiring Circuit. w/3.1L/V6-192 Engine:
