Home >> Chevrolet >> 1992 >> Corsica V6-191 3.1L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Lighting and Horns >> Map Light

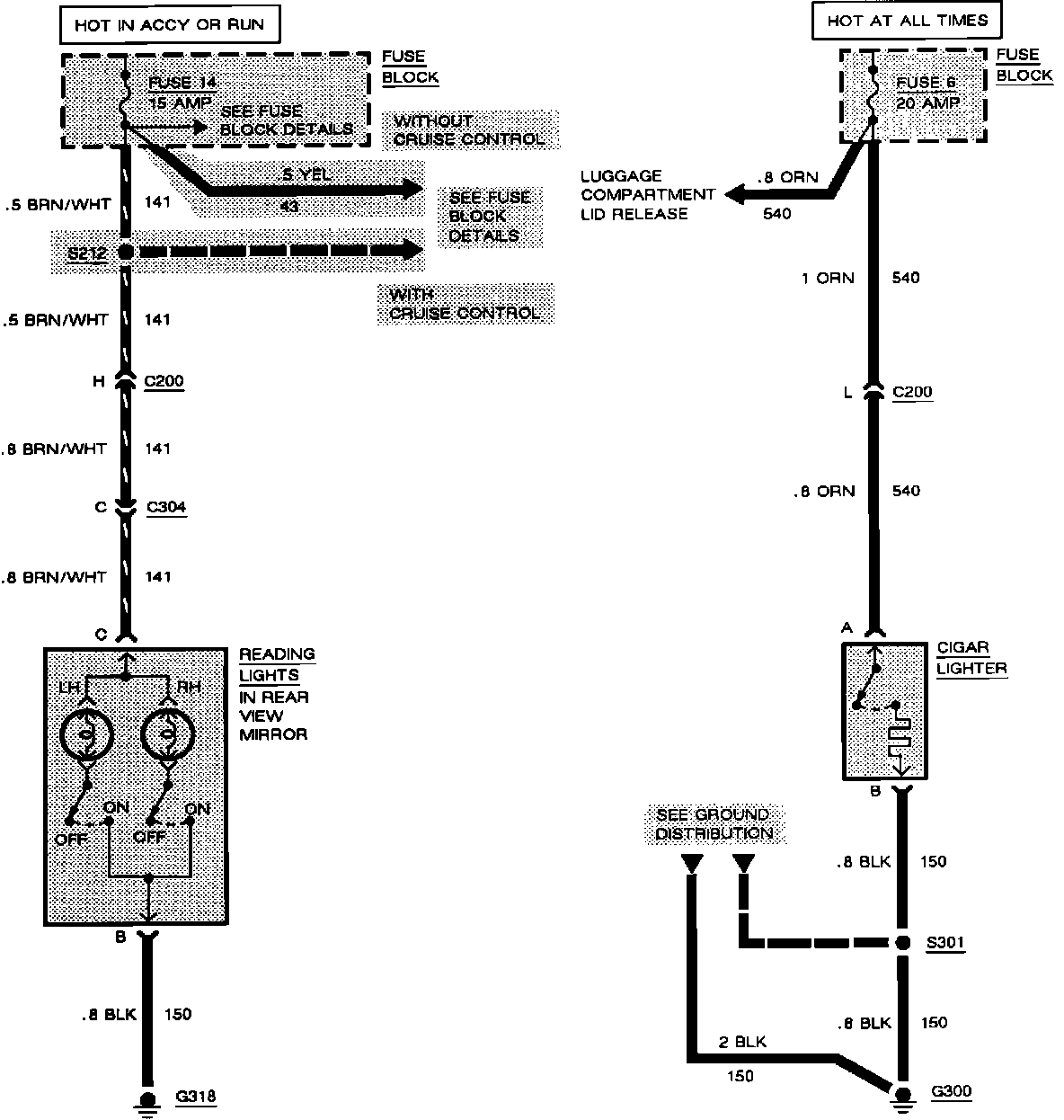

Map Light

Interior Lights: Reading/Cigar Lighter:
