With Gauges Cluster

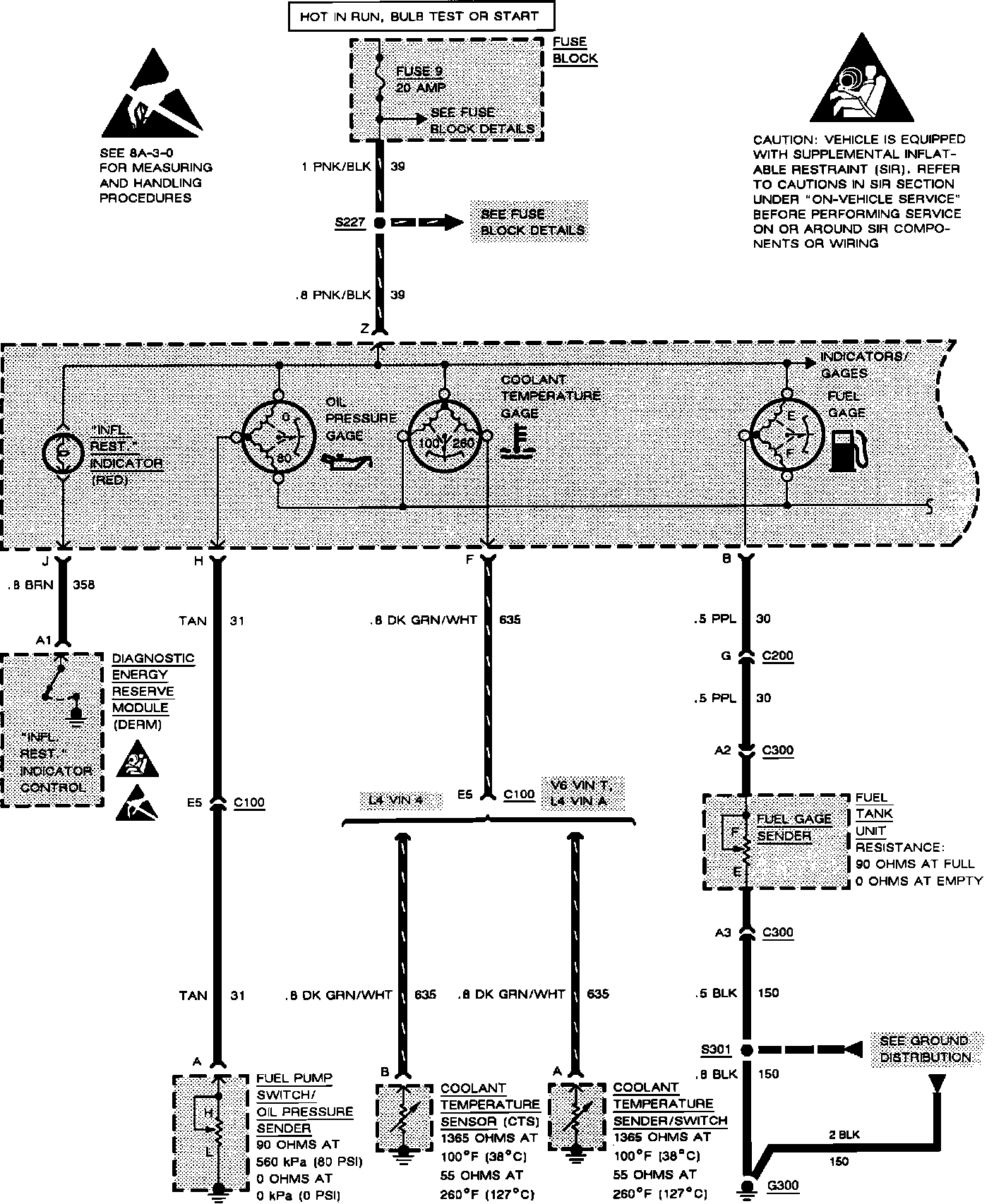

I/P Gages Cluster:

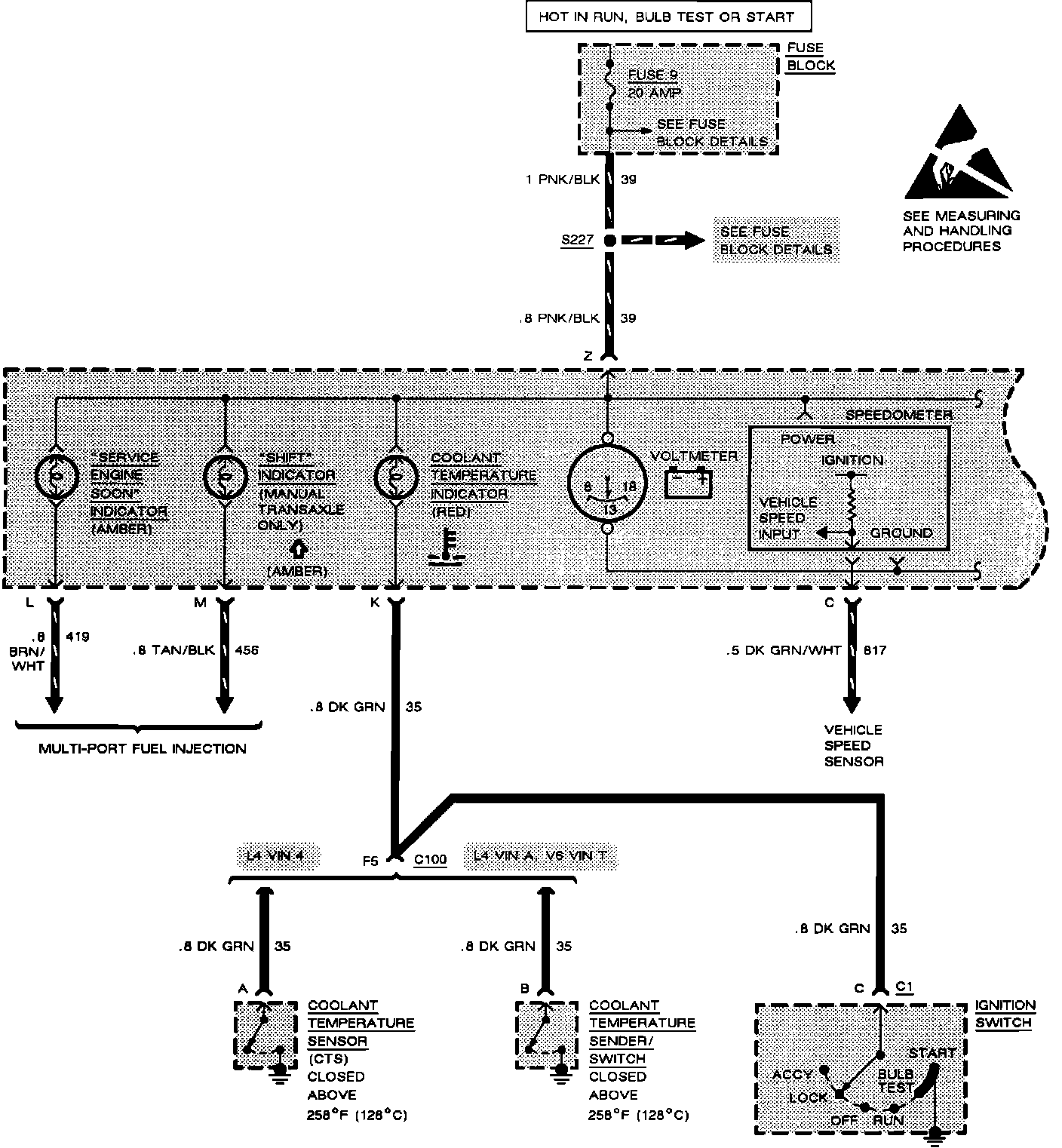

I/P Gages Cluster:

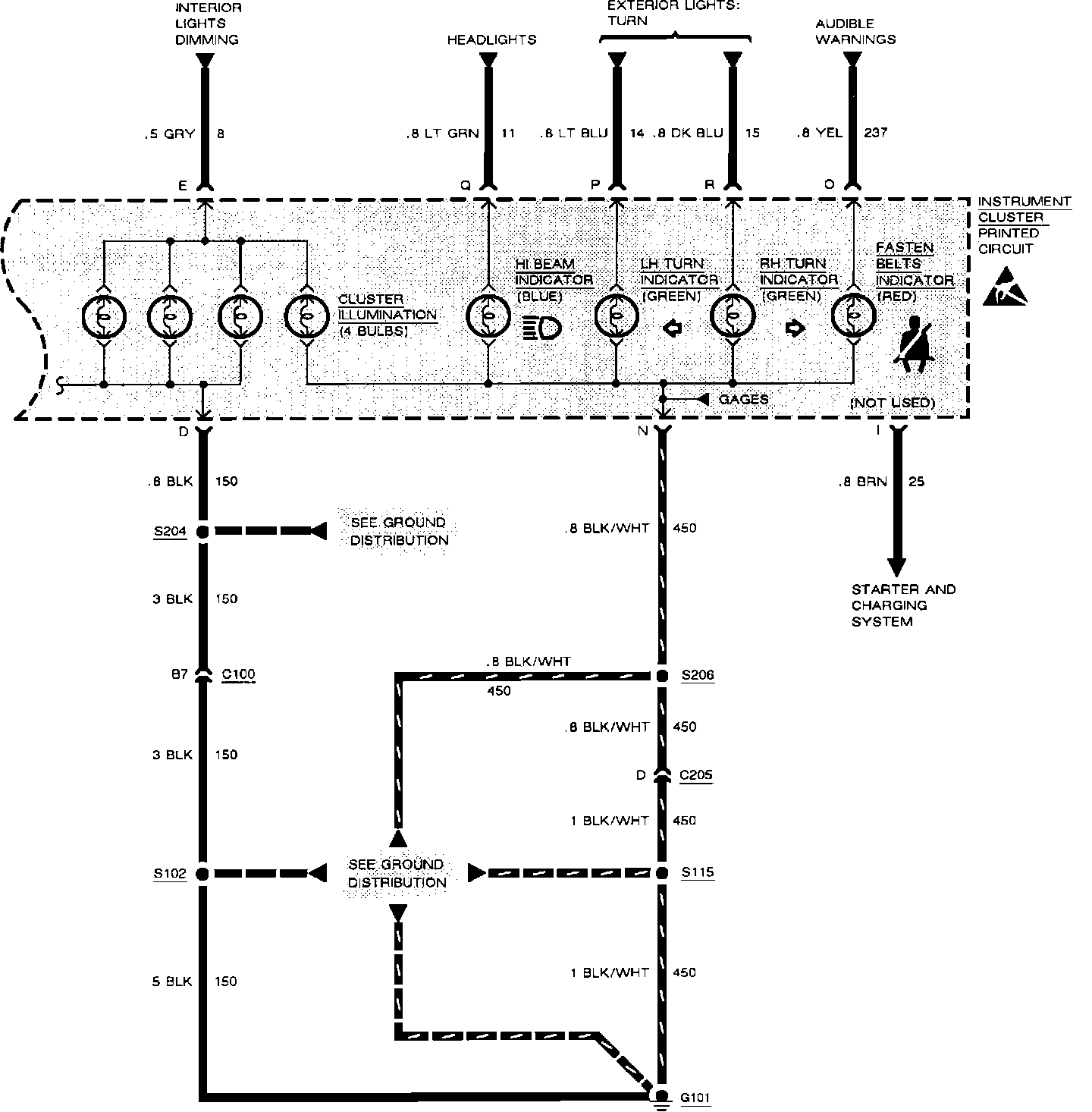

I/P Gages Cluster:

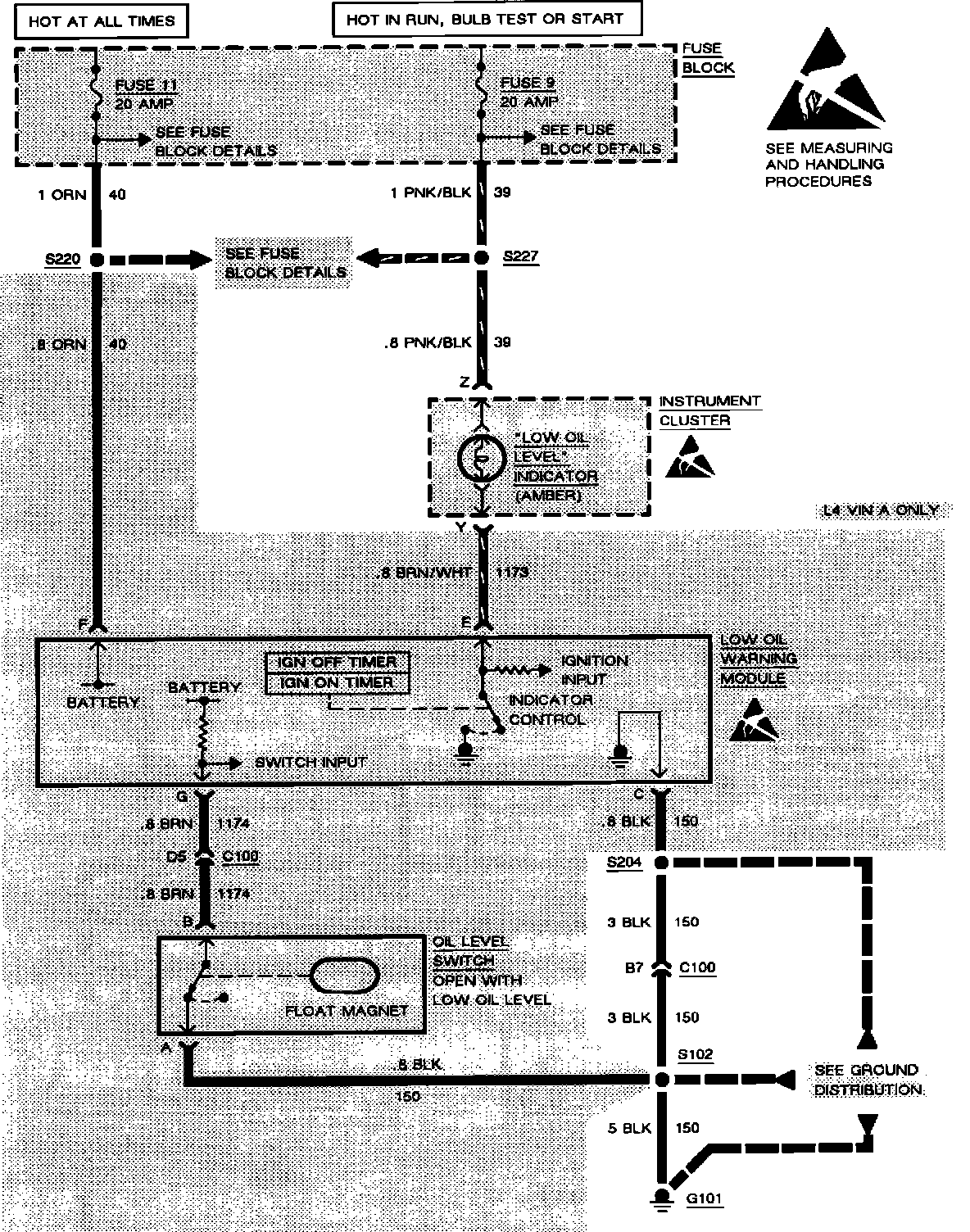

I/P Gages Cluster:



I/P Gages Cluster:
