Oil Level Warning Indicator: Testing and Inspection

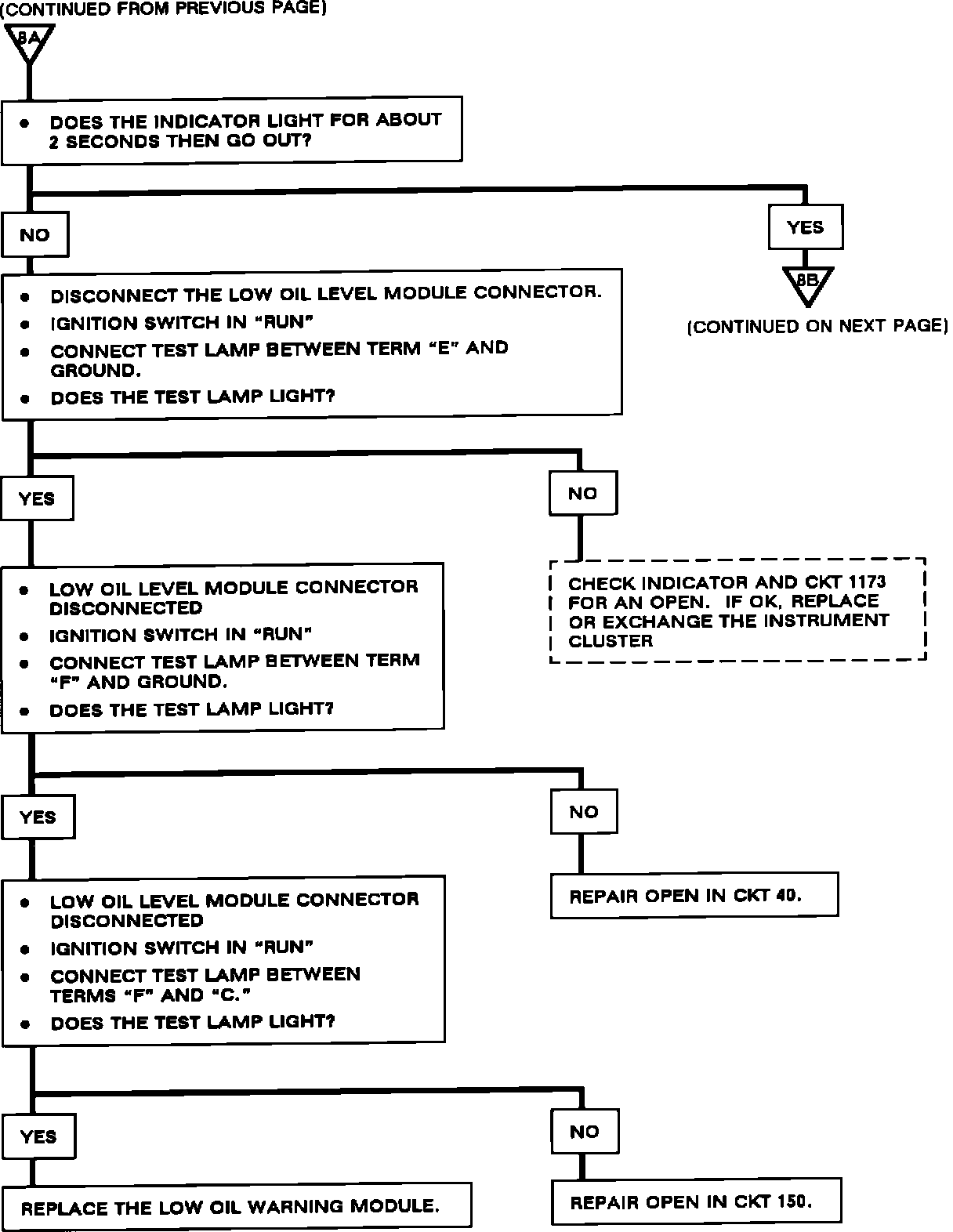

Chart #8 - Low Oil Level Indicator Does Not Operate Properly:

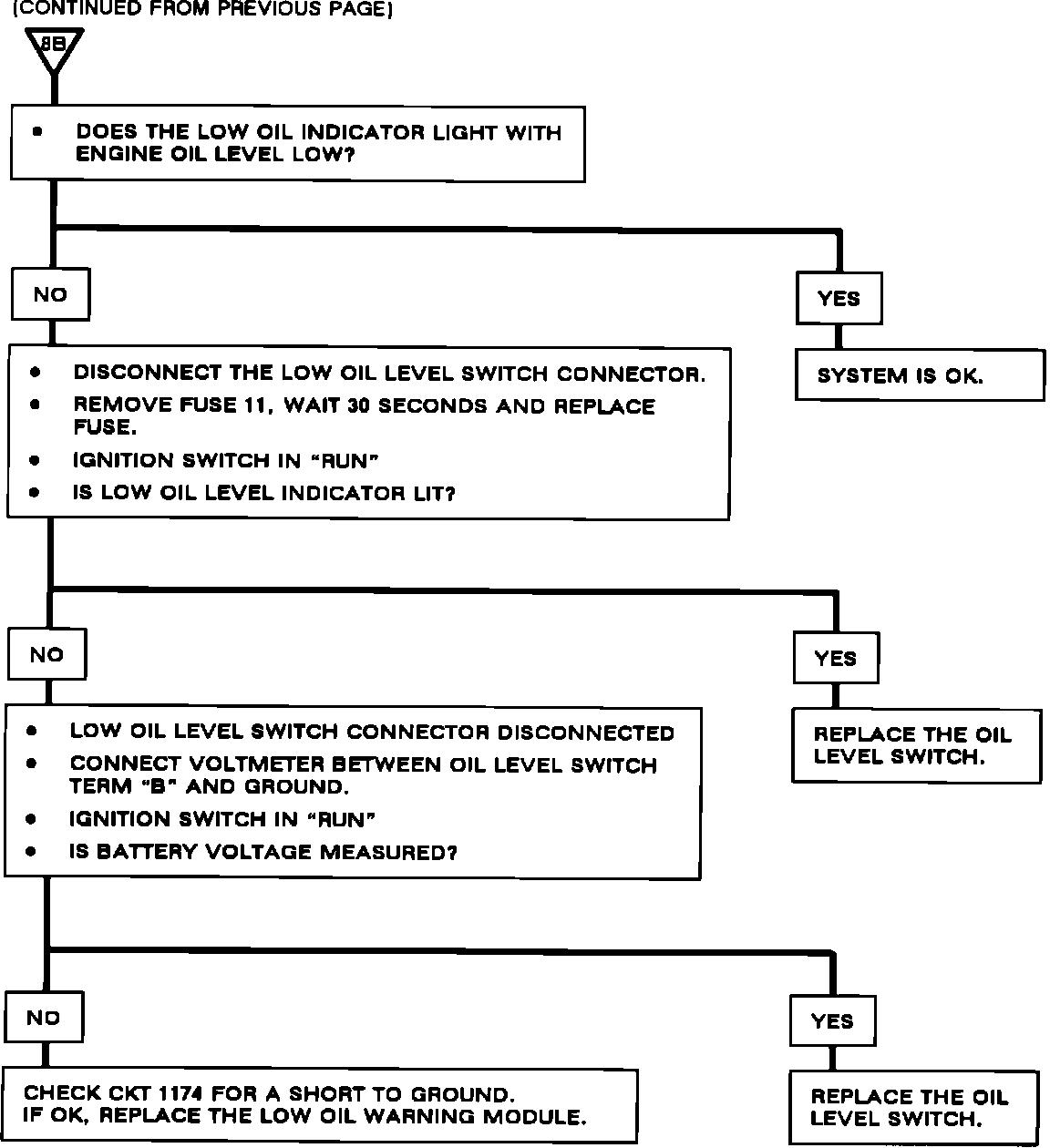

Chart #8 - Low Oil Level Indicator Does Not Operate Properly:

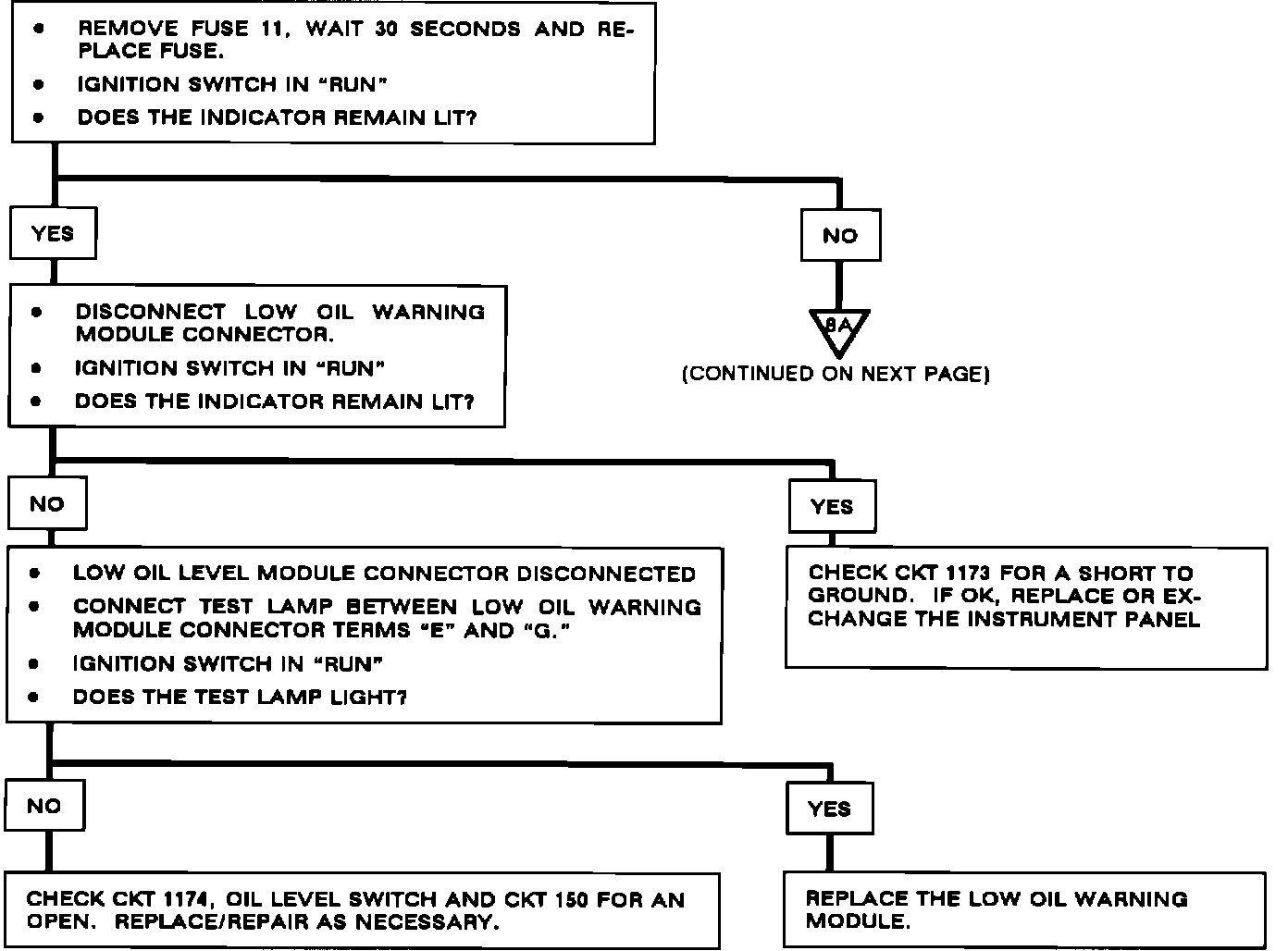

Chart #8 - Low Oil Level Indicator Does Not Operate Properly:
