Home
>>
Chevrolet
>>
1992
>>
Corsica V6-191 3.1L
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Multiple Junction Connector
>>
Diagrams
Multiple Junction Connector: Diagrams

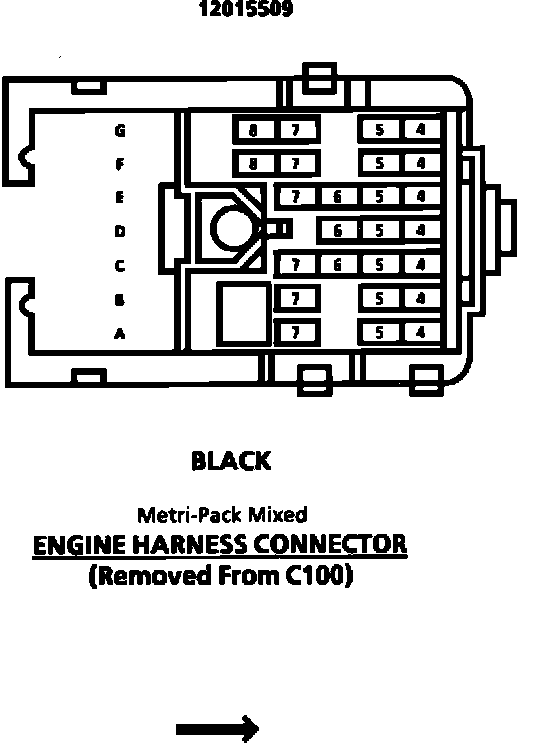

Engine Harness Connector:
Engine Harness Connector:
