Engine Controls & "Service Engine Soon" Indicator

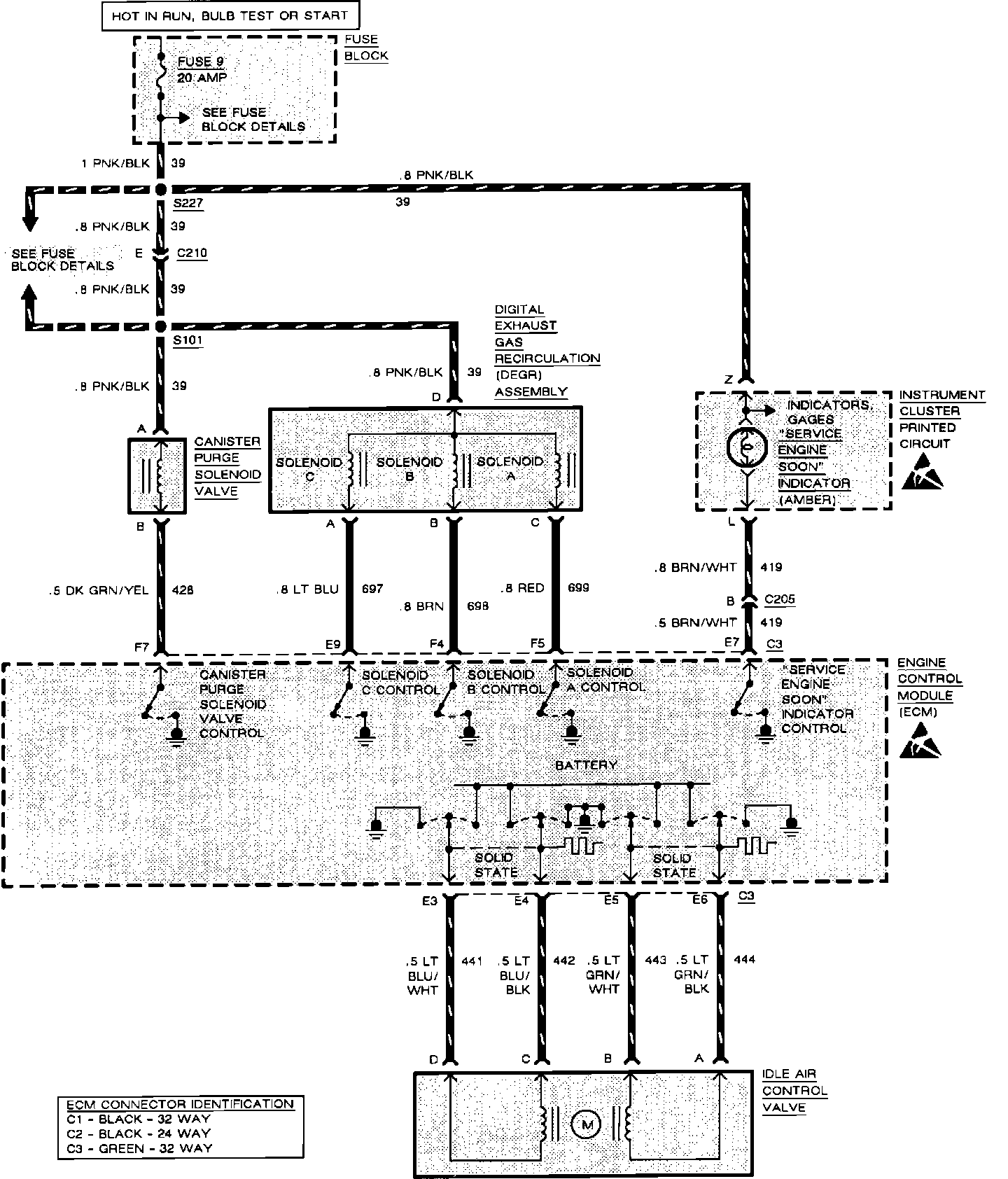

MFI: Engine Controls And "SERVICE ENGINE SOON" Indicator:
