Radiator Cooling Fan Motor
Radiator Cooling Fan Motor

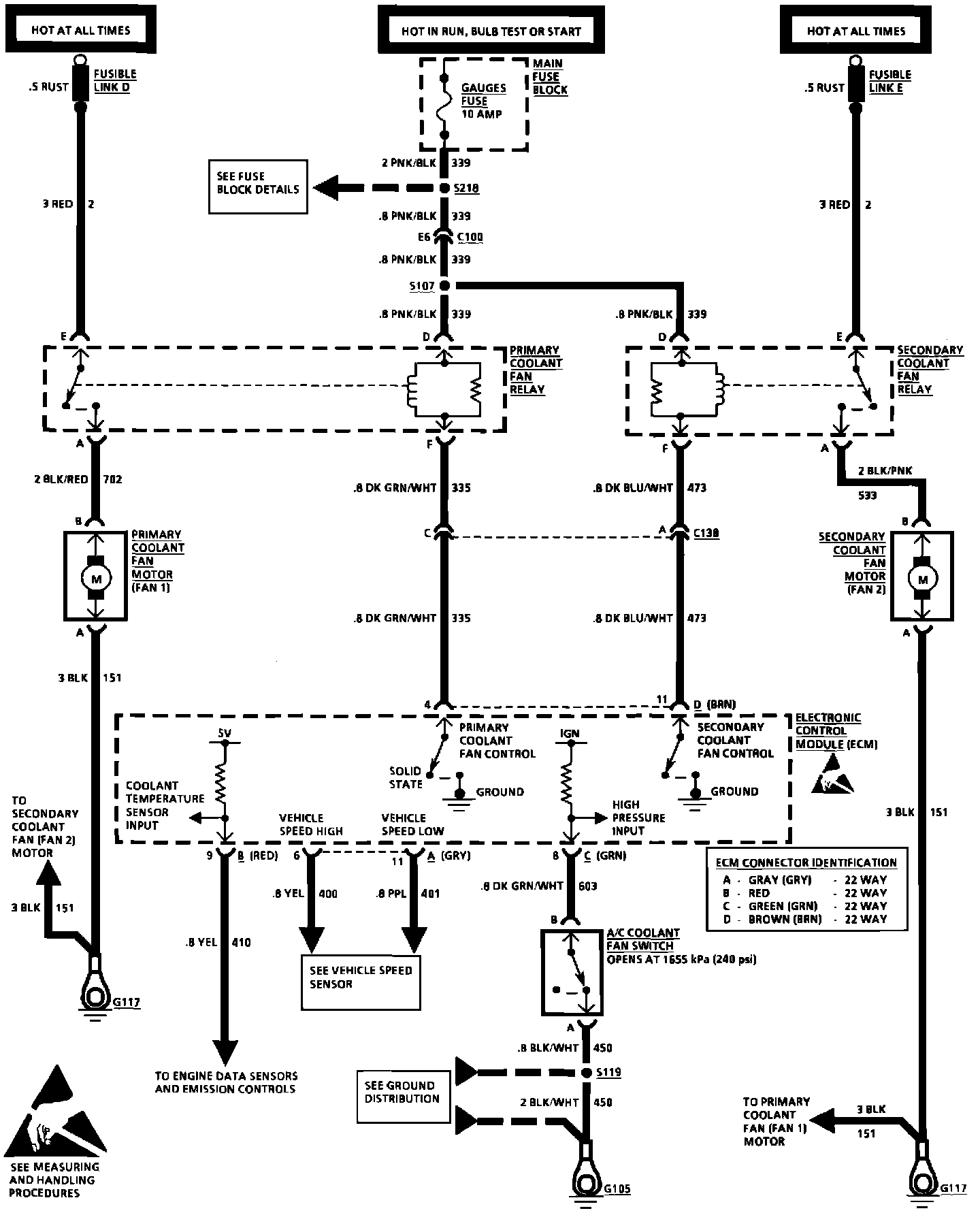

Coolant Fan Wiring Circuit. 1992 Corvette ZR1 w/5.7L/V8-350 (VIN J) Engine:

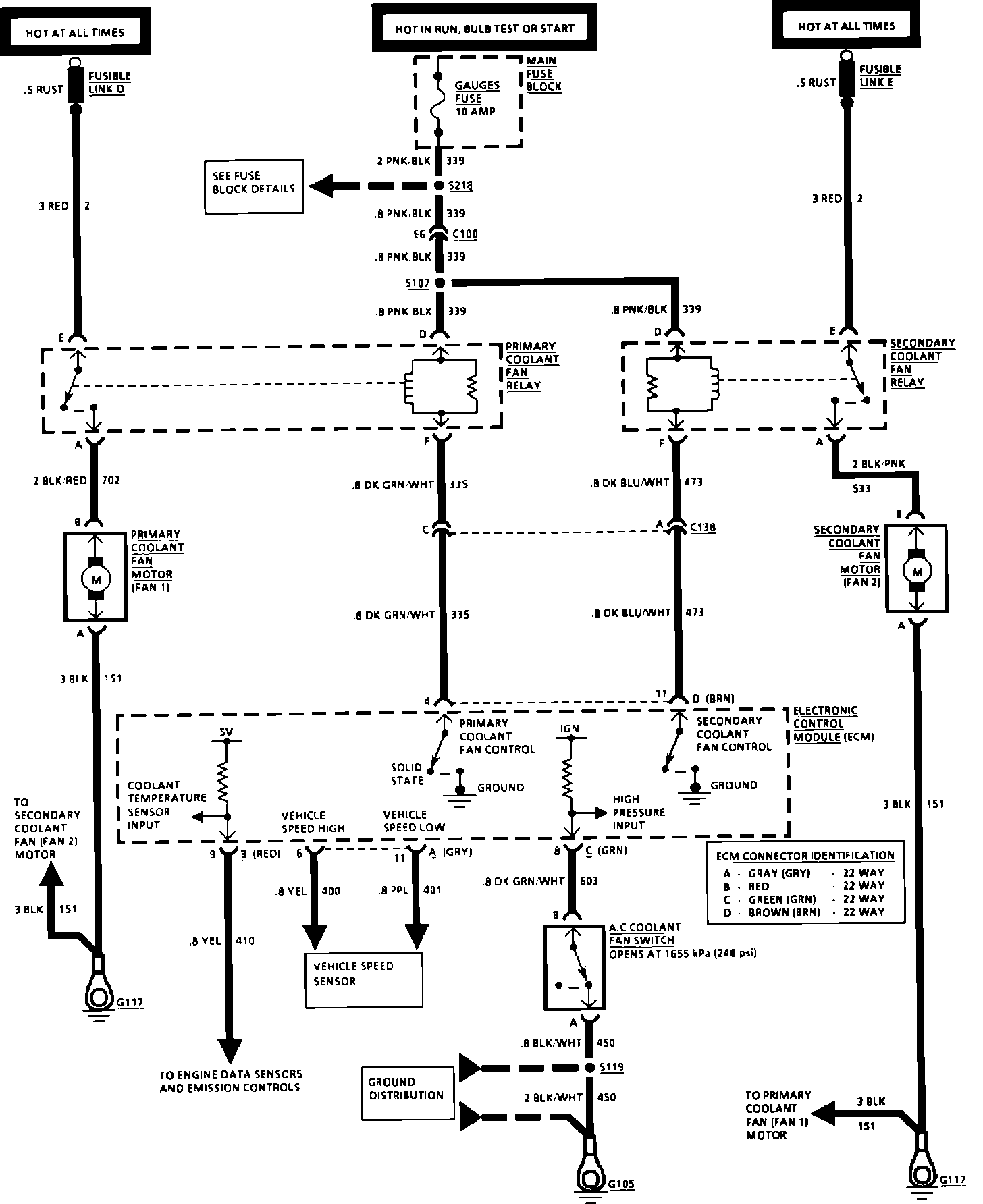

Cooling Fans:
