Operation CHARM
: Car repair manuals for everyone.
Home
>>
Chevrolet
>>
1992
>>
Corvette V8-350 5.7L DOHC VIN J MFI
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Diagrams
>>
Electrical Diagrams
>>

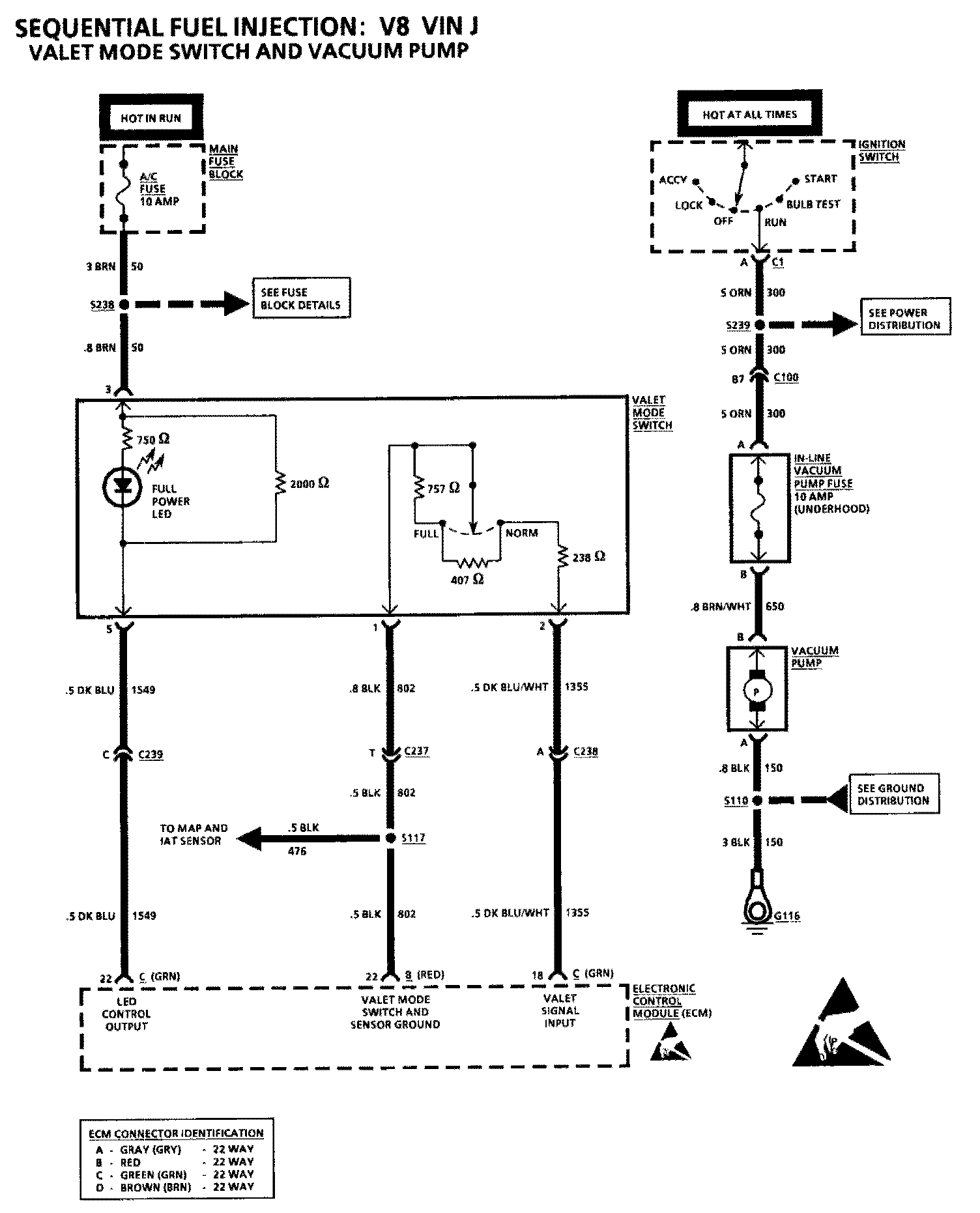

Valet Mode Switch and Vacuum Pump
Valet Mode Switch and Vacuum Pump
Valet Mode Switch and
Vacuum Pump
