Engine Control Module

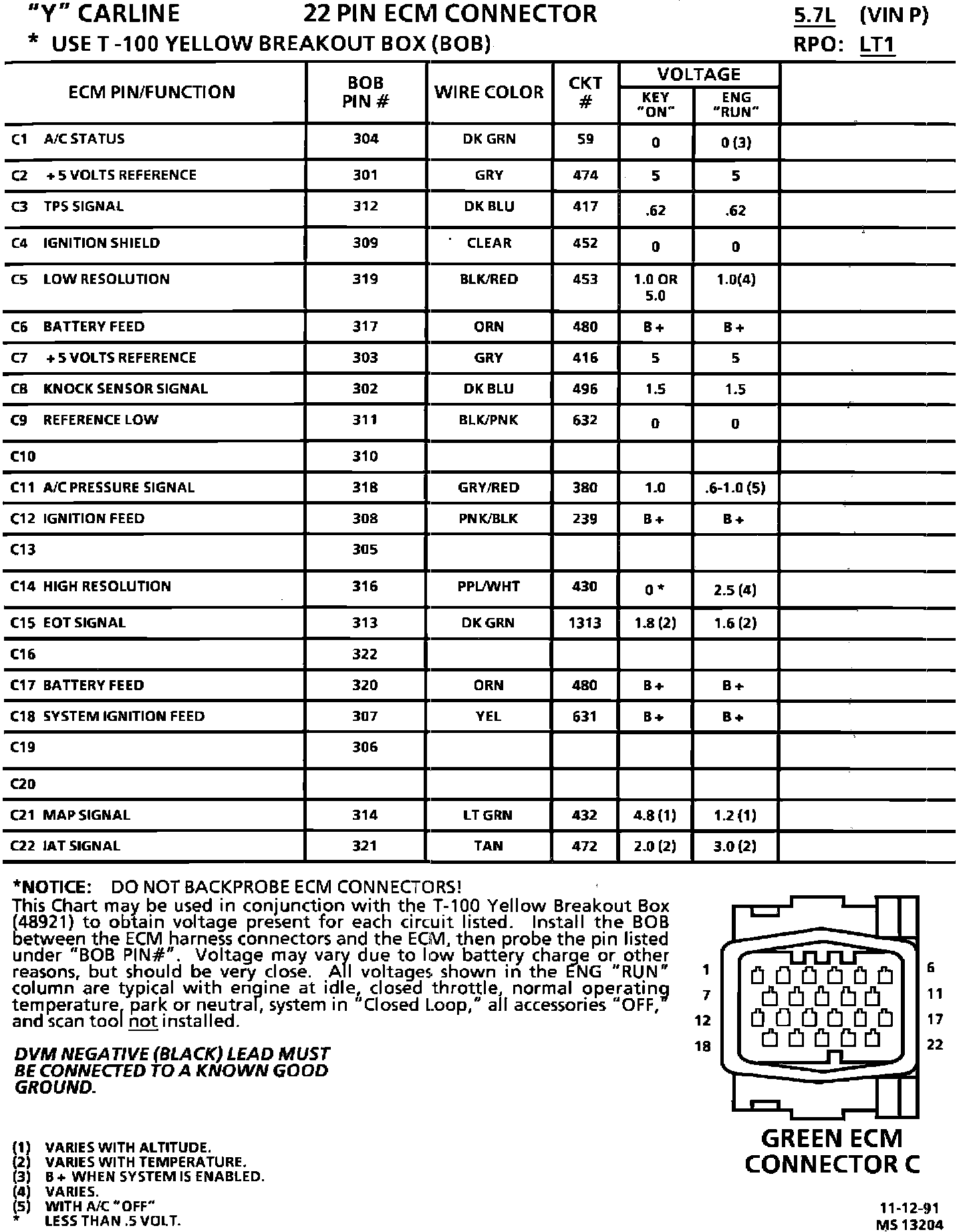

ECM Pin Voltage Chart:



ECM Pin Voltage Chart:



ECM Pin Voltage Chart:



ECM Pin Voltage Chart:
