Operation CHARM
: Car repair manuals for everyone.
Home
>>
Chevrolet
>>
1992
>>
Corvette V8-350 5.7L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Seats
>>

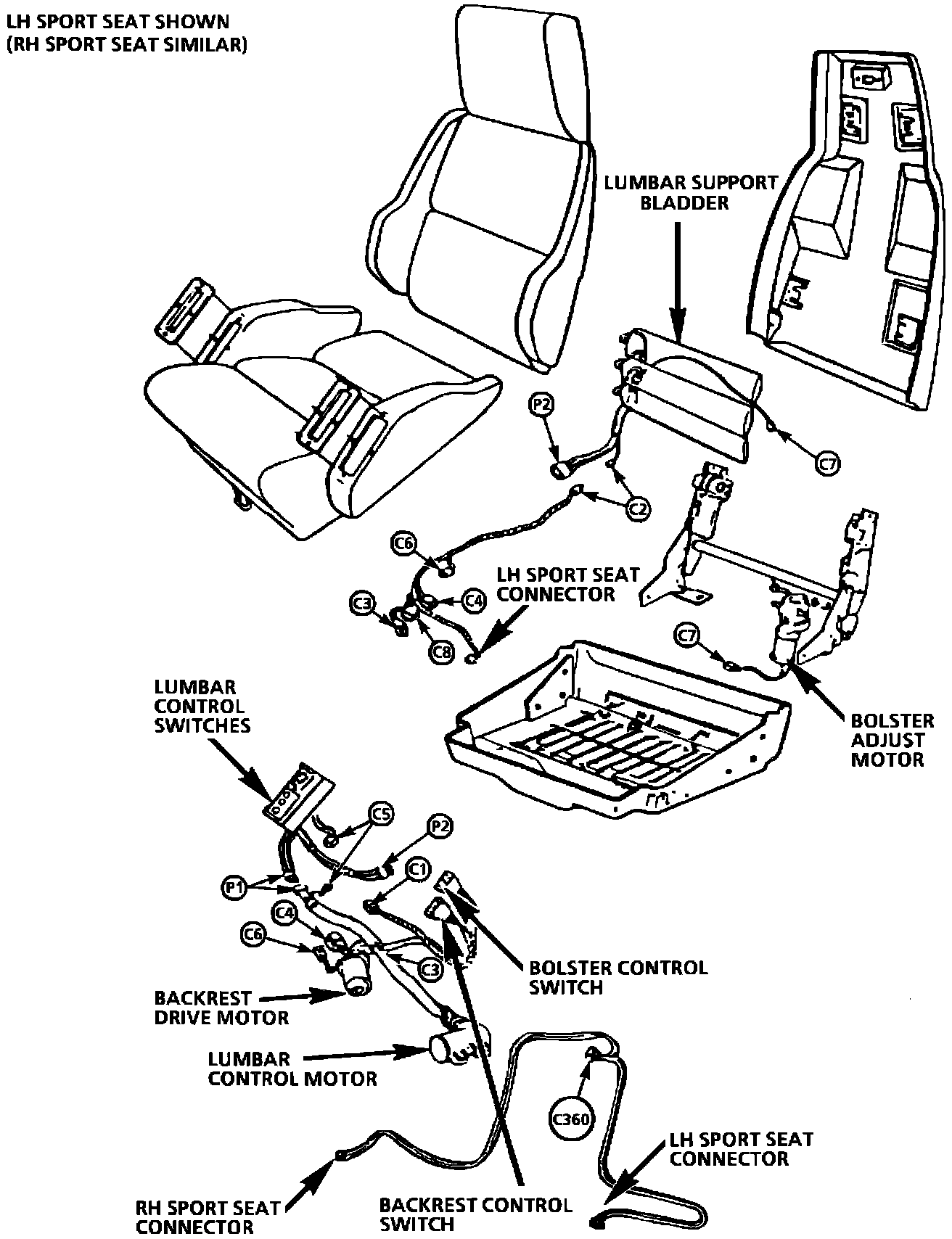

Exploded View
Exploded View
Lumbar Support (LH And RH):
