Ride Control System

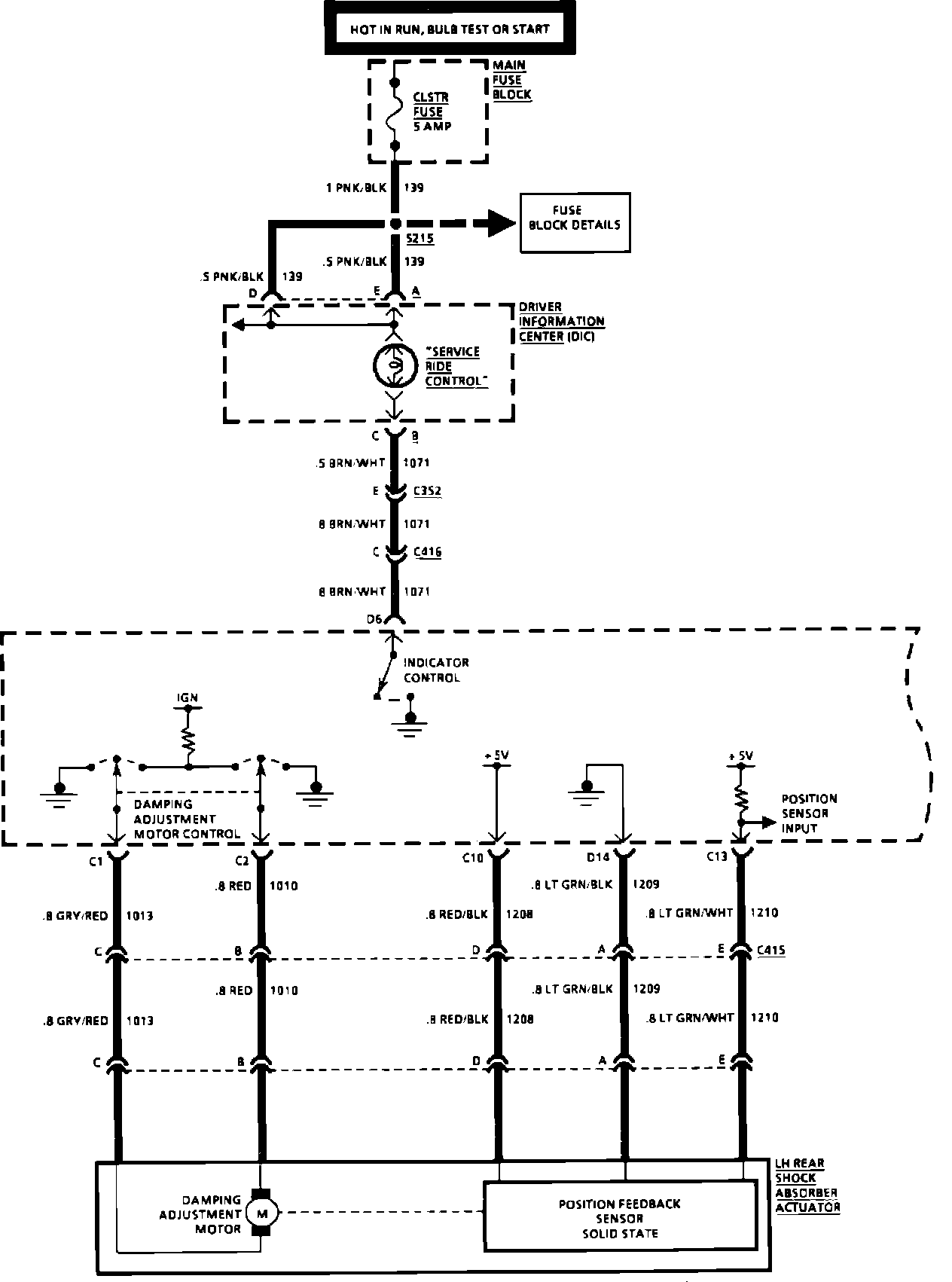

Fig. 9 Selective Ride Wiring Diagram (Part 1 Of 4):

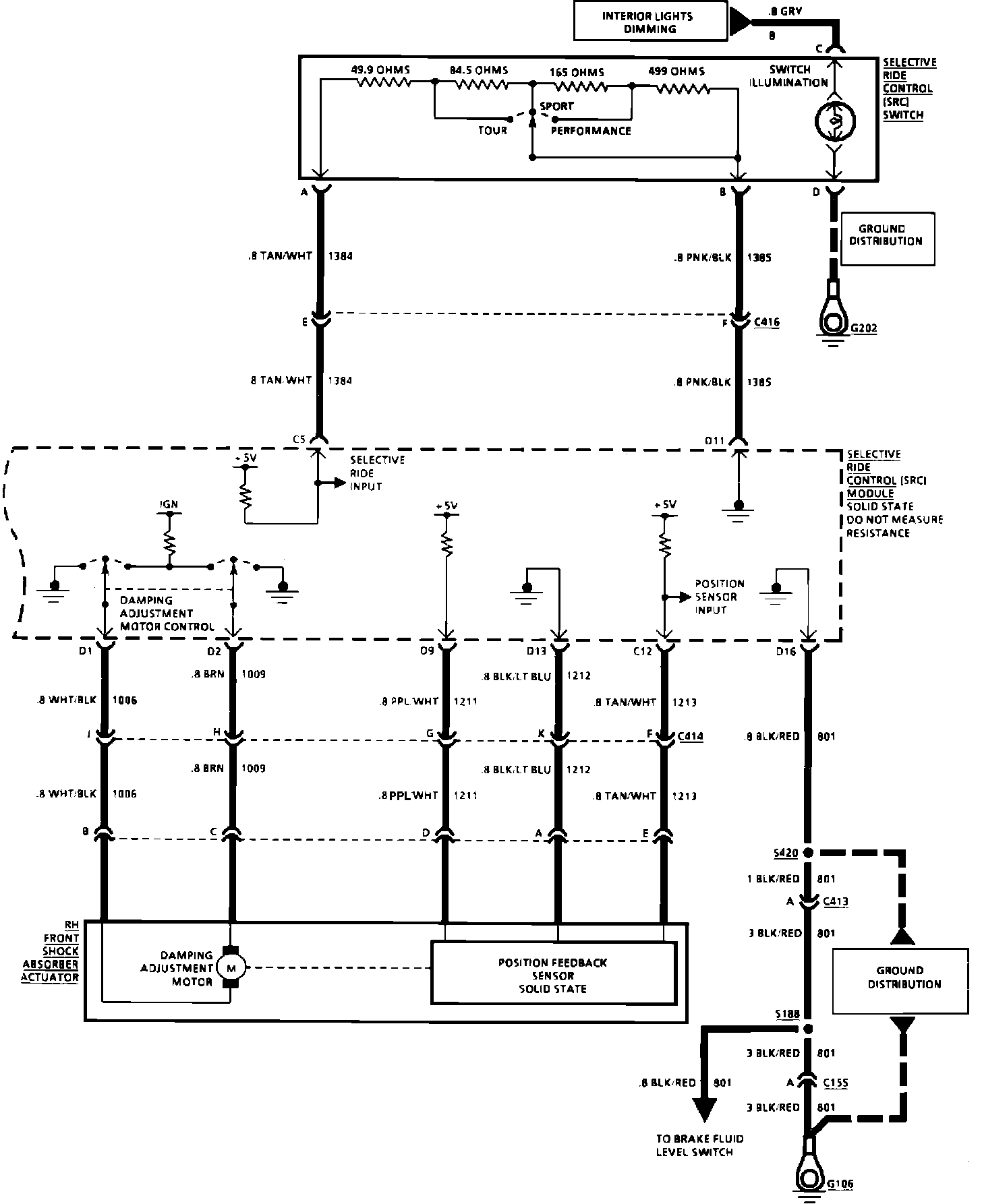

Fig. 9 Selective Ride Wiring Diagram (Part 2 Of 4):

Fig. 9 Selective Ride Wiring Diagram (Part 3 Of 4):

Fig. 9 Selective Ride Wiring Diagram (Part 4 Of 4):
