Stator Assembly

Magnetic Clutch Assembly:

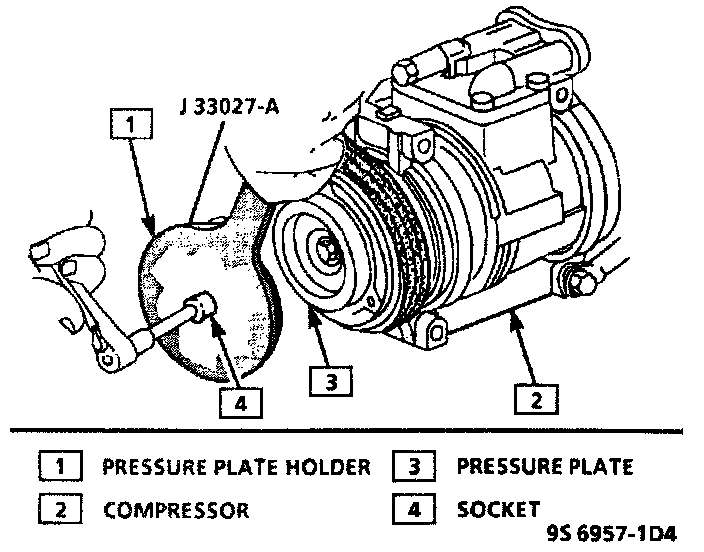

Removing Pressure Plate - Typical:

Shim Replacement:

Compressor Assembly:

NOTICE: This procedure may be done "On-Vehicle" for VIN P engine applications. If this procedure is being performed on VIN J engine applications, the compressor must be removed.

Remove or Disconnect

1. Rotor.
2. Stator lead wire from compressor housing.
3. Retaining ring securing stator.
4. Stator.

Install or Connect

1. Stator.
2. Retaining ring to secure stator.
3. Stator lead wire to compressor housing.
4. Rotor.
