Vacuum and Vapor Hose Diagrams
>>
Manual Air Conditioning
Manual Air Conditioning

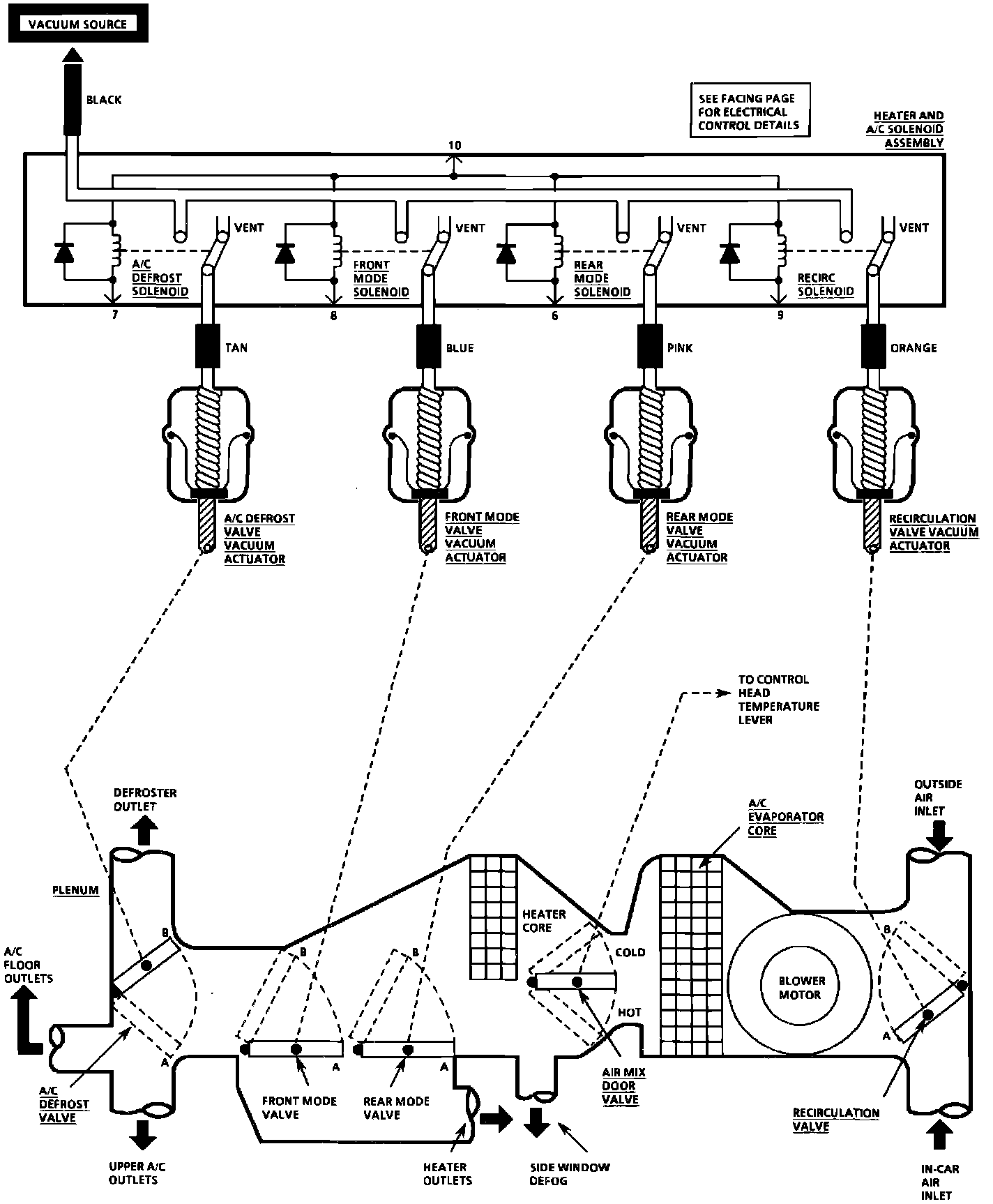

Air Conditioning: Air Delivery And Temperature Control (Manual):
