Home
>>
Chevrolet
>>
1992
>>
Corvette V8-350 5.7L
>>
Repair and Diagnosis
>>
Instrument Panel, Gauges and Warning Indicators
>>
Diagrams
>>
Electrical Diagrams
>>

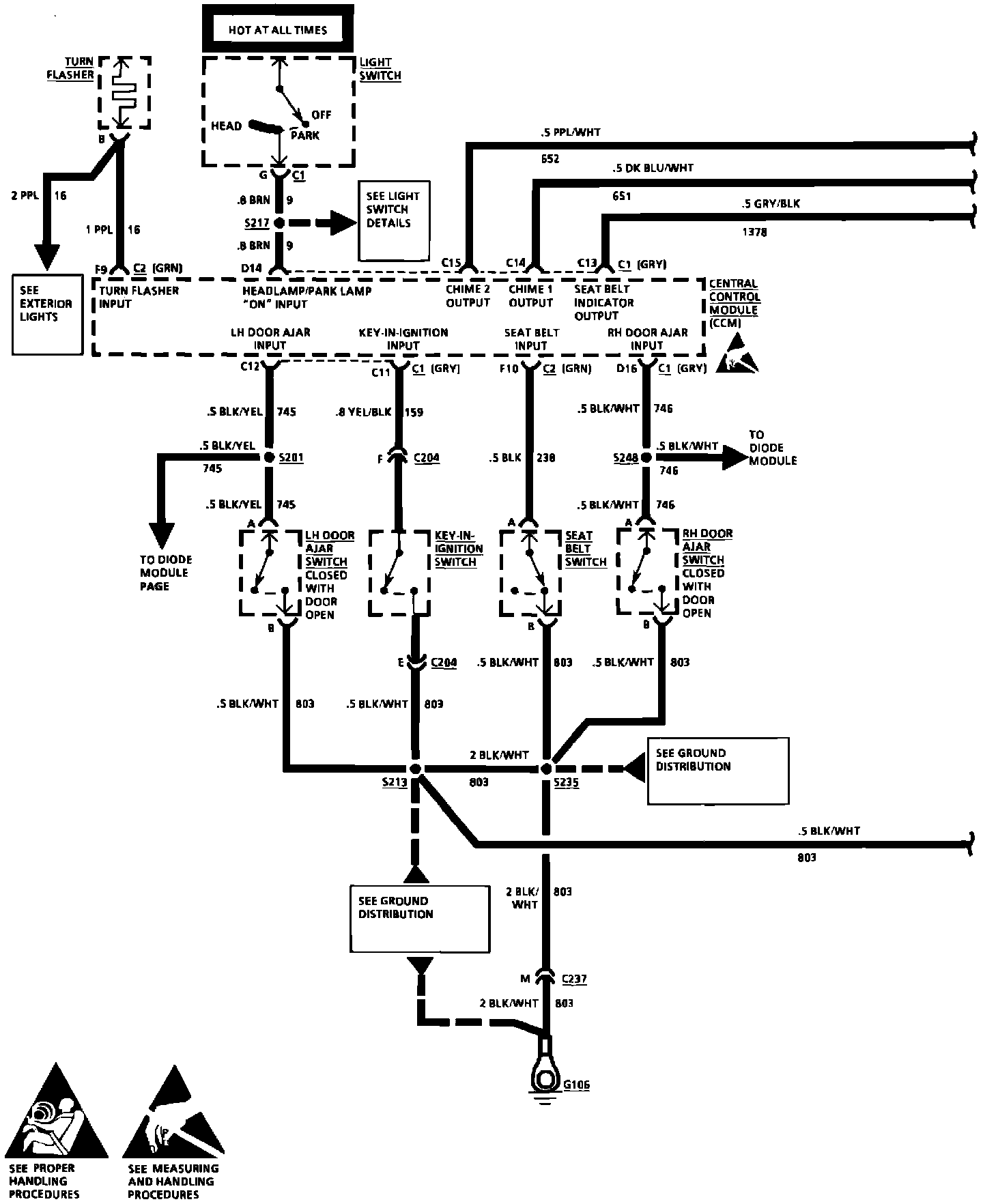

Warning Lights/Chimes
Warning Lights/Chimes

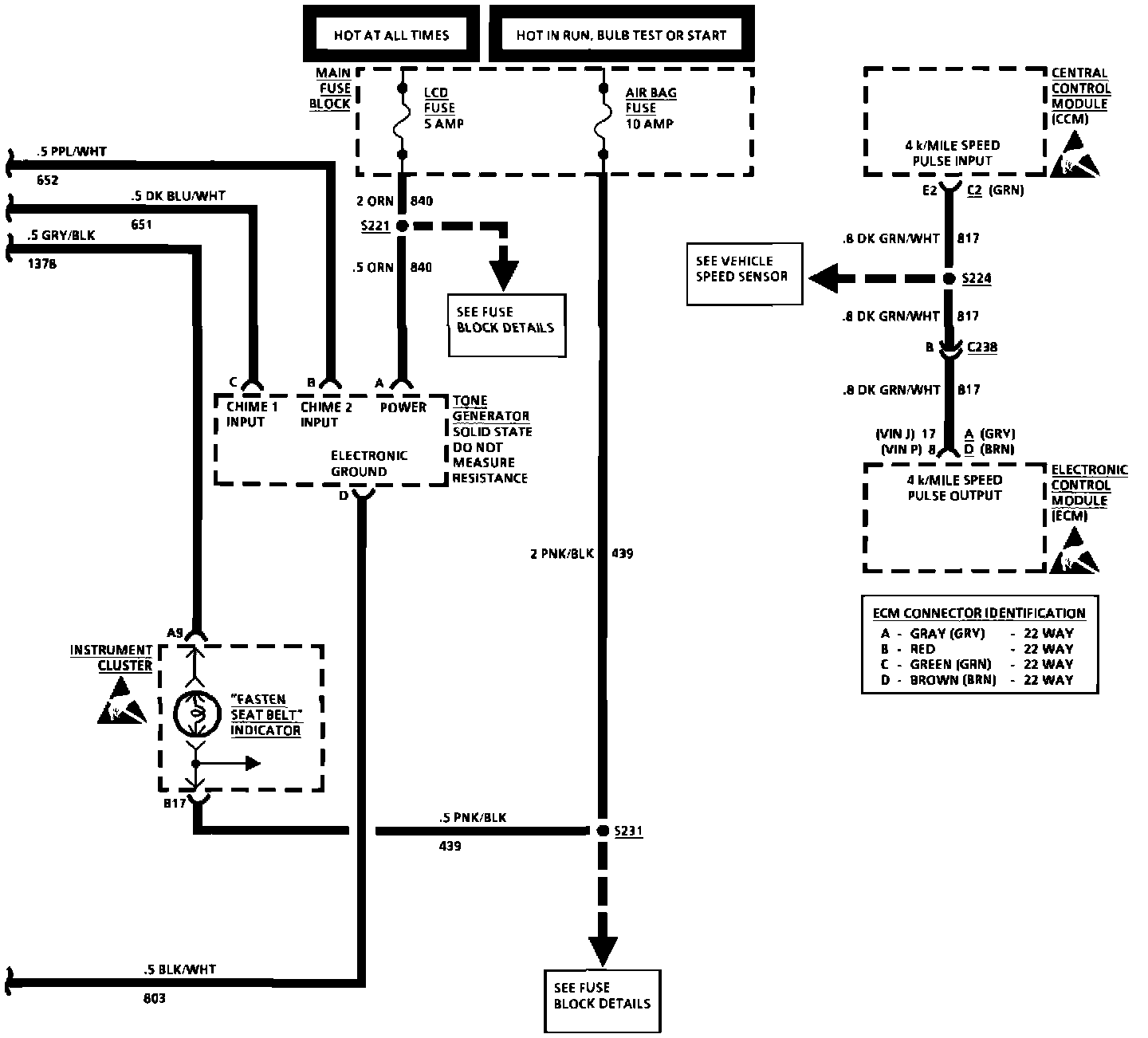

Warnings And Alarms: Tone Generator:
Warnings And Alarms: Tone Generator:
