Operation CHARM
: Car repair manuals for everyone.
Home
>>
Chevrolet
>>
1992
>>
Corvette V8-350 5.7L
>>
Repair and Diagnosis
>>
Lighting and Horns
>>
Diagrams
>>
Electrical Diagrams
>>
Incandescent Lamps
Incandescent Lamps

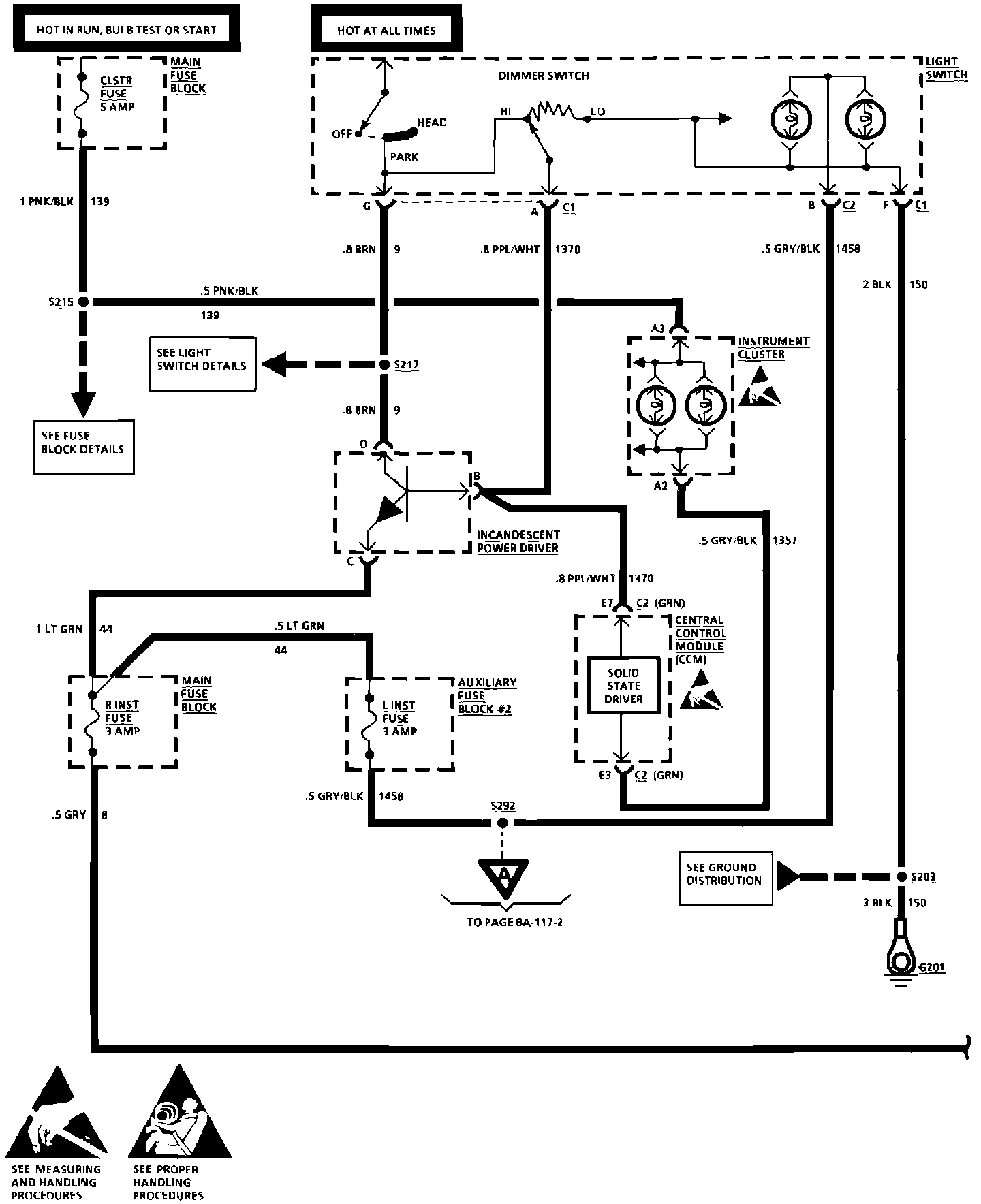

Interior Lights Dimming (Incandescent Panel Lamps):

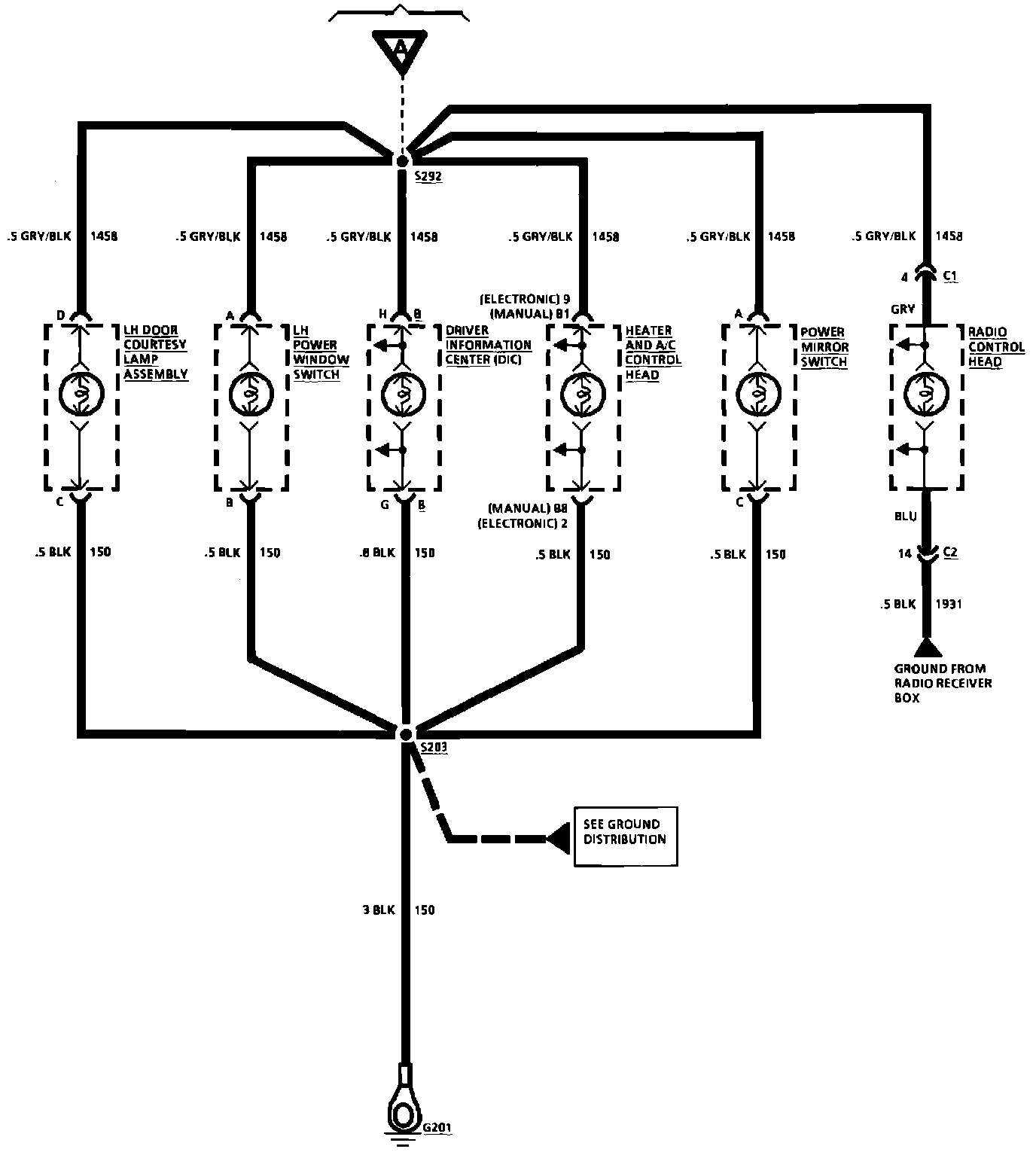

Interior Lights Dimming (Incandescent Panel Lamps):

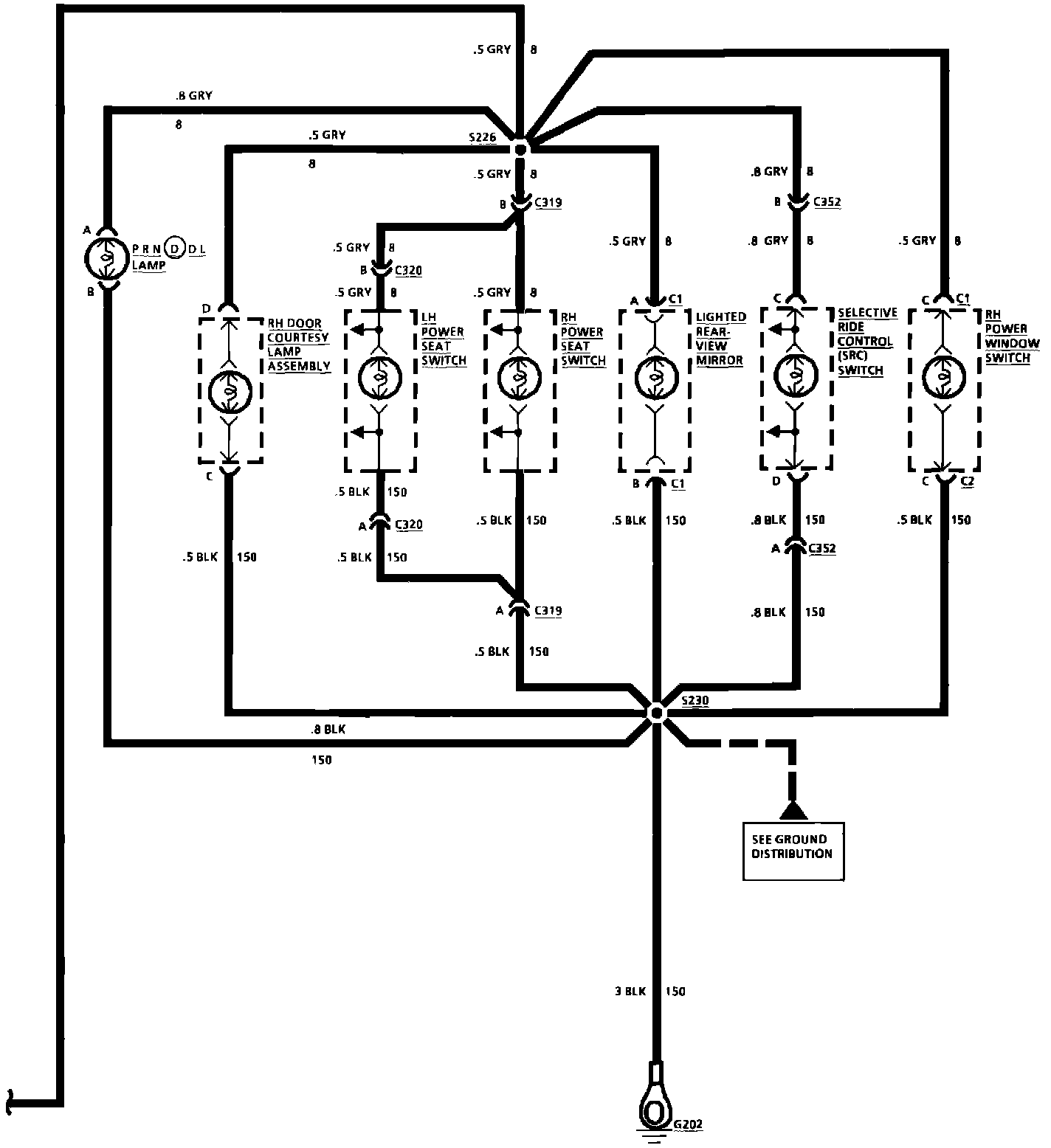

Interior Lights Dimming (Incandescent Panel Lamps):
