Home
>>
Chevrolet
>>
1992
>>
Corvette V8-350 5.7L
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Diagrams
>>
Electrical Diagrams
>>

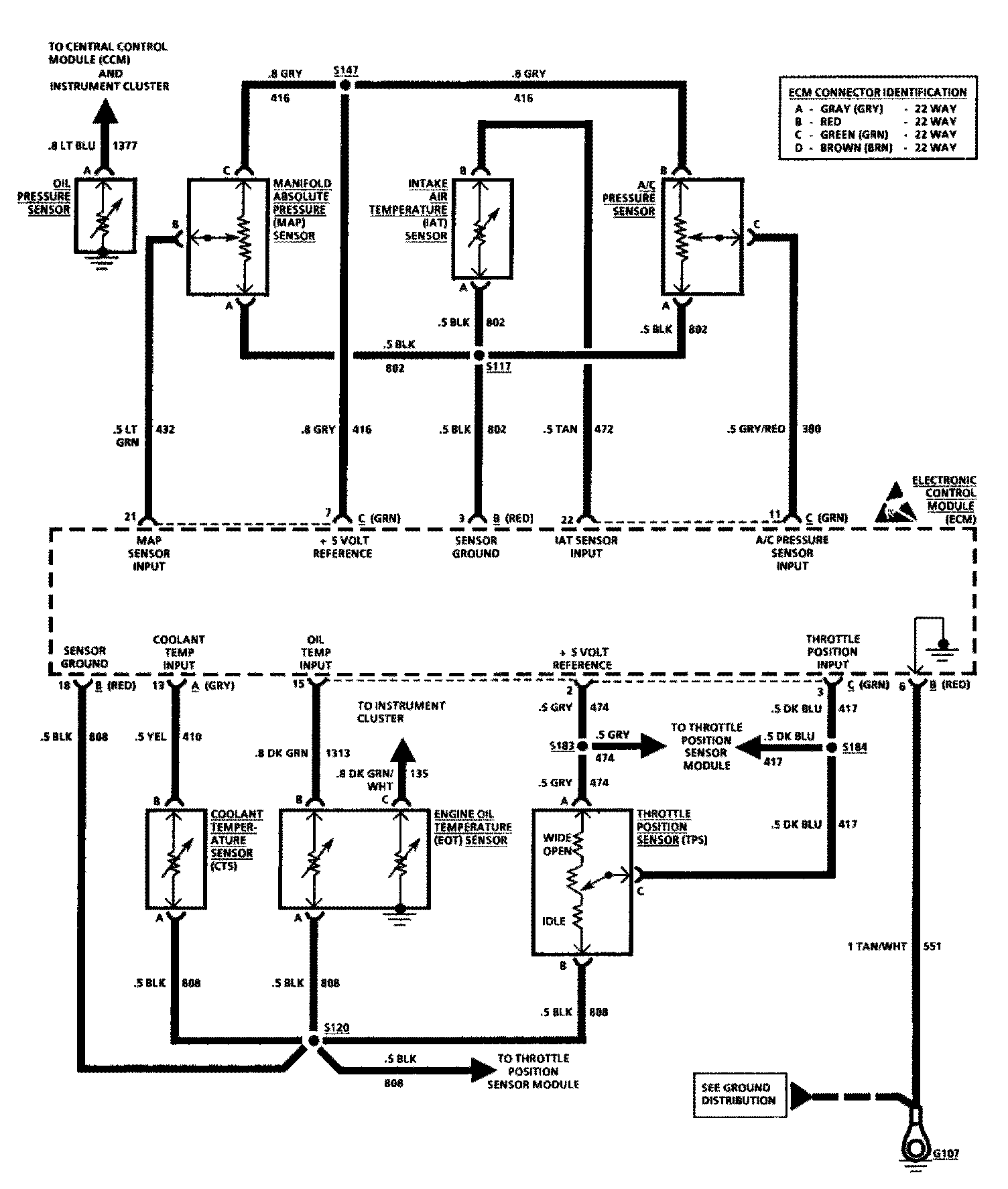

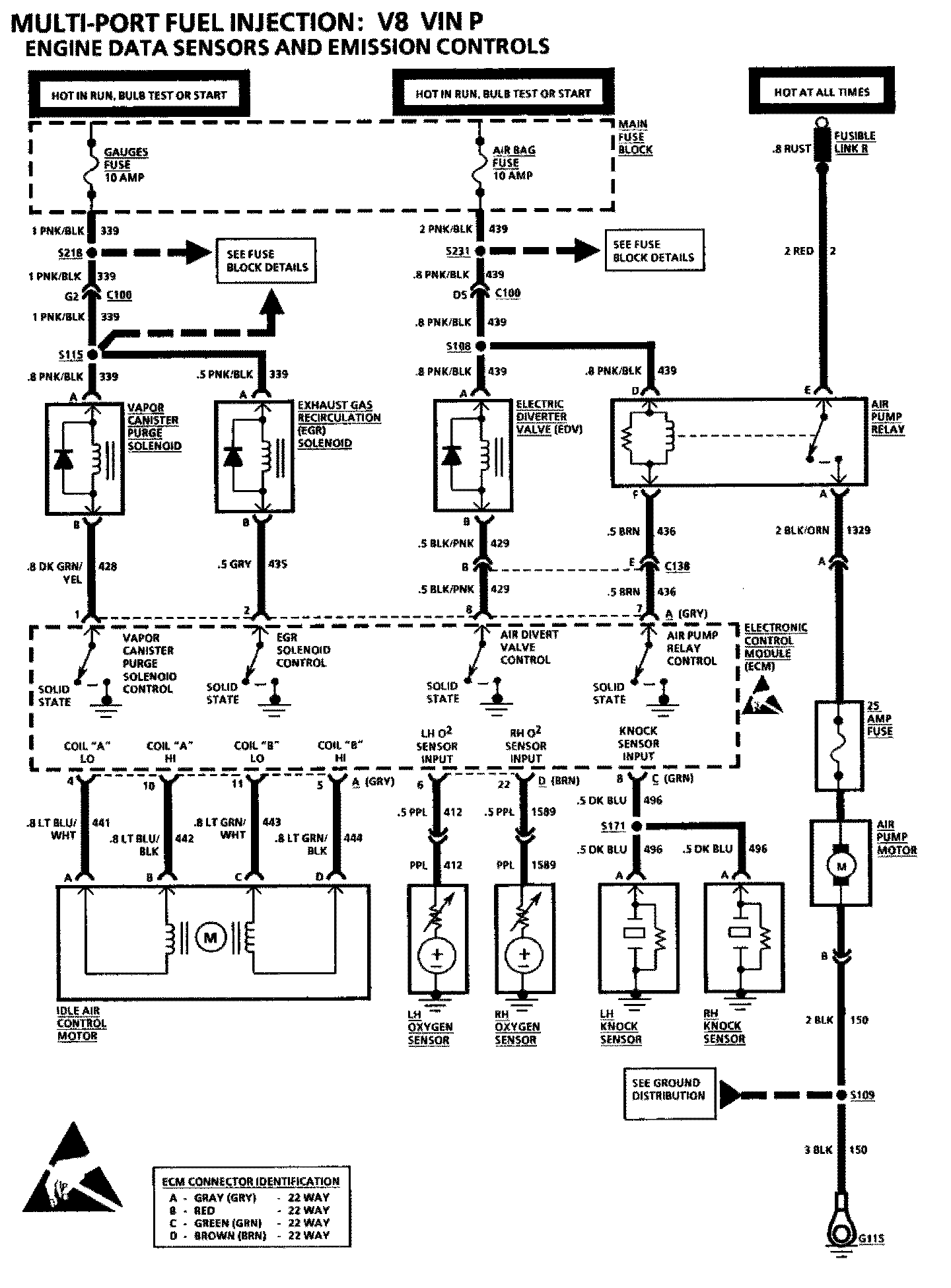

Engine Data Sensors & Emissions Controls
Engine Data Sensors & Emissions Controls
Engine Data Sensors & Emissions Controls
