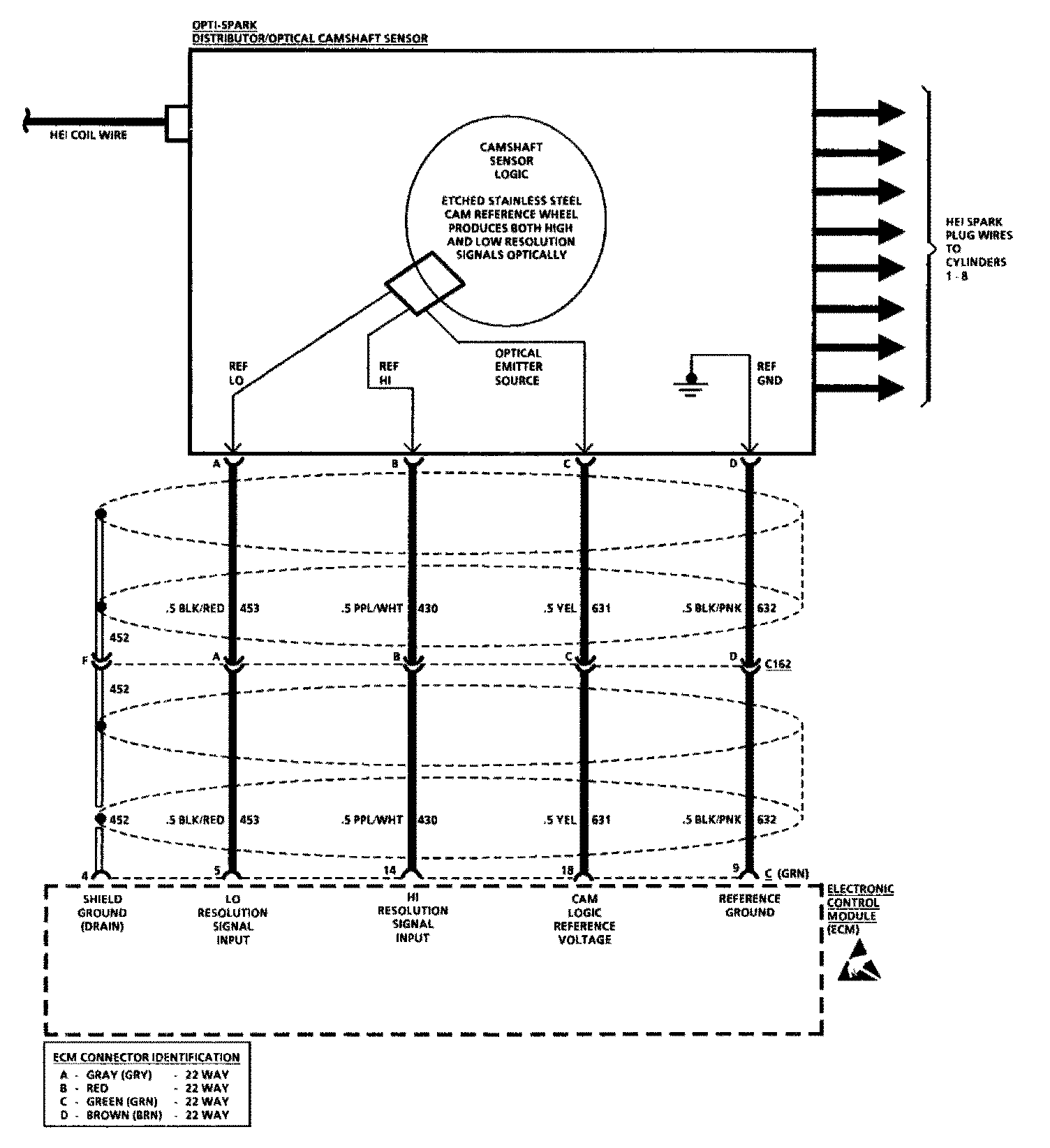

Opti-Spark Ignition and "Service Soon" Indicator
Opti-Spark Ignition and "Service Soon" Indicator
Opti-Spark Ignition and "Service Soon" Indicator
