Fuel Control, Idle Air Control (IAC) & Vehicle Speed Sensors
Fuel Control, Idle Air Control (IAC) & Vehicle Speed Sensors

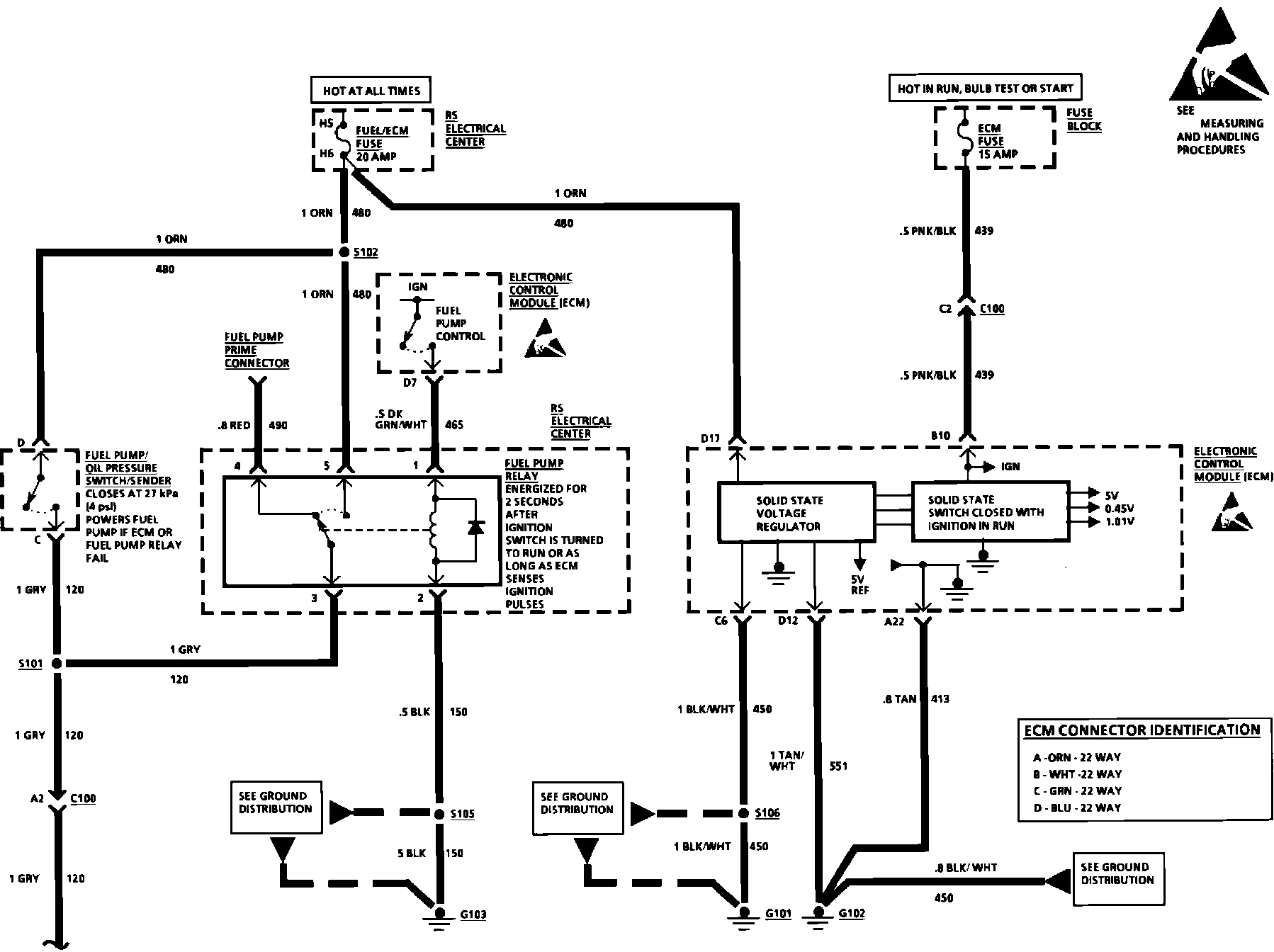

Electronic Fuel Injection: Idle Air Control, Fuel Control And Vehicle Speed Sensors:

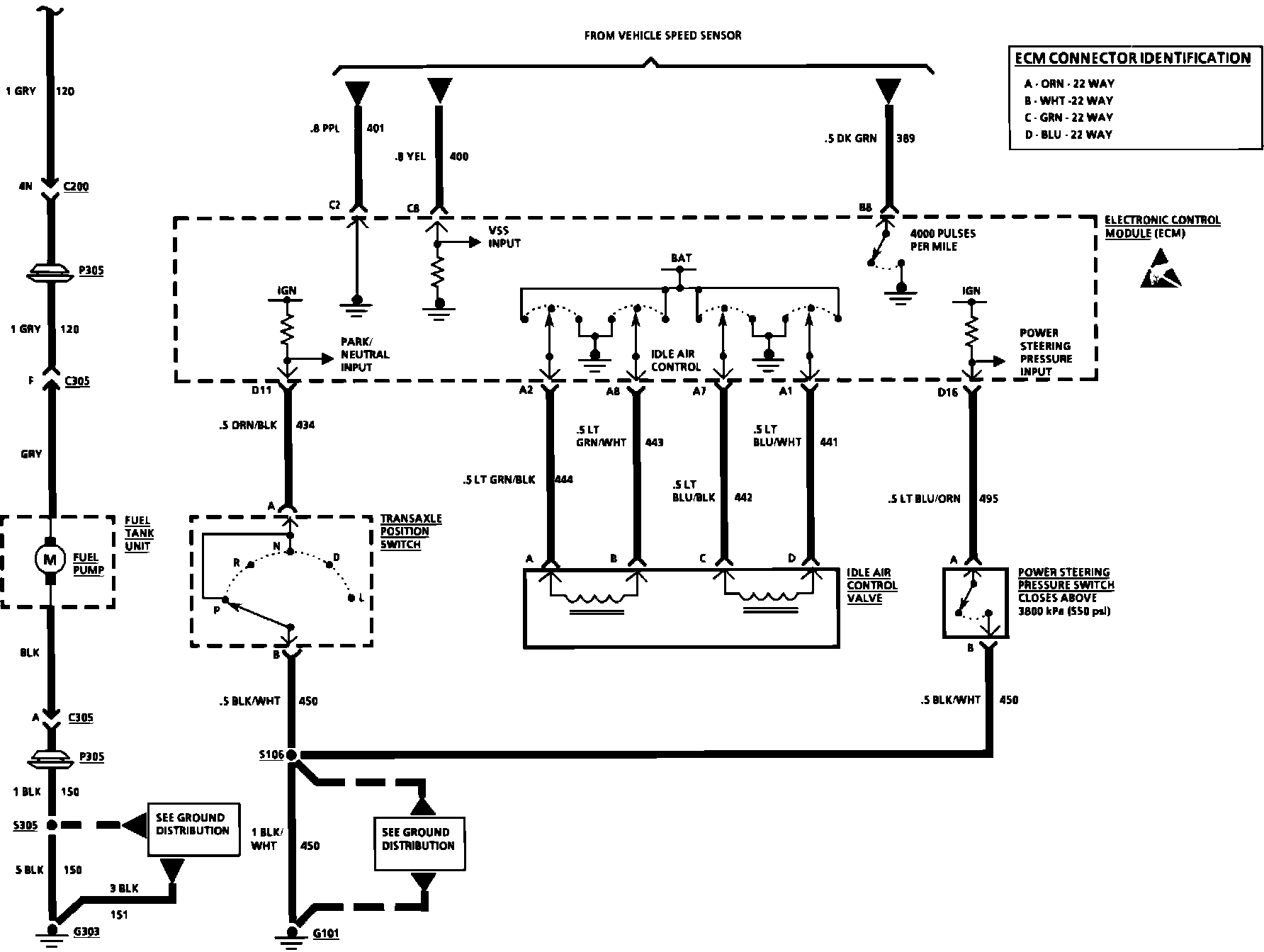

Electronic Fuel Injection: Idle Air Control, Fuel Control And Vehicle Speed Sensors:
