Tail Lamp

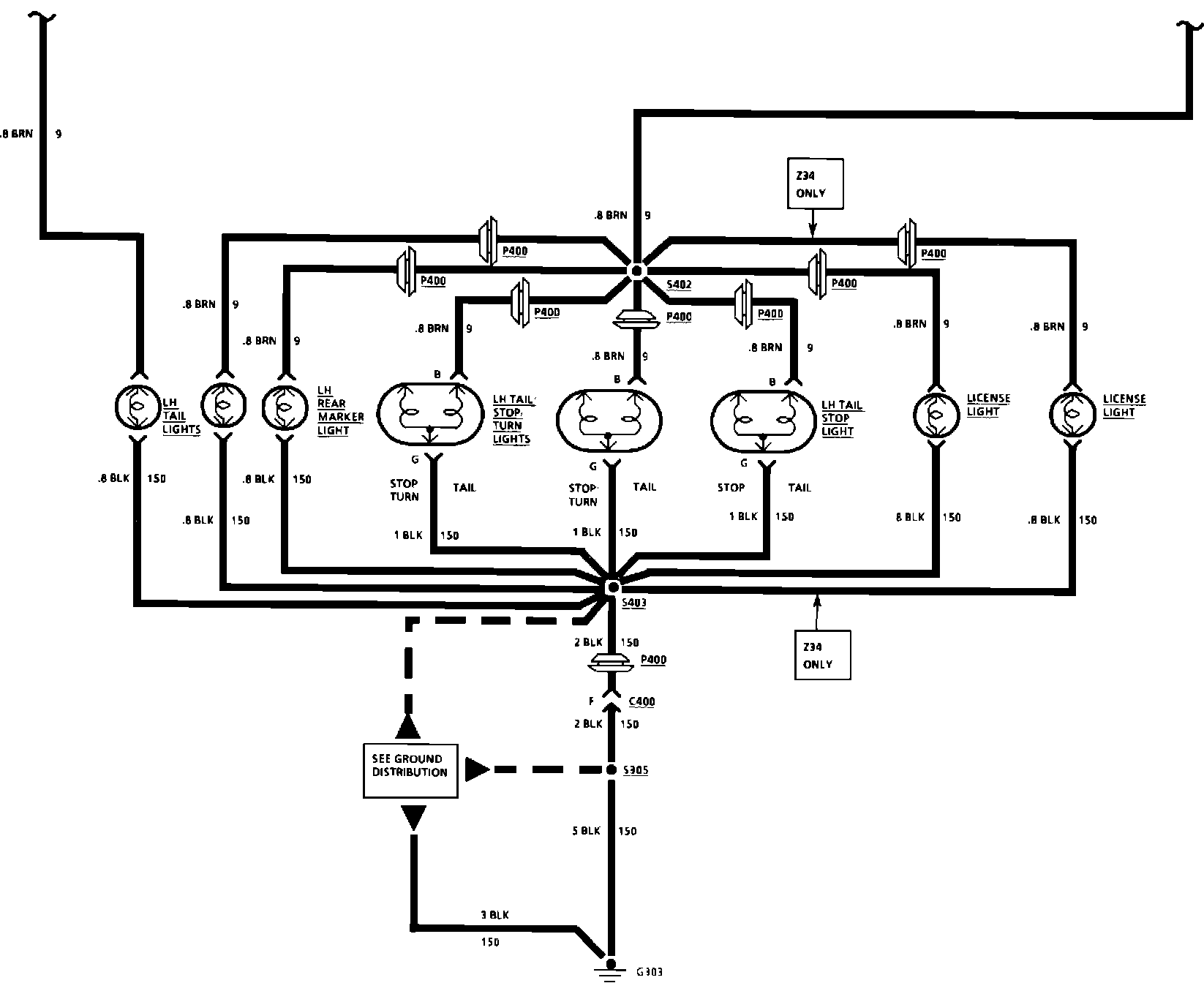

Exterior Lights: Tail, Rear Marker And License Lights:

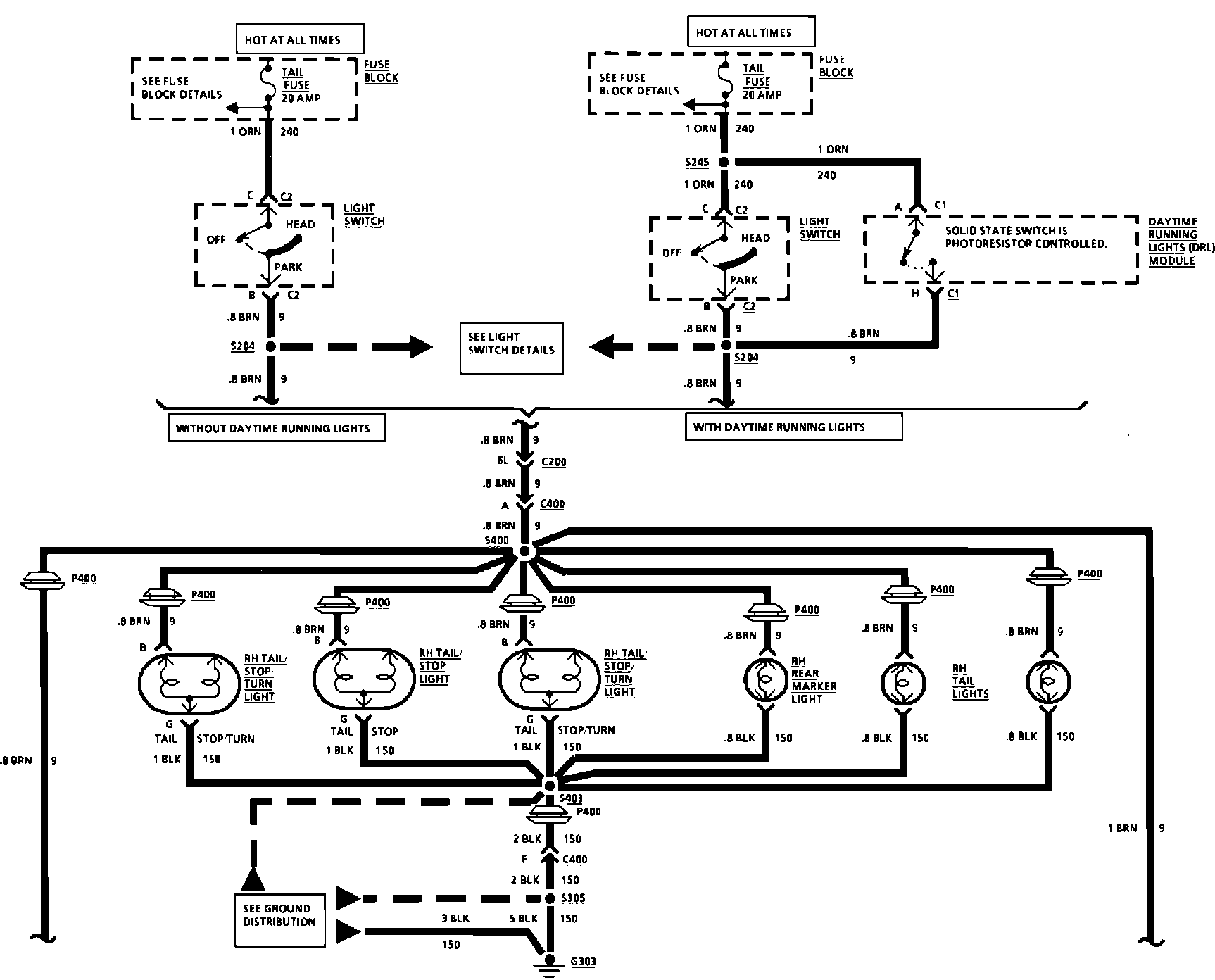

Exterior Lights: Tail, Rear Marker And License Lights:
