Home
>>
Chevrolet
>>
1992
>>
Lumina V6-191 3.1L
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Diagrams
>>
Electrical Diagrams
>>
Fuel Control & Fuel Injectors
Fuel Control & Fuel Injectors

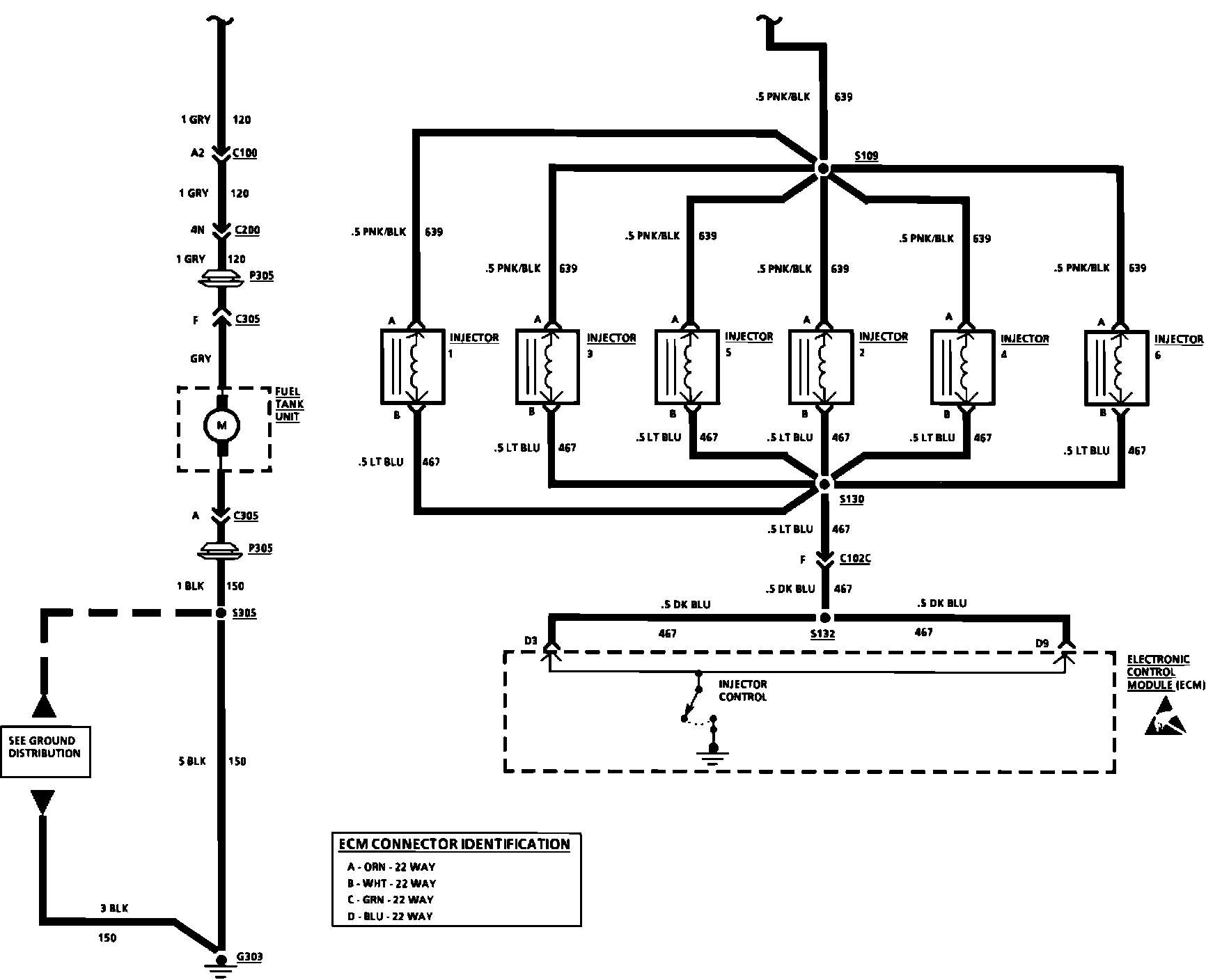

MPI: Fuel Injector And Fuel Control:
MPI: Fuel Injector And Fuel Control:
